Silk NH300 Colorimeter Portable Colour Measurement Equipment For Powder Flour Whiteness Yellowness Test
Product Details
| Model: | NH300 | Locating: | Illumination Locating |
|---|---|---|---|
| Calibration: | Manual | Accuracy: | Delta E <0.07 |
| Light Source: | D65 | Color Space: | Lab XYZ |
| Highlight |
colour difference meter,paint color analyzer |
||
Product Description
Cheap Silk NH300 colorimeter portable color measurement ( LAB scale ) system for powder flour whiteness yellowness test
Silk. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
After years of intensive research.Silk has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory.
We can provide customization service which has been well received by customers. Silk cherishes talents, focuses on talents.
1.Aperture:8mm
2.Accuracy:0.07
3.Illuminant:D65
4.CQCS3 software
NH300 colorimeter, easy to use and cost-effective, widely used in R&D, quality control and production management department, can measure color difference accurately and quickly. NH300 colorimeter is equipment with quality control management software which can connect the computer to realize more fuction.
Application :
It's used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.
Features:
1. Leading Humanity Design and Convenient Operatio
2. Stable Measurement Performance
3. Convenient and Fast Locating
4. PC Software—Realize More Function Expansion
5. Advanced Power Management Design
Specification :
Illuminating geometry: 8/d (8°illumination angle/diffuse viewing)
Measuring Aperture: 8mm
Storage: 100pcs standards 20000pcs samples
Repeatability: Standard deviation within ΔE*ab 0.07;Average of 30 measurements of standard white plate
Errors Between Each Equipment: ≤0.40ΔE*ab
Light source: D65
Lamp Life: 5 years, more than 1.6 million measurements
Data Interface: USB
Temperature Range: -10°Cto 40 °C
Humidity Range: less than 85% relative humidity, no condensation
Weight: 500g
Dimensions: 205 x 70 x 100 mm

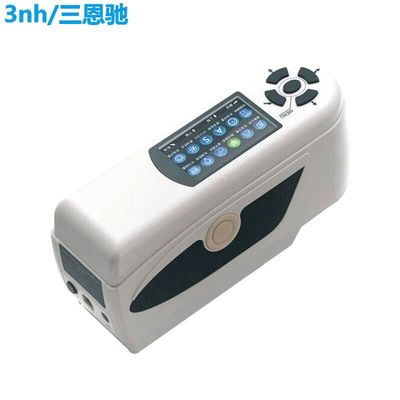

Product Image :
1. When I received NH310/NH300 colorimeter and perform measurement, why the measured data is abnormal?
After receiving NH310/NH300, you have to perform white and black calibration manually when first starting.
2. In which condition, manual white and black calibration and auto calibration are required for NH310?
a. It’s needed to perform manual calibration for NH310 when first starting.
b. In the subsequent starting, NH310 will perform auto calibration at startup. No need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH310 measured data is not accurate.
3. In which condition, manual white and black calibration for NH300 is required?
a. It’s needed to perform manual calibration for NH300 when first starting.
b. In the subsequent starting, no need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH300 measured data is not accurate.
4. How to replace NH310 measuring aperture?
There are three measuring apertures for NH310: Φ8mm (standard accessory), Φ4mm (standard accessory), extended Φ8mm (optional accessory)
a. Turning on
b. Removing measuring aperture, install the needed measuring aperture.
c. Select “Settings-Aperture Setting” in main menu to select corresponding measuring aperture.
d. After selecting aperture, the instrument will display “White and Black Calibration” interface. White and black calibration must be performed.
e. Replace completed.
5. CQCS3 (Color Quality Control System) Installation
a. Before installation, please Copy CQCS3 folder to your computer and don’t remove any files in CQCS3 folder.
b. Double-click the setup.exe to install CQCS3 software.
c. Then double-click Install.bat under the CQCS3USB_Driver file to install the driver.
d. Detailed installation information please read the "Installing Software" under CQCS3 User manual.doc.
| Size | 45*23*38mm |
| Gross weight | 4kg |
| Standard accessory | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional accessory | micro printer,powder test box, universal test components, |
We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.
Customer confirmation :
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
Waiting for you inquiry. Any more questions you can contact me directly, I will reply asap.
