TFT 2.8 Inch Display Color Difference Meter Silk NR60CP Precision Color Testing
Product Details
| Item: | Paint Color Analyzer | Sensor: | Silicon Photodiode Array |
|---|---|---|---|
| Measuring Aperture: | 8mm Flat Aperture,4mm Tip Aperture | Color Space: | CIE LAB,XYZ,LCH,CIE RGB, CIELUV |
| Illuminant: | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 | Dimension: | 205*67*80mm |
| Highlight |
colour difference meter,paint color analyzer |
||
Product Description

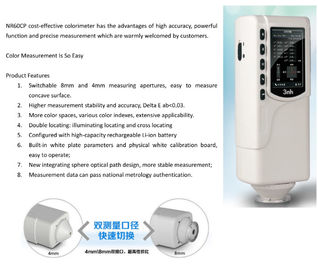

Silk NR60CP precision color testing portable colorimeter
Brief Introduction:
NR60CP colorimeter is high cost-effective precise colorimeter features with powerful functions and excellent innovation technology. Which is featured with : a. 8mm and 4mm double aperture for switch,easy to measure concave sample in large plane; b. more stable and accuracy, Delta E ab < 0.03; c. Many color spaces,many color indexes, extensive applicability; d. Double locating: illuminating locating and cross locating; e. Equippped with rechargeable high-capacity li-ion battery; f. Built-in white plate parameters, and configuration of physical whiteboard, easy to operate; g. New integrating sphere optical path design, more suitable to measure; h. Double apertures measurement data can pass SCM metrological certification.
Features :
- 8mm and 4mm double aperture for switch, easy to measure concave sample in large plane
- More stable and accuracy, Delta E ab<0.03
- Many color spaces, many color indexes, extensive applicability
- Double locating: illuminating locating and cross locating
- Equipped with rechargeable high-capacity li-ion battery
- Built-in white plate parameters, and configuration of physical whiteboard, easy to operate;
- New integrating sphere optical path design, more stable to measure;
- Double apertures measurement data can pass SCM metrological certification;
Specification :
| Model | NR60CP |
| Illuminating/Viewing Geometry | 8° / d; CI E No. 15,GB/ T 3978 |
| Light Source | LED sources |
| Sensor | Silicon photodiode array |
| Measuring Aperture | Φ8mm large area end-face; Φ4mm small area concave-convex end-face |
| Color Space | CI E L AB,XYZ,LCh,CI E RGB,CI E LUV |
| Other Chromaticity Data | WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925, 313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I |
| Observer | CI E 10° |
| Illuminant | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 |
| Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
| Measurement Time | 0. 4s |
| Repeatability | ΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s) |
| Errors between each instrument | within Delta E*ab 0.2 |
| Dimension | (L*W*H)205*67*80mm |
| Weight | 500g |
| Battery | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 2.8 inch(16: 9) |
| Interface | USB/RS-232 |
| Data Memory | 100 Standards, 20000 Samples |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Optional Accessory | miniature thermal printer, powder test box |
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
