High Precision 3nh Spectrophotometer , 45/0 Color Testing Portable Colorimeter YS4560
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Technical Parameter Items | YS4560 Portable Color Measurement Spectrophotometer | Roduct Category | Optical Electronic Color Measurement Instrument |
|---|---|---|---|
| Optical Geometry | 45°/0 | Measuring Apertures | Two Apertures: ∅10mm/∅8mm + ∅6mm/∅4mm |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLab, S-RGB, βxy | Color Difference Formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter) |
| Repeatability Error | ΔE*Lab≤0.03 | Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined LED Lamps, UV Lamps | Illuminants | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), UV. |
| High Light | hunter lab spectrophotometer,color measurement instruments |
||
Product Description

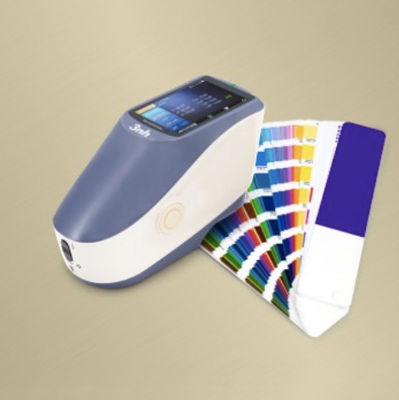

45/0 High precision color testing portable colorimeter 3NH YS4560 spectrophotometer
YS4560Advanced Spectrophotometeruses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometryto accurately measure sample reflectance and various colorimetric data; The instrument is equipped with 8, 4mm double measuring aperture, used for traffic signs and accurate color measurement and quality control in various industries.It has a separate UV source for fluorescence sample measurements.
PRODUCT DETAILS
YS4560 Advanced Spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; The instrument is equipped with Φ8, Φ4mm double measuring aperture, used for traffic signs and accurate color measurement and quality control in various industries. It has a separate UV source for fluorescence sample measurements.
PRODUCT FEATURES
1. Beautiful appearance and perfect combination with ergonomic structure design;
2. 45/0 geometrical optics, conforms with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833;
3. Adopt high-life and low-power combined LED light source, including UV/excluding UV;
4. Optional aperture2mm/4mm/8mm/20mm,adapt to more samples to be tested;
5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6. High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
7. USB port, widely useful;
8. Super stain-resistant and stable standard white calibration plate;
9. Large capacity storage space, over 30,000 measurement data;
10. Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
11. PC software has a powerful function extension.
12. Built-in standard polygon tolerance setting and specific traffic sign gamut, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates;
| Technical Parameter Items | YS4560 Portable Color Measurement Spectrophotometer |
| Product Category | Optical Electronic Color Measurement Instrument |
| Product Name | Portable Spectrophotometer |
| Optical Geometry | 45°/0 |
| Measuring Apertures | Two Apertures: ∅10mm/∅8mm + ∅6mm/∅4mm |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLab, s-RGB, βxy |
| Color Difference Formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter) |
| Repeatability Error | ΔE*Lab≤0.03 |
| Inter-instrument Error | ΔE*Lab≤0.15 |
| Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Quadrangle Chromaticity Tolerance. |
| Information Displayed | Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction |
| Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined LED Lamps, UV Lamps |
| Lamps Life-span | 5 Years, more than 3 Million times of measurements. |
| Wavelength Range | 400nm - 700nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0∼200% |
| Illuminants | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), UV. |
| UV Light Source | Yes. Include UV / Exclude UV. |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Spectroscope | Concave Grating |
| Location Method | Camera Location |
| Measurement Time | 1.5s |
| Data Storage Capacity | 1000 pcs of Standards, 30000 pcs of Samples. |
| Data Transmission Port | USB + Bluetooth 4.0 |
| PC Terminal Software | SQCX (for free) |
| Display Screen | 3.5 inches TFT Capacitance Screen-touch Display |
| Language Built-in | English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify) |
| Power Supply | Built-in Rechargeable Battery, Power Adapter |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | White and Black Calibration Board, Φ4mm, Φ8mm Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide. |
| Optional Accessories | Mini Thermal Printer, Powder Test Box, Universal Test Component |
| Weight | 600g |
| Dimension | 184*77*105mm |
Application Introduction
YS4560 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS4560 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Frequently Asked Questions
1. Which models are the equivalent models to YS4560?
Answer: BYK 6801.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
