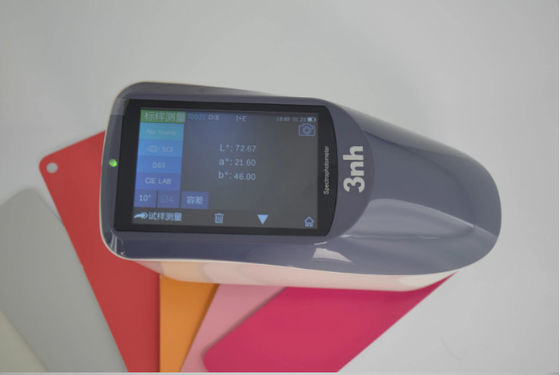

YS4560 Byk 3nh Spectrophotometer 6834 45/0 400-700nm 4mm 8mm Chroma Meter Two Apertures
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Technical Parameter Items||YS4560 Portable Color Measurement Spectrophotometer||Roduct Category||Optical Electronic Color Measurement Instrument|
|Optical Geometry||45°/0||Measuring Apertures||Two Apertures: ∅10mm/∅8mm + ∅6mm/∅4mm|
|Color Spaces||CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLab, S-RGB, βxy||Color Difference Formulas||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter)|
|Repeatability Error||ΔE*Lab≤0.03||Viewing Angle||2° & 10°|
|Illuminating Lamps||Combined LED Lamps, UV Lamps||Illuminants||D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), UV.|
hunter lab spectrophotometer,
color measurement instruments
3nh YS4560 byk spectrophotometer 6834 45/0 400-700nm 4mm 8mm chroma meter
1. Product Profile
a. Spectrophotometer YS4560 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
b. YS4560 features the precise measurement and the complete functions.
c. It is configured with 8mm or 4mm or 2mm aperture optional. The 4mm or 2mm aperture is for the color measurement of small targets.
d. Configured with UV light source, YS4560 can be used to measure the color of the targets with fluorescent material.
e. The PC terminal software SQCX provides powerful data management functions.
f. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
g. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
h. YS4560 can be connected to a computer via USB cable or Bluetooth to do data management.
i. A built-in camera to help to aim the targets to be measured.
|Technical Parameter Items||YS4560 Portable Color Measurement Spectrophotometer|
|Product Category||Optical Electronic Color Measurement Instrument|
|Product Name||Portable Spectrophotometer|
|Measuring Apertures||Two Apertures: ∅10mm/∅8mm + ∅6mm/∅4mm|
|Color Spaces||CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLab, s-RGB, βxy|
|Color Difference Formulas||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter)|
|Other Colorimetric Index||
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength,
Opacity, Quadrangle Chromaticity Tolerance.
|Information Displayed||Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction|
|Viewing Angle||2° & 10°|
|Illuminating Lamps||Combined LED Lamps, UV Lamps|
|Lamps Life-span||5 Years, more than 3 Million times of measurements.|
|Wavelength Range||400nm - 700nm|
|Illuminants||D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), UV.|
|UV Light Source||Yes. Include UV / Exclude UV.|
|Sensor||256 Image Element Double Array CMOS Image Sensor|
|Location Method||Camera Location|
|Data Storage Capacity||1000 pcs of Standards, 30000 pcs of Samples.|
|Data Transmission Port||USB + Bluetooth 4.0|
|PC Terminal Software||SQCX (for free)|
|Display Screen||3.5 inches TFT Capacitance Screen-touch Display|
|Language Built-in||English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify)|
|Power Supply||Built-in Rechargeable Battery, Power Adapter|
|Working Environment||Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)|
|Storage Environment||Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)|
|Standard Accessories||White and Black Calibration Board, Φ4mm, Φ8mm Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide.|
|Optional Accessories||Mini Thermal Printer, Powder Test Box, Universal Test Component|
3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive colorimetric indexes in one screen, making your operation more convenient and freer, checking color spectrum reflectance rate data and graph very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it more sensitive to colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. It supports the Quadrangle Chromaticity Tolerance.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.
3.9. Two measuring apertures: ∅4mm and ∅8mm, perfectly measure the color of different kinds of targets from small one to big one.
3.10. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.
3.11. Include all kinds of light source types, can be applied to all the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.15. USB and Bluetooth4.0, implement data transmission more convenient and prompt.
3.16. Built-in camera for aiming at the target to be measured precisely, very effcient in measuring small spot colors.
3.17. If configured with a Powder Test Box, it can measure the color of powders; if configured with a Universal Test Component, it can measure the color of powders, liquids and pastes.
4. Application Introduction
YS4560 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS4560 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
5. Frequently Asked Questions
1. Which models are the equivalent models to YS4560?
Answer: BYK 6801.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
