YG268-3NH Multi Angle Glossmeter High Accuracy Stone Marble Gloss Measurement
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | YG268 | Measuring Angle | 20 60 85 |
|---|---|---|---|
| Division Value | 0.1GU | Measuring Range | 0-2000GU |
| Weight | 300g | Measuring Time | 0.5s |
| Language | Chinese And English | Software | GQC6 |
| High Light | paint gloss meter,60 degree gloss meter |
||
Product Description

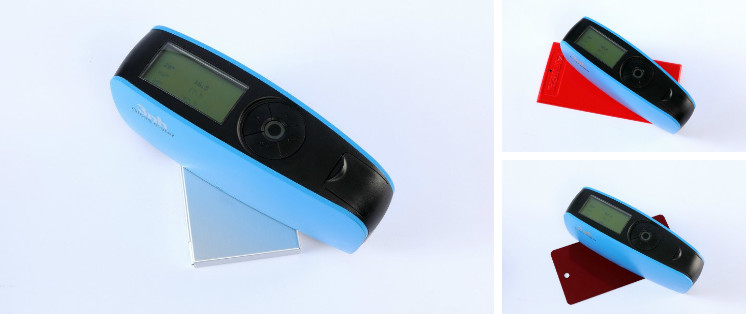

YG268-3NH Auto-calibration Stone Marble Gloss Measurement Multi Angle Glossmeter
The YG268 Tri-angle Gloss Meter is manufactured according to international standard ISO2813 and China standard GB/T 9754. It's applicable to 98% of the industry in the market.It has four measurement modes: basic mode, quality control mode, statistical mode and continuous mode.
It's also a variety of measurement angles, freely switch and with auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
| Model | YG268 | Brand | 3nh |
| Measurement Angle | 20°/60°/85° | ||
| Measurement Standard | ISO2813,ASTM 523,GB/T9754,JJG696 first class | ||
| Measuring Area (mm) | 20°: 9x10 60°: 9x15 85°: 5x38 | ||
| Battery | 1pc dry-cell battery(can measure 10000 times) or
use USB Charge
|
Measuring Time | 0.5 s |
| Dimension | 160*52*84mm | Weight | 300(g) |
| Storage | Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000 | ||

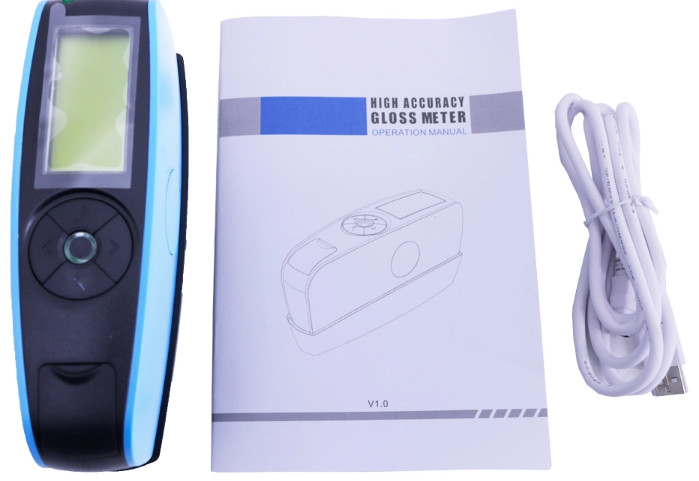

| Standard Accessories | USB cable, user manual, calibration plate, QC software | Optional Accessories | Miniature Printer |
Product Features:
Meet a number of industry standards
●Meet the first grade requirements of JJG696
●Comply to ISO2813,ASTM523, GB/T9754
Multi-angle, to meet a variety of material measurement
20°: High gloss paint (cars), plastics, varnish, sheet, paper and metal
60°: Universal for paints, printing ink, varnish, metal, anodized aluminum, plastics and ceramics
85°: Matt paint and surfaceMatt paint and surfaces in aviation, military, furniture and automobile interiors Technical Parameters.
Powerful hardware and software support
● Elegant Design combined with aesthetics and ergonomics
● With auto-calibration function
● Large storage to save over 35000 data
● With PC software for quality report, more extend functions
Application:
The gloss meter is useful for printing ink, paint, bake lacquer, coating, plastic, sheet and woodwork. And the construction decoration materials: marble; granite; glass chemical polishing brick and pottery brick.
Related Machine:
| Model | YG268 Tri-angle | YG60 60° Accurate | YG60°S Economic |
| Measuring Angle | 20°/60°/85° | 60° | 60° |
| Measuring Area(mm) | 20°: 9*10
60°: 9*15
85°: 5*38
|
60°: 9*15 | 60°: 9*15 |
| Measuring Range | 20°: 0~2000 GU
60°: 0~1000 GU
85°: 0~160 GU |
60°: 0~1000 GU | 60°: 0~200GU |
| Division Value | 0.1 GU | 0.1 GU | 1 GU |
| Measuring Time | 0.5S | 0.5S | 0.5S |
| Repeatalibity | 0~100 GU: ±0.2 GU
100~2000 GU: ±0.2 GU
|
0~100 GU: ±0.2 GU
100~1000 GU: ±0.2 GU
|
0~100 GU: ±0.5 GU
100~200 GU: ±0.5 GU
|
| Accurate | Conform with JJG696 first grade requirements of gloss meter | ||
| Auto Power-off Time | within 30s~120s | 30s | |
| Long-time Calibration | Automatically check and made the calibration | ||
| Language | Chinese and English | ||
| Storage | 35000
Basic mode &Statistic mode : 1500
Continuous mode : 10000
QC mode: 10000
|
/ | |
| Display | 2.3 inch white and black screen | ||
| Size | 160*52*84mm | ||
| Weight | About 300g | ||
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | ||
| Interface | USB & Bluetooth 2.1 version | USB | USB |
| PC Software | GQC6 QC software can printing testing report and with more extended functions | / | |
| OperationTemperature | 0-40℃(32-104° F) | ||
| Storage Temperature | -20-50℃(-4-122° F) | ||
| Humidity | < 85% RH, without condensation | ||
| Standard Accessories | USB cable, user manual, calibration plate, QC software | User manual,
Calibration plate
|
|
| Optional Accessories | Miniature printer | ||
