8mm Aperture Portable Spectrophotometer For Coating Plastic Textile 3NH YS3010
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | YS3010 | Light Source | Combined LED Sources |
---|---|---|---|
Sensor | 256 Image Element Double Arrays CMOS Image Sensor | Wavelength Range | 400-700nm |
Measuring Aperture | 8mm | Color Spaces | CIE LAB,XYZ.Yxy,LCh,CIE LUV,Hunter LAB |
Other Chrometric Data | YI,WI,TI,MI,Strength,Staining Fatness,Cover Ratio | Wholesale | Welcome |
Size | 184*77*105(mm) | Weight | About 600g |
High Light | hunter lab spectrophotometer,color measurement instruments |
YS3010 8mm Aperture SCI SCE Integrating Sphere Grating Spectrophotometer
About us:
Shenzhen 3nh Technology Co., Ltd. and Shenzhen TILO Technology Co., Ltd are from the same boss, we work together in one office.
We produced colorimeter, spectrophotometer, color light box and gloss meter, iso 12233 test charts, and we offer OEM service and supply all kinds of custimzed service.
Our products are widely used are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory.
Brief Introduction:
YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.
YS3060 UV Grating Spectrophotometer
Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.
YS3020 Grating Spectrophotometer
Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.
YS3010 Grating Spectrophotometer
4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3010 color spectrophotometer features only 8mm single aperture. Both SCI and SCE mode makes it widely use in many applications. It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
Features:
A.Perfect combination of beautiful appearance and the human body mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source
D.Single 8mm aperture, support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
G.USB port, widely useful;
H.Super stain-resistant and stable standard white calibration plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
l.PC software has a powerful function extension.
Product Application:
Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Quick Details Checking:
Model Items | YS3010 | ||
Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) | ||
Integrating Sphere Size | 48mm | ||
Light Source | Combined LED Light | ||
Spectrophotometric Mode | Concave Grating | ||
Sensor | 256 Image Element Double Array CMOS Image Sensor | ||
Wavelength Range | 400-700nm | ||
Wavelength Interval | 10nm | ||
Semiband Width | 10nm | ||
Measured Reflectance Range | 0-200% | ||
Measuring Aperture | Single Aperture: 8mm/10mm | ||
Specular Component | SCI&SCE | ||
Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB,S-RGB | ||
Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) | ||
Other Colorimetric Index |
WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity |
||
Observer Angle | 2°/10° | ||
Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9F10(TPL5),F11(TL84),F12(TL83/U30) | ||
Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset | ||
Measuring Time | 1.5S | ||
Repeatability |
Spectral reflectance: MAV/SCI, standard deviation within 0.1%(400~ 700nm: within 0.2%) Chromaticity value: MAV/SCI, within△E*ab 0.05(After calibration, measure the average value of the white board 30 times each 5S.) |
||
Inter-instrument agreement |
MAV/SCI, within△E*ab 0.2(Average value for 12 BCRA series II color tiles)
|
||
Measurement Mode | single measurement, average measurement(2-99 times) | ||
Locating Method | Camera View Finder Locating | ||
Battery | Li-ion battery. 5000 measurements within 8 hours | ||
Dimension | L*W*H=184*77*105mm | ||
Weight | 600g | ||
Illuminant Life Span | 5 years, more than 3 million times measurements | ||
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | ||
Data Port | USB | ||
Data Storage | Standard 800 Pcs, Sample 20000 Pcs | ||
Language | English, Chinese | ||
Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | ||
Storage Environment | -20~50℃, 0~85%RH (no condensing) | ||

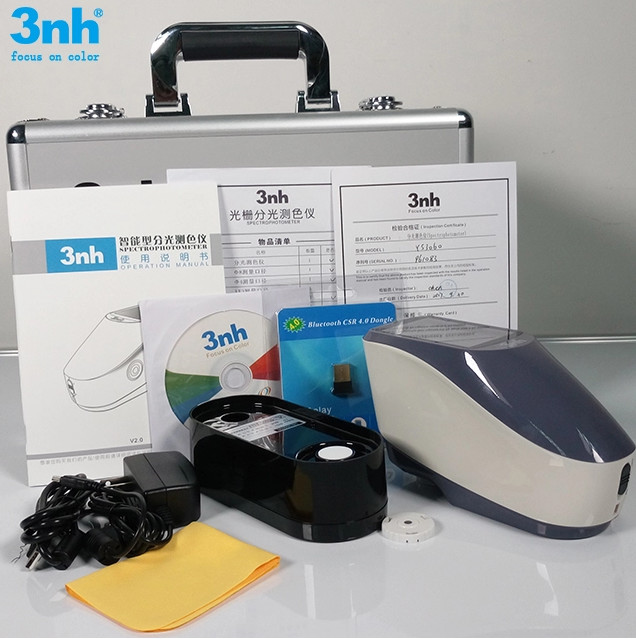

Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover | ||
Optional Accessory | Micro Printer, Powder Test Box | ||
Notes: The specifications are subject to change without notice |
Certification:
Package:
Q: Are you trading company or manufacturer ?
A: We are a professional factory located in Shenzhen city. Welcome to come to visit and purchase from us.
Q: When did you start your company?
A: We start from 1998, and we have 19 years focus on color industry.
Q: How long is your delivery time?
A: Generally it is 1-3 working days if the goods are in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, and customers need to pay for the freight.
Q: What is your terms of payment ?
A: Payment is 100% T/T in advance.
Q: What's your MOQ?
A: Our MOQ is 1 set. If you order more than 5 sets, we could give quantity discount.
Q: What is your warranty?
A: We offer 1 year warranty for all products except consumables.
