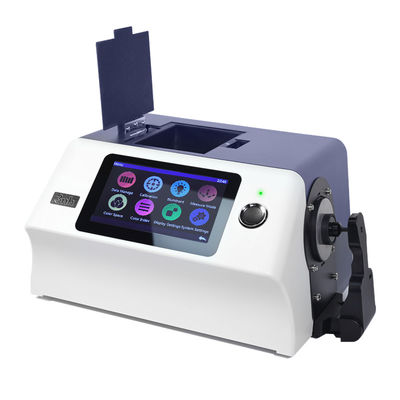

YS6010 Benchtop 3nh Spectrophotometer Color Measurement For Garment Textile Industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | YS6010 | Screen | 7inch TFT Capacitive Touch-screen |
---|---|---|---|
Wavelength | 360nm-780nm | Measure Material | Solid,liquid,powder,paste,etc |
Measure Aperture | 25.4mm/15mm/8mm/4mm | Integrating Sphere Size | 154mm |
Transmissive Sample | Yes | Optical Geometry | D/8 |
Observer Angle | 2 Degree & 8 Degree | Weight | 9.6kg |
High Light | hunter lab spectrophotometer,color measurement instruments |
YS6010 Bench-top Spectrophotometer Color Measurement for Garment Textile Industry 3NH
Brief Introduce:
YS6010 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6010 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6010 ideal for color analysis within R&D and laboratory environments.
Features:
1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.
2, Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED and xenon lamp.
3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.
4, Auto identify measuring aperture. Freely switchable between 3 measuring apertures: Φ 25.4mm/8mm/4mm. Users also can customize apertures.
5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.
6, Wavelength range 360nm – 780nm. Built-in 400nm cut off, more professional in UV measurement.
7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.
8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.
9, Multiple accessories, sample holders, fixation clamp, suitable to more working condition.
10, Big capacity data storage, for 40000 pieces test result.
11, Built-in camera locating.
12, More powerful extended functions at the PC software.
Application Industry
Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Company Info
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
Our Certificates:ISO9001:2008; CE; FCC; ROHS; TUV.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Technical Specification;
Model | Benchtop Spectrophotometer YS6060 | Benchtop Spectrophotometer YS6010 |
Optical Geometry |
Reflective : d/8°(diffused illumination, 8-degree viewing angle);SCI&SCE / SPIN&SPEX;Including / excluding UV measurements Transmissive : d/0°(diffused illumination, 0-degree viewing angle);SCI&SCE / SPIN&SPEX;Including / excluding UV measurements Comply to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
|
Application | It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
Integrating Sphere Size | Φ154mm | |
Light Source | 360~780nm Combined LED Lamp, 400nm Cut-off light source,420nmCut-off light source | 360~780nm Combined LED Lamp, 400nm Cut-off light source |
Wavelength Range | 360~780nm | |
Spectral Separation Device | Concave grating | |
Detector | 256 Image Element Double Array CMOS Image Sensor | |
Wavelength Range | 360~780nm | |
Wavelength Pitch | 10nm | |
Half Bandwidth | 10nm | |
Reflectance Range | 0~200% | |
Measuring Aperture |
Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
|
Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
|
Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | ||
Specular Component | Reflectance: SCI&SCE Transmittance: SCI&SCE | |
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 | |
Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) | |
Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter), Opacity,8° Glossiness, Gardner Index, Pt-Co Index, 555 Index, |
|
Observer Angle | 2°/10° | |
Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 | |
Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset | |
Measuring Time | About 3s (Measure both SCI & SCE about 6s) | |
Repeatability |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) | |
Size | 370×300×200mm(L*W*H) | |
Weight | 9.6kg | |
Power | AC 24V, 2A Power adapter power supply | |
Illuminant Life Span | 5 years, more than 3 million times measurements | |
Display | 7-inch TFT color LCD, Capacitive Touch Screen | |
Data Port | USB & Bluetooth, Print serial port | USB, Print serial port |
Data Storage Capacity |
Standard: 5000 Pcs; Sample: 40000 Pcs. (One PCS can include both SCI and SCE) |
Standard: 2000 Pcs; Sample: 20000 Pcs. (One PCS can include both SCI and SCE) |
Language | English & Chinese | |
Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) | |
Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) | |
Standard Accessory | White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software, Transmissive Test Component | White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software |
Optional Accessory | Micro-printer, | Micro-printer, Transmissive Test Component |
Notes: The specifications are subject to change without notice. |
