USB Data Port 3nh Colorimeter Color Analysis Instrument NR60CP With CIE LAB Delta E

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NR60CP
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 2-5 work days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 8°/d Measuring Aperture Φ8mm & Φ4mm
Repeatibility ΔE*≤0.03 Inter-instrument Agreement ΔE*≤0.2
Data Port USB Storage Capacity 100 Standards & 2000 Samples
High Light

portable spectrophotometer colorimeter

,

digital color meter

Leave a Message
Product Description
Product Description

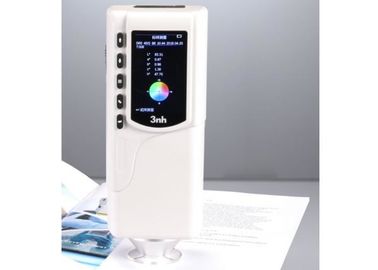

NR60CP Precision Colorimeter



NR60CP precision colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers.



NR60CP precision colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achievemore extension functions.



Precision Colorimeter Product Features


1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, extensive applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration board, easy to operate;
7. New integrating sphere optical path design, more stable measurement;
8. Measurement data can pass national metrology authentication.


Precision Colorimeter Specification Parameters


Illuminating/Viewing Geometry: 8°/ d
Light Source: LED Light
Sensor: silicon photodiode array
Measuring aperture: Φ8mmflat aperture; Φ4mmtip aperture
Color Space: CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Color Difference Formula: ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromaticity Data: WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
Observer: CI E 10°
Illuminant: D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12
Display Data: Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measuring Time: 0. 4s
Repeatability: ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrument: within Delta E*ab 0.2
Dimension: 205*67*80mm
Weight: 500g
Battery: rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life: 5 years, more than 1.6 million measurements
Screen: TFT 2.8 inch(16: 9)
Interface: USB/ RS- 232
Storage: 100 Standards, 20000 Samples
Operating Temperature: 0~40℃(32~104°F)
Storage temperature: -20~50℃(-4~122°F)
PC software: CQCS3 software
Optional accessory: miniature thermal printer, powder test box







































Detailed Images

20200318154619.pngnr 2.jpg

NR 60CP.jpg

Application

3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.


Packaging & Shipping

Package: Alumnium alloy metal box, carton package.

Payment: T/T, Western Union, Paypal

Lead Time:1-3 workdays

Shipping: DHL, Fedex, UPS, EMS,TNT, etc

20200318152549



Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

Company Information

3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
