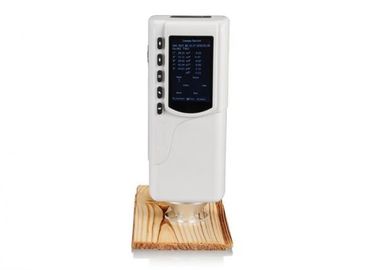

Plastic NR110 Silk Colorimeter , Color Testing Machine 4mm Small Aperture Durable
Product Details
| Measuring Aperture: | Φ4mm | Repeatability: | Within ΔE*ab 0.08 |
|---|---|---|---|
| Illuminating/Viewing Geometry: | 8° / D | Measuring Range: | L: 0 To 100 |
| Illuminant Device: | LED Blue Light Excitation | Storage: | 100 Pcs Standard Samples; 20000 Pcs Test Samples |
| Color Difference Formula: | ΔE*ab; ΔL*ab; ΔE*C*H | Measuring Conditions: | CIE 10° Standard Observer |
| Highlight |
portable spectrophotometer colorimeter,digital color meter |
||
Product Description
Factory Sales Cheap Silk NR110 Colorimter Color Difference Meter with 4mm small aperture and PC software
Instroduction
NR110 colorimeter features its built-in white calibration parameter, no need calibrate every time starting up, and also a simple interface which makes it's very easy to operate. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.
NR110 colorimeter also features its two locating methods: illumination locating and cross locating, which can solve the problem of measuring small spots very well.
Repetitive error is less than 0.08ΔE*ab, inter-instrument error is less than 0.8ΔE*ab, which make its stability and reliability of measurement relatively superior.
NR110 colorimeter is standardly configured with 1 measuring aperture, 1 light source mode, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NR110 can at a certain degree fulfill different kinds of requirements for color measurements in different industries.
NR110 colorimeter also goes with a powerful PC software CQCS3 which includes more extended functions that can enormously facilitate your work.
Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110 Precise Colorimeter )
Feature
1) . Leading Humanity Design and Convenient Operation: One-touch access to measurement interface;
2). Structure design in line with ergonomics
3). Stable Measurement Performance : The repeat-ability ΔE is 0.08.; Portable structure design is more conductive to keeping the instrument stable when using.
4). Convenient and Fast Locating: Illumination locating is a fast, simple and convenient locating
5). PC Software—Realize More Function Expansion: Perform color difference analysis,color difference cumulative analysis,chromaticity index, color sample database management, simulating object color, etc.
6). Advanced Power Management Design: using high capacity Li-ion battery in colorimeter. It can measure more than 3000 times on one charge to ensure the stability of long time measurement.
|
Model
|
NR110 Colorimeter
|
|
Display Mode
|
CIE L*a*b; CIE XYZ;CIE*C*H
|
|
Color Difference Formula
|
ΔE*ab; ΔL*ab; ΔE*C*H
|
|
Illuminating/viewing geometry
|
8/d (8°illumination angle/diffuse viewing)
|
|
Light Source
|
LED blue light excitation
|
|
Detector
|
Silicon photoelectric diode
|
|
Measuring Aperture
|
Φ4mm
|
|
Measuring Conditions
|
Observer: CIE 10° Standard Observer
|
|
Measuring Range
|
L: 0 to 100
|
|
Repeatability
|
Standard deviation within ΔE*ab 0.08
|
|
Storage
|
100 pcs standard samples; 20000 pcs test samples
|
|
Battery Life
|
More than 3000 measurements
|
|
Interface
|
Model B: USB RS-232: Baud rate 19200bps
|
|
Lamp Life
|
more than 1.6 million times in 5 years
|
|
Certificates
|
CE & RoHS & TUV & ISO9001
|
Applications:
|
|
|
| Textile Garment Fabric | PVC Film | Leather |
|
|
|
