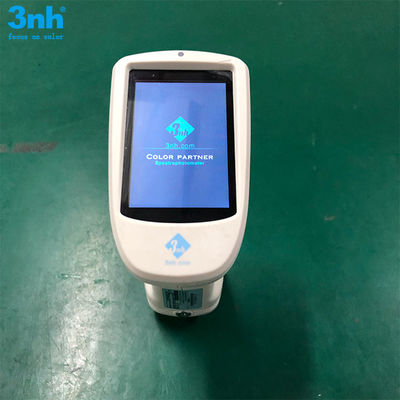

3NH TS7600 Portable Spectrophotometer Car Body Repair Color Test Equipment 3NH With D/8 SCI SCE UV Light
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | D/8° | SCE/SCI | SCE & SCI |
|---|---|---|---|
| UV Light Source | Yes | Repeatibility | ΔE*≤0.04 |
| Inter-instrument Agreement | ΔE*≤0.2 | Measuring Aperture | 8mm Or 4mm |
| High Light | Car Body Repair Color Test Equipment,3NH TS7600 Portable Spectrophotometer,D/8 SCI SCE UV Light Spectrophotometer |
||
Product Description
3NH TS7600 portable spectrophotometer car body repair color test equipment 3NH with d/8 SCI SCE UV light
Ts7x series color test instrument is a high-precision spectrophotometer with independent intellectual property rights independently developed by the company. It is a leader in the field of portable spectrophotometers. It is suitable for precise color transfer and quality control of plastic electronics, chemical coatings, ink printing, textile printing and dyeing, automotive electronics, medical analysis, cosmetics and food analysis, etc. It is also widely used in scientific research institutions, laboratories and other fields.
Under the condition of D / 8 ° geometric optical illumination, the instrument has accurate and stable color measurement, large storage capacity, equipped with USB and Bluetooth dual communication modes, and its PC color management software has powerful extension functions, which can realized accurate measurement and presentation for different color difference formula and color indexes in a variety of color spaces.
Features:
1. D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;
2. Adopt combined LED light source with high life and low power consumption, including UV / excluding UV;
3. Customized one 8mm or 4mm aperture ( the flat/ tip measuring aperture can be switched easily, which is suitable for more tested sample)
4. Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time;
5. Accurate spectrum and lab data, used for color matching and accurate color transmission;
6. High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc;
7. USB interface,convenient for expansion of various functions;
8. Super dirt resistant and stable standard white calibration board;
9. Large capacity storage space, which can store more than 30000 pieces of test data
10.2/10 standard observer's angle, multiple light source modes, multiple surface color systems, meet various standards of chromaticity indicators, and the needs of various customers for color measurement;
11. Camera locating position and Stabilizer cross measurement position;
12. PC software has powerful function expansion;
Specification
| Model | TS7600 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | Customized one aperture, It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement. |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Senso | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Customized one aperture: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness, | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, One aperture (8mm or 4mm) |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
FAQ:
1. Which models are the equivalent models to TS7600?
Answer: MINOLTA CM-700d, CM-600d are the equivalent models to 3nh TS7600.
2. Is 3nh a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters.
3. Where is your main market.
Answer: We sell to the global market.
4. Is the package strong enough to make the instrument shipped safely to customers?
Answer: Yes, of course. The instrument is packed in a firm alluminum box filled with foam.
5. Can you support OEM service?
Answer: Yes, we support OEM and ODM service.
6. How long is the warranty?
Answer: We support 1 year warranty and life-span maintenance.
7. When can you ship the goods after payment?
Answer: We have all goods in stock, and general we ship the goods within 2 working days after payment.
8. What are your main products?
Answer: We mainly produce colorimeter, spectrophotometer, gloss meter, and color light box, and iso test chart.
