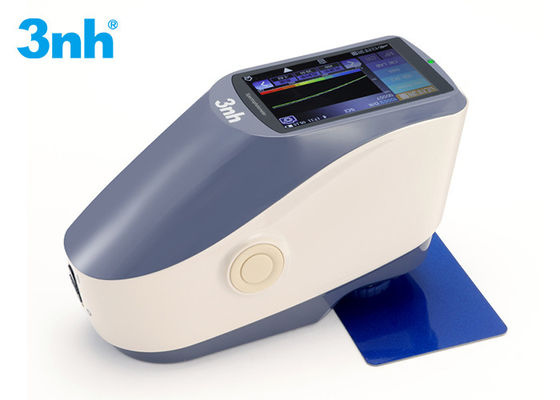

Pantone Color 3nh Spectrophotometer , Test Color Measurement With 8mm 4mm Apertures

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YS4560
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 45/0 SCE/SCI SCE & SCI
UV Light Source Yes Repeatibility ΔE*≤0.03
Inter-instrument Agreement ΔE*≤0.15 Measuring Aperture 4,8mm Measurement Aperture
High Light

hunter lab spectrophotometer

,

color measurement instruments

Leave a Message
Product Description

45/0 color meter pantone color test color measurement spectrophotometer 3NH YS4560 with 8mm and 4mm apertures

Introduction



Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833, 3nh new model YS4560 high accuracy grating spectrophotometer adopts 45/0(45 ring-shaped illumination, 0 degree viewing angle), and with two apertures , it is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.

It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.



Specification

45/0 Grating Spectrophotometer
Model YS4560 45/0 Grating Spectrophotometer
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features High accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)

Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 4.0
Data memory Standard 1000 Pcs, Sample 30000 Pcs
Language Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.



Application

High accruacy 45/0 spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement. It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.


ys 111115.jpgQQ20200307171648

-1(1)



3nh Instrument Description Similar Models
YS6060 Spectrophotometer d/8°;d/0° CI7800,CM3600A
YS4560 Spectrophotometer 45°/0 BYK 6801,CM2500C
YS4510 Spectrophotometer 45°/0 CM2500C,CS600C
YD5050 Spectrophotometer 45°/0 Exact advance
YD5010 Spectrophotometer 45°/0 Exact basic, basic density meter
YS3060 Spectrophotometer d/8° X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d
YS3010 Spectrophotometer d/8° X-rite Ci60; MINOLTA CM-2300d
NS800 Spectrophotometer 45°/0 BYK 6801
NR60CP Colorimeter 8°/d MINOLTA CR-10 plus
NHG268 Gloss Meter 20°, 60°, 85° gloss BYK 4563
NHG60 Gloss Meter 60° gloss BYK 4561
T90-7 Light Cabinet 7 Illuminants X-rite SpectraLight QC
