NS810 Chroma Meter Silk Spectrophotometer 400-700nm Wavelength For Paint Coating
Product Details
| Illumination/Observation System: | D/8 Structure | Wavelength Range: | 400-700nm |
|---|---|---|---|
| Wavelength Interval: | 10nm | Color Difference Formula: | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 V |
| Chromaticity Data: | WI,YI,Mt,color Strength,color Stain,color Fastness,opacity | Observer: | 2-degree/10-degree |
| Repeatability: | Within Delta E*ab 0.04 | Illuminant: | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Highlight |
hunter lab spectrophotometer,color measurement instruments |
||
Product Description

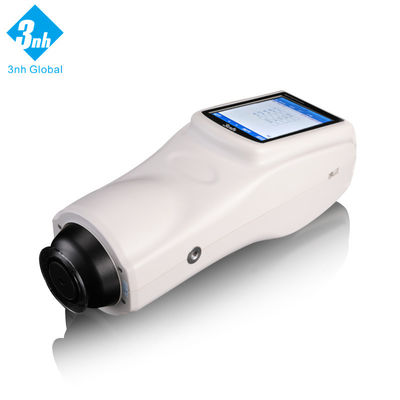

NS810 d/8 paint color analyzer photo spectrometer with PC color matching software
Brief Introduction:
NS810 spectrophotometer is developed by Silk with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.
In the R&D process, Silk scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.
Silk also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS810 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of Silk high technology which realizes to be fully compatible with international market.
Applications
NS810 spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
Specification:
| Model | NS800 color spectrophotometer |
| Illumination/observation system | 45/0 method (45 ring-shaped illumination, vertical viewing) Comply with CIE No.15,GB/T 3978. |
| Integrating sphere Size | Φ58mm |
| Light Source | combined LED sources |
| Sensor | Silicon photodiodearray |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Reflectance range | 0~100% |
| Measuring Aperture | Φ8mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV |
| Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 v |
| Other Chromaticity Data | Whiteness - WI(ASTM E313,CIE/ISO,AATCC,Hunter), Yellowness-YI(ASTM D1925,ASTM 313), TI(ASTM E313,CIE/ISO), Metamerism Index (Mt) Colour Stain, Color Fastness, Color Strength, Opacity |
| Observer | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12 |
| Display Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Measurement Time | 1.5s |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=90*77*230mm |
| Weight | 600g |
| Battery | Li-ion battery. 5000 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | 1000 Standards, 10000 Samples |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
