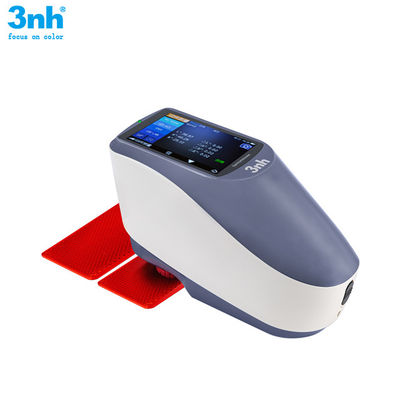

Portable Colour Measurement Instruments 3NH YS4560 45/0 Geometry For Visual Observations
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Optical Geometry||45/0||SCE/SCI||SCE & SCI|
|UV Light Source||Yes||Repeatibility||ΔE*≤0.03|
|Inter-instrument Agreement||ΔE*≤0.15||Measuring Aperture||4，8mm Measurement Aperture|
hunter lab spectrophotometer,
color measurement instruments
45/0 geometry colour measurement instruments 3NH YS4560 portable spectrophotometer for visual observations
YS4560 Advanced Spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; The instrument is equipped with Φ8, Φ4mm double measuring aperture, used for traffic signs and accurate color measurement and quality control in various industries. It has a separate UV source for fluorescence sample measurements.
1.Beautiful appearance and perfect combination with ergonomic structure design;
2.45/0 geometrical optics, conforms with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833;
3.Adopt high-life and low-power combined LED light source, including UV/excluding UV;
4.Optional aperture2mm/4mm/8mm/20mm,adapt to more samples to be tested;
5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
7.USB port, widely useful;
8.Super stain-resistant and stable standard white calibration plate;
9.Large capacity storage space, over 30,000 measurement data;
10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
11.PC software has a powerful function extension.
12.Built-in standard polygon tolerance setting and specific traffic sign gamut, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates;
|Measuring Aperture||8mm and 4mm apertures|
|UV Light Source||Yes|
|Integrating Sphere Size||48mm|
|Wavelength Range||400nm - 700nm|
|Reflectance Range||0 - 200%|
|Illuminant||D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12|
|Observer Angle||2° & 10°|
|Color Space||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB|
|Color Difference Formula||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)|
|Displayed Data||Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset|
|Other Colorimetric Index||
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity
|Light Source Device||Combined LED Lamp & UV Lamp|
|Light Source Lifespan||5 years, More than 1.6 million measurements|
|Sensor||256 Image Element Double Array CMOS Image Sensor|
|Spectral Device||Concave Grating|
|Aiming Method||Camera Locating|
|Measurement Mode||Single Measurement & Average Measurement|
|Storage Capacity||Standard: 1000 Pcs
Sample: 28000 Pcs (One piece can include SCE&SCI)
|Data Port||USB & Bluetooth|

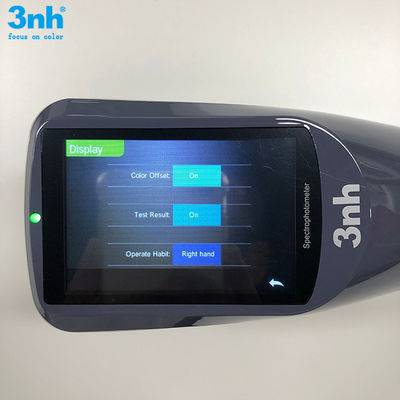

|Screen||3.5" LCD Touch Screen|
|Battery||Built-in Li-ion Battery, 5000 Measurements within 8 hours|
|Language||English & Chinese & Spanish|
|Working Environment||Temperature: 0~40℃, Humidity: 0~85% (No Condensation)|
|Storage Environment||Temperature: -20~50℃, Humidity: 0~85% (No Condensation)|
|Standard Accessory||Power Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cap|
|Optional Accessory||Micro Printer, Powder Test Box, Universal Test Component|
1. Spectrophotometer YS4560 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS4560 features the precise measurement and the complete functions.
3. It is configured with 8mm or 4mm or 2mm aperture optional. The 4mm or 2mm aperture is for the color measurement of small targets.
4. Configured with UV light source, YS4560 can be used to measure the color of the targets with fluorescent material.
5. The PC terminal software SQCX provides powerful data management functions.
6. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
7. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
8. YS4560 can be connected to a computer via USB cable or Bluetooth to do data management.
9. A built-in camera to help to aim the targets to be measured.
YS4560 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS4560 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Frequently Asked Questions
1. Which models are the equivalent models to YS4560?
Answer: BYK 6801.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
|3nh Instrument||Description||Similar Models|
|YS4560 Spectrophotometer||45°/0||BYK 6801,CM2500C|
|YD5050 Spectrophotometer||45°/0||Exact advance|
|YD5010 Spectrophotometer||45°/0||Exact basic, basic density meter|
|YS3060 Spectrophotometer||d/8°||X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d|
|YS3010 Spectrophotometer||d/8°||X-rite Ci60; MINOLTA CM-2300d|
|NS800 Spectrophotometer||45°/0||BYK 6801|
|NR60CP Colorimeter||8°/d||MINOLTA CR-10 plus|
|NHG268 Gloss Meter||20°, 60°, 85° gloss||BYK 4563|
|NHG60 Gloss Meter||60° gloss||BYK 4561|
|T90-7 Light Cabinet||7 Illuminants||X-rite SpectraLight QC|
