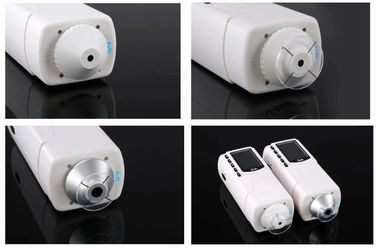

Large Aperture 20mm Handheld Colorimeter , 3nh Universal Chroma Meter NR20XE
Large Aperture 20mm Colorimeter Handheld Universal Chroma Meter NR20XE Manufacturer
NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes.
NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter.
NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore,NR20XE is widely used in color field.It widely used in food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc. field
Difference between NR20XE and Ordinary Portable Colorimeter
When testing products such as meat by ordinary colorimeter, the whole instrument body has to be placed in the object which not only stains the instrument, but also will let the liquid/water enter the instrument directly and bring cross contamination. However, NR20XE is a vertical structure. When measuring, it can make sure only the aperture touches the object which will not stain the instrument body.
NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.
- 20mm measuring aperture can test objects with surface stripe accurately
- Vertical structure can test wet surface object or can be soaked into the liquid for testing
- Double Locating: Illuminating locating and cross locating
- Adopting new optical path and dynamic integration time can test more stable and accurate
- 45°/0° optical geometry structure, considering the effects of surface features
- Annular illumination design, suitable for polarizing material
- Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly
- Configuring CQCS3 software,connect PC computer to realize more functions
Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.
||45 ° / 0 °
|Measure the diameter
||20 mm large diameter
||Especially suitable for measuring surface texture and wet products
||Light orientation and cross orientation
||Silicon photodiode array
||CIEL* a*b*C*H* CIEL* a*b* CIE XYZ
|Optional light source
|The light source device
||LED blue light excitation
||≤0.08 E*ab to measure the average of 30 times of white standard plate
|Difference between instruments
||0.50 E * ab or less
||100 standard samples, 20,000 samples, 500g
|The weight of the
|The power supply
||Rechargeable lithium-ion battery 3.7v@3200mah
||About 8 hours -100% charge
|Measured times after charging
||3000 measurements in 8 hours
||More than 1.6 million measurements were made in 5 years
|Operating temperature and humidity range
||-10~40C, 0-85% relative temperature (no condensation)
|Storage temperature and humidity range
||-20~50C, 0-85% relative temperature (no condensation)
||The USB interface
||CQCS3 high-end color quality management software
||Miniature thermal printer
1. 20mm measuring aperture can test objects with surface stripe accurately.
2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.
3. Double Locating: Illuminating locating and cross locating.
4. Adopting new optical path and dynamic integration time can test more stable and accurate.
5. 45°/0° optical geometry structure, considering the effects of surface features.
6. Annular illumination design, suitable for polarizing material.
7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
8. Configuring CQCS3 software -- connect PC computer to realize more functions.
