Plastic Tilo P60+ N7 Neutral Grey Color Light Box

Plastic Tilo P60+ N7 Neutral Grey Color Light Box

Product Details:

Place of Origin: Shenzhen,China
Brand Name: TILO
Certification: CE,ISO,RoHs,etc
Model Number: P60+

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Wooden Exports Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal,etc.
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: P60+ Size: 695x552x502mm
Light Sources: D65,TL84,CWF,F,UV,TL83 Standard: ASTM D1729, ISO3664, DIN, ANSI And BSI
Color: N7 Neutral Grey Certifications: CE, ISO 9001, ROHS, SCM
High Light:

D65 Fabric Inspection Booth


D6D65 Textile Light Matching Box

Product Description

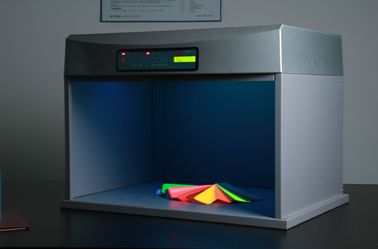

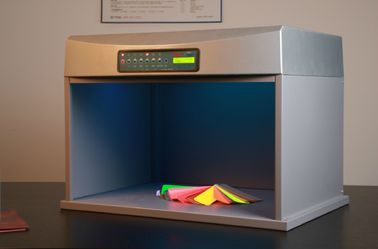

Plastic Tilo P60+ N7 Neutral Grey Color Light Box

Tilo P60+ color light box/color viewing booth with D65,TL84,CWF,U30/TL83,UV,F/A



Order Model

Configured Light Sources




P60+ Color Light Box

D6D65 Textile Light Matching Box Color Viewer Check Booth Machine P60+CWF, TL83





P60+ verivide lamp D65 fabric inspection light box / color matching light box can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.


Ø TILO Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.

Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

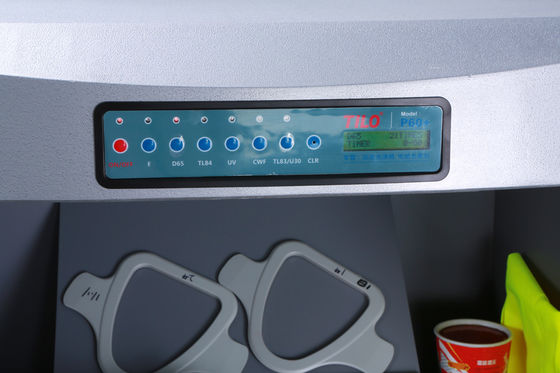

Ø Easy to operate by using individual switches for each light source.

Ø Elapsed time meter for tracking optimal lamp replacement.

Ø Automatically alternating among light sources.

Ø No warm-up time or flickering which insures quick and reliable color judgment.

Ø Economic power consumption and low heat generation for high light efficiency.

Ø The dimension can be made by customized


Technical Parameter Item P60+ Color Assessment Light Cabinet
Product Category Color Checking Equipment
Product Name Color Matching Light Cabinet, Color Comparison Light Box
Application For the comparison and assessment of the difference of surface colors of those products like plastics, metals, textiles, papers, wood, tiles, etc. with human eyes under a standard light source environment.
Light Source Types 6 Kinds of Light Sources: D65, TL84, CWF, F, UV, TL83
D65 6500K, 20W, 2pcs of light tubes
TL84 4000K, 18W, 2pcs of light tubes
CWF 4150K, 18W, 2pcs of light tubes
F 2700K, 40W, 4pcs of light bulbs
UV 365nm, 18W, 1pcs of light tubes
TL83 3000K, 18W, 2pcs of light tubes
Internal Space Size 665×490×360mm
Dimension 695×552×502mm
Weight 19.5KG
Material Engineering Plastics + Wood
Switch Button Every switch button is with a timer and a counter


Packing & Delivery


Packing Details : MDF package

Delivery Details : within 2 days after payment

Payment Terms: T/T 100% In Advance



Product Name P60+ Color light box
Material plastic
Color neutral grey
Certification CE,ISO9001,ROHS
Light Source D65,TL84,CWF,TL83,UV,F
Warranty 12 months except comsumable
Used Textile, Dyeing, Packaging, Printing, Lether etc



About Light Sources:


Light Source Color Viewing Booths Application Color Temperature(K) Power(W)
D65 International Standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe,Japan and China 4000 18
CWF Cool White Fluorescent American Standard 4150 18
F/A "Sun-set Light Yellow" Incandescent Light Source 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brightness or fluorescent pigments. Wavelength: 365nm 20
U30 Warm White Fluorescent, American Standard 3000




Packing List:


No. Name Quantity
1 Light Booth Top Cover 1 pcs
2 Light Booth Bottom 1 pcs
3 Light Booth Back Cover 1 pcs
4 Light Booth Side Cover 2 pcs
5 Power Adapter 1 pcs
6 Operating Manual 1 pcs
7 Warranty Card 1 pcs
8 D65 Light Tube 2 pcs
9 TL84 Light Tube 2 pcs
10 UV Light Tube 1 pcs
11 F Light Tube 4 pcs
12 CWF Light Tube 2 pcs
13 TL83 Light Tube 2 PCS

Remarks: Optional tubes D50, D75, U30,TL83, U35, A. If you need, please let us know your detail requirement.
