700nm D/8 Colour Measurement Spectrophotometer 3nh TS7036
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | D/8 | Wavelength | 400-700nm |
|---|---|---|---|
| Repeatibility | DeltaE ≤ 0.05 | Inter-instrument Error | DeltaE ≤ 0.3 |
| Aperture | 8mm & 4mm | Sphere Size | 40mm |
| High Light | 700nm Colour Measurement Spectrophotometer,D/8 Colour Measurement Spectrophotometer,3nh TS7036 |
||
Product Description
Product Description
Popular New 3nh TS7036 handheld color spectrophotometer for plastic recycling with UV light source
TS7036 is 3nh using autonomous core technology research and development of A portable light color difference instrument, is the high level in spectral architecture color difference instrument, in addition to ensure accurate relative Δ E at the same time, also to ensure the accuracy of the absolute value of L, A and B for A long time, anytime, anywhere can pass the international standards and national standards of measurement. Using built-in silicon photodiode array (double row group 32) sensors, import the whiteboard, repetitive Δ E * ab easily control within 0.05, both measurement speed and convenience of the operation at the same time, connecting the PC software or even the PC software can quickly judging color difference measurement, powerful, 4/8 mm double measuring diameter meet plastic electronics, paint and ink, textile printing and dyeing, printing, such as the ceramic industry production and the quality of accurate color control.
| Model | TS7036 |
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
| SCI/SCE Mode | |
| Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Senso | Silicon photodiode array (double row 32 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | L:0~120; reflectivity:0~200% |
| Measuring Aperture | Dual Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| Specular Component | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | 0.01 |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=81X71X214mm |
| Weight | About 460g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB,Bluetooth 5.0 |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE) |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |

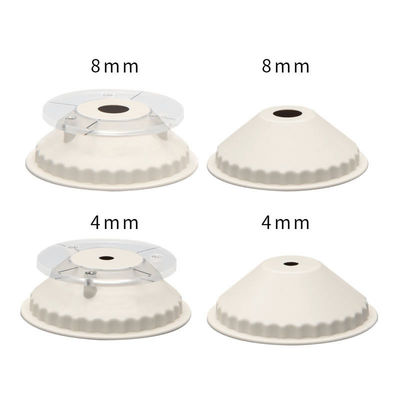

| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box,Bluetooth Micro Printer |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
Certifications
ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES
Application
3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
