3nh NS800 45/0 58mm Sphere Portable Color Meter PC Software

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NS800
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 2-5 work days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 45°/0 Sphere Size Φ58mm
Repeatibility ΔE*≤0.04 Inter-instrument Agreement ΔE*≤0.2
Wavelength Range 400-700nm Measuring Aperture Φ8mm
High Light

45/0 Portable Color Meter

,

58mm Sphere Portable Color Meter

,

3nh NS800 Spectrophotometer

Leave a Message
Product Description

3nh High Quality Spectrophotometer NS800 45/0 3nh Color Meter with PC Software

Product Description

NS800 3nh spectrophotometer is a model of spectrophotometer with incomparable accuracy. It features a ultra-large integrating sphere which can evenly distribute light more effectively, which makes the measurement results more accurate. The errors of the absolute values of L*ab of the 3nh spectrophotometer from USA, Germany and Japan are all ±1.5, while, after careful comparison, the error of L*ab absolute value of NS810 is only ±1.0.

It 3nh spectrophotometer is configured with two observer angles, multiple light source types, multiple color space systems and color difference formulas, all of which have endowed NS800 with powerful functions to meet the requests of all kinds of color measurements.

The large touch-screen display makes operation more friendly. And once connected with PC via the software SQC8, more extension functions will be at hand.

Model NS800
Illumination/ observation system 45°/0° (45 ring-shaped illumination, vertical viewing)
Integrating sphere size 58mm
Light source Combined LED sources
Sensor Silicon photodiode array
Wavelength range 400~700nm
Wavelength interval 10nm
Reflectance range 0~200%
Measuring aperture 8mm
Color space CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB&WI&YI
Color difference formila ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h)
Other chromaticity data

WI(ASTM E313, CIE/ISO, AATCC, Hhunter),

YI(ASTM D1925, ASTM 313),

Metamerism INdex(Mt), color strength

Color stain, color fastness

Observer 2°/10°
Illuminant D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Display data Spectral value/graph, colorimetric value, color difference value/graph, pass/fail result, color simulation, color index setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement time 1.5s
Repeatability

Spectral reflentance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric value: standard deviation within ΔE*ab 0.04 (measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Errors between each instrument within ΔE*ab 0.2 (average for 12 BCRA series II color tiles)
Dimension L*W*H=90*77*230mm
Weigh 600g
Battery Li-ion battery, 2800 times within 8 hours
Lamp life 5 years, more than 1.6 million measurements
Display screen TFT 3.5 inch, capacitive touch screen
Interface USB/ RS-232
Data memory 1000 standard, 15000 samples
Operating temperature 0~40 (32~104°F)
Storage temperature -20~50℃(-4~122°F)
Standard accessory Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity, protective cover and wrist strap
Optional accessory Universal test components, micro printer, power test box
Warranty 1 year
Notes The specifications are subject to change without notice.

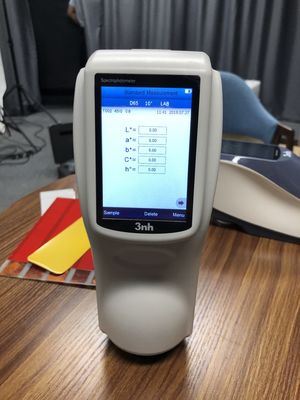

Product Images:

810 (3).jpg






Product Introduction:



NS 800 spectrophotometer is developed by 3nh with indepandent intellecual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry. It can measure reflentande spectrum and other color index precisrly. NS 810 spectrophotometer can not only help to perform color matching management studies, but also control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

It's used to compare color difference in plastic, electronic, painting, coating, ink, textile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratories.




Packaging & Shipping





Size 436*224*365mm
Gross weight 3.8kg
Standard accessory Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity, protective cover and wrist strap
Optional accessory Universal test components, micro printer, power test box
