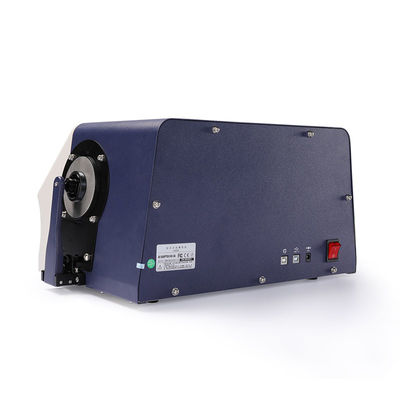

780nm D/8 Car Color Scanner Spectrophotometer Silk YS6010
Product Details
| Model: | YS6010 | Screen: | 7inch TFT Capacitive Touch-screen |
|---|---|---|---|
| Wavelength: | 360nm-780nm | Measure Material: | Solid,liquid,powder,paste,etc |
| Measure Aperture: | 25.4mm/15mm/8mm/4mm | Integrating Sphere Size: | 154mm |
| Transmissive Sample: | Yes | Optical Geometry: | D/8 |
| Observer Angle: | 2 Degree & 8 Degree | Weight: | 9.6kg |
| Highlight |
D/8 Car Color Scanner Spectrophotometer,780nm Car Color Scanner Spectrophotometer,Silk YS6010 Benchtop Spectrophotometer |
||
Product Description
Car color scanner spectrophotometer Silk YS6010 360~780nm Wavelength Benchtop spectrophotometer
YS6010 spectrophotometer is a bench-top measurement instrument designed to evaluate the color and appearance of many measuring applications for objects’ reflectance and also the transmittance of translucent or transparent liquids and solids. It is a compact yet advanced instrument that features a side port in horizontal format and with 7.7 inch TFT touch screen, it’s very easy to operate.
With high precision and advanced capabilities, YS6010 benchtop spectrophotometer is designed for accurate analysis and transmission of laboratory color and appearance of solids, liquids, pastes, powders, pills, and granules in a more comprehensive, streamlined process. Model YS6010 is good used in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
| Model | Benchtop Spectrophotometer YS6060 | Benchtop Spectrophotometer YS6010 |
| Optical Geometry |
Reflective : d/8°(diffused illumination, 8-degree viewing angle);SCI&SCE / SPIN&SPEX;Including / excluding UV measurements Transmissive : d/0°(diffused illumination, 0-degree viewing angle);SCI&SCE / SPIN&SPEX;Including / excluding UV measurements Comply to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
|
| Application | It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
| Integrating Sphere Size | Φ154mm | |
| Light Source | 360~780nm Combined LED Lamp, 400nm Cut-off light source,420nmCut-off light source | 360~780nm Combined LED Lamp, 400nm Cut-off light source |
| Wavelength Range | 360~780nm | |
| Spectral Separation Device | Concave grating | |
| Detector | 256 Image Element Double Array CMOS Image Sensor | |
| Wavelength Range | 360~780nm | |
| Wavelength Pitch | 10nm | |
| Half Bandwidth | 10nm | |
| Reflectance Range | 0~200% | |
| Measuring Aperture |
Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
|
Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
|
| Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | ||
| Specular Component | Reflectance: SCI&SCE Transmittance: SCI&SCE | |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 | |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) | |
| Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter), Opacity,8° Glossiness, Gardner Index, Pt-Co Index, 555 Index, |
|
| Observer Angle | 2°/10° | |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 | |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset | |
| Measuring Time | About 3s (Measure both SCI & SCE about 6s) | |
| Repeatability |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) | |
| Size | 370×300×200mm(L*W*H) | |
| Weight | 9.6kg | |
| Power | AC 24V, 2A Power adapter power supply | |
| Illuminant Life Span | 5 years, more than 3 million times measurements | |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen | |
| Data Port | USB & Bluetooth, Print serial port | USB, Print serial port |
| Data Storage Capacity |
Standard: 5000 Pcs; Sample: 40000 Pcs. (One PCS can include both SCI and SCE) |
Standard: 2000 Pcs; Sample: 20000 Pcs. (One PCS can include both SCI and SCE) |
| Language | English & Chinese | |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) | |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) | |
| Standard Accessory | White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software, Transmissive Test Component | White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software |
| Optional Accessory | Micro-printer, | Micro-printer, Transmissive Test Component |
| Notes: The specifications are subject to change without notice. | ||
| Size | 45*50*32mm |
| Gross weight | 15kg |
| Standard accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, White and Black Calibration Cavity, Sample holder, 25.4 caliber, 8 caliber, 4 caliber. |
| Optional accessory | Universal test components, micro printer, power test box |
Application Industry
Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Silk. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
Our Certificates:ISO9001:2008; CE; FCC; ROHS; TUV.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Frequently Asked Questions
1. Which models are the equivalent models to YS3020?
Answer: KONICA MINOLTA CM-700d is the equivalent model to Silk YS3020.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
