Plastic Silk P60+ TL84 CWF Color Controller Light Box ISO
Product Details
| Model: | P60+ | Size: | 695x552x502mm |
|---|---|---|---|
| Light Sources: | D65,TL84,CWF,F,UV,TL83 | Standard: | ASTM D1729, ISO3664, DIN, ANSI And BSI |
| Color: | N7 Neutral Grey | Certifications: | CE, ISO 9001, ROHS, SCM |
| Highlight |
CWF Color Controller Light Box,TL84 Color Controller Light Box,ISO Color Assessment Cabinet |
||
Product Description

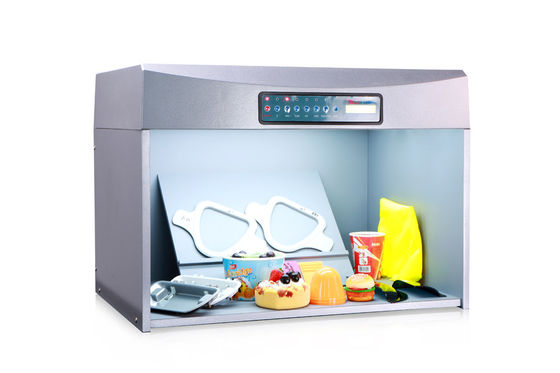

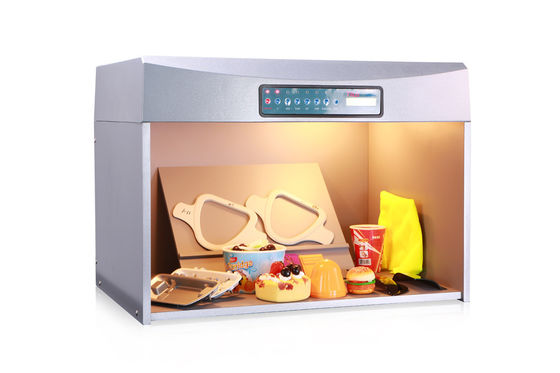

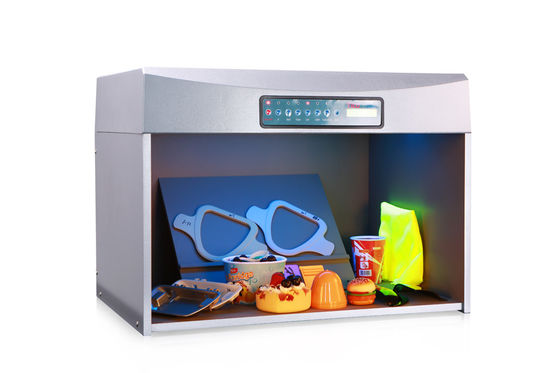

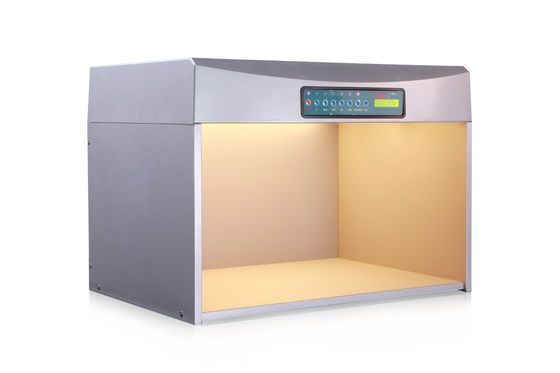

Silk P60+ color light box/color viewing booth with D65,TL84,CWF,U30/TL83,UV,F/A
| Product Name | P60+ Color light box |
| Material | plastic |
| Color | neutral grey |
| Certification | CE,ISO9001,ROHS |
| Light Source | D65,TL84,CWF,TL83,UV,F |
| Warranty | 12 months except comsumable |
| Used | Textile, Dyeing, Packaging, Printing, Lether etc |
|
Brand |
Order Model |
Configured Light Sources |
Weight |
Dimension(mm) |
|---|---|---|---|---|
|
Silk |
P60+ Color Light Box | D6D65 Textile Light Matching Box Color Viewer Check Booth Machine P60+CWF, TL83 | 30kg | 695x552x502 |
P60+ verivide lamp D65 fabric inspection light box / color matching light box can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Ø Silk Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized
| Technical Parameter Item | P60+ Color Assessment Light Cabinet |
| Product Category | Color Checking Equipment |
| Product Name | Color Matching Light Cabinet, Color Comparison Light Box |
| Application | For the comparison and assessment of the difference of surface colors of those products like plastics, metals, textiles, papers, wood, tiles, etc. with human eyes under a standard light source environment. |
| Light Source Types | 6 Kinds of Light Sources: D65, TL84, CWF, F, UV, TL83 |
| D65 | 6500K, 20W, 2pcs of light tubes |
| TL84 | 4000K, 18W, 2pcs of light tubes |
| CWF | 4150K, 18W, 2pcs of light tubes |
| F | 2700K, 40W, 4pcs of light bulbs |
| UV | 365nm, 18W, 1pcs of light tubes |
| TL83 | 3000K, 18W, 2pcs of light tubes |
| Internal Space Size | 665×490×360mm |
| Dimension | 695×552×502mm |
| Weight | 19.5KG |
| Material | Engineering Plastics + Wood |
| Switch Button | Every switch button is with a timer and a counter |
Packing & Delivery
Packing Details : MDF package
Delivery Details : within 2 days after payment
Payment Terms: T/T 100% In Advance
About Light Sources:
| Light Source | Color Viewing Booths Application | Color Temperature(K) | Power(W) |
| D65 | International Standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe,Japan and China | 4000 | 18 |
| CWF | Cool White Fluorescent American Standard | 4150 | 18 |
| F/A | "Sun-set Light Yellow" Incandescent Light Source | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brightness or fluorescent pigments. | Wavelength: 365nm | 20 |
| U30 | Warm White Fluorescent, American Standard | 3000 |
18 |
Packing List:
| No. | Name | Quantity |
| 1 | Light Booth Top Cover | 1 pcs |
| 2 | Light Booth Bottom | 1 pcs |
| 3 | Light Booth Back Cover | 1 pcs |
| 4 | Light Booth Side Cover | 2 pcs |
| 5 | Power Line | 1 pcs |
| 6 | Operating Manual | 1 pcs |
| 7 | Warranty Card | 1 pcs |
| 8 | D65 Light Tube | 2 pcs |
| 9 | TL84 Light Tube | 2 pcs |
| 10 | TL83 Light Tube | 2 pcs |
| 11 | CWF Light Tube | 2 pcs |
| 12 | UV Light Tube | 1 pcs |
| 13 | F Light Tube | 4 pcs |
