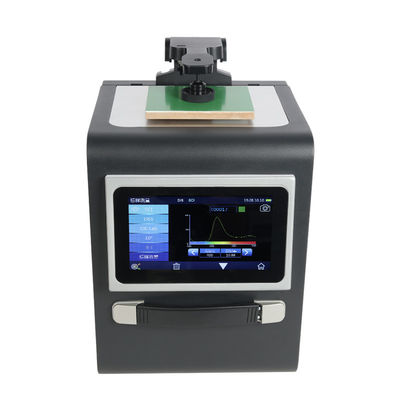

SCI Flat Grating Portable Benchtop Spectrophotometer 3nh TS8280 FCC

  • SCI Flat Grating Portable Benchtop Spectrophotometer 3nh TS8280 FCC
  • SCI Flat Grating Portable Benchtop Spectrophotometer 3nh TS8280 FCC
  • SCI Flat Grating Portable Benchtop Spectrophotometer 3nh TS8280 FCC
  • SCI Flat Grating Portable Benchtop Spectrophotometer 3nh TS8280 FCC
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number TS8280
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8° SCE/SCI SCE & SCI
UV Light Source Yes Repeatibility ΔE*≤0.03
Inter-instrument Agreement ΔE*≤0.15 Measuring Aperture 8mm & 4mm
High Light

SCI Portable Benchtop Spectrophotometer

,

Flat Grating Portable Benchtop Spectrophotometer

,

FCC Reflectance Color Measurement Instrument
Leave a Message
Product Description
Company Information

Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.

20200707114603

Application

Application of TS8280 portable Desktop spectrophotometer:

TS8280 portable desktop spectrophotometer color measurement instrument equipped with Φ30 mm diameter measurement, to adapt to the measurement of large samples, suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; and it can be used for fluorescence sample measurement.





Technology



Model TS8280
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Φ30mm apertures, to adapt to the measurement of large sample;
  Rotary press type structure, more convenient for testing;
  Accurate measurement, can be used for laboratory color accurate analysis and transmission;
  Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; It can be used for fluorescence sample measurement.
Integrating Sphere Size Φ152mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Senso Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0~200%
Measuring Aperture Φ30mm/Φ25.4mm
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating
Dimension L*W*H=370X240X260mm
Weight About 7.8kg
Battery AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth ®5.0, trigger switch interface
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity,Aperture
Optional Accessory Micro Printer, Foot Switch, Rotating Bracket
Notes Technical parameters are only for reference, subject to the actual sale of the product
