TUV Cmyk Color Difference Colorimeter 3nh YD5010 Densitometer For Printing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Testing Conditions | M O, M 1,M 2 , M 3 | Standard | ISO 5-4,CIE No.15 |
|---|---|---|---|
| Measurement Geometry | 45/0(45 Ring-shaped Illumination, 0 Degree Viewing Angle) | Repeatibility | ΔE*≤0.04 |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB | Measuring Aperture | 8mm And 4mm Apertures |
| High Light | Cmyk Color Difference Colorimeter,TUV Color Difference Colorimeter,3nh YD5010 Densitometer |
||
Product Description
3nh YD5010 densitometer cmyk color difference colorimeter for printing package color density measurement
1. Product Profile
YD5010 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.
2. Detailed Technical Parameter / Specification Form
| Technical Parameter Items | YD5010 Portable Spectro-densitometer |
| Product Category | Optical Density Measurement Instrument |
| Product Name | Portable Spectro-densitometer |
| Application | For the measurement of optical density and colors in industries like printing, packaging and ink, film, plastics and electronics, etc. |
| Optical Geometry |
45°/0 Conform to standards ISO 5-4, CIE No.15 |
| Measuring Apertures | Customize One Aperture from: ∅2mm / ∅4mm / ∅8mm |
| Measurement Conditions |
Conform to the measurement conditions of ISO 13655 M0 (CIE Light Source A) M1 (CIE Light Source D50) M2 (Illuminance Excluding UV) M3 (M2 + Polarization Filter) |
| Density Standards | ISO Status T, E, A, I |
| Density Index | Density Value, Density Difference, Dot Area, Dot Gain, Overprint, Printing Characteristics, Printing Contrast, Chromaticity Difference, Greyscale. |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh. |
| Color Difference Formulas | ΔE*ab, ΔE*94, ΔE*00 |
| Repeatability Error |
For Color: ΔE*Lab≤0.04 For Density: Within 0.01D |
| Inter-instrument Error | For Color: ΔE*Lab≤0.2 |
| Other Colorimetric Index | Non |
| Information Displayed | Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction |
| Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined LED Lamps, UV Lamps |
| Lamps Life-span | 5 Years, more than 3 Million times of measurements. |
| Wavelength Range | 400nm - 700nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0∼200% |
| Illuminants | D65, A, C, D50, D55, D75, F2(CWF), F7(DLF), F11(TL84), F12(TL83/U30), UV. |
| UV Light Source | Yes. Include UV / Exclude UV. |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Spectroscope | Concave Grating |
| Location Method | By Locating Plate |
| Measurement Time | 1.5s |
| Data Storage Capacity | 10000 pcs of data |
| Data Transmission Port | USB |
| PC Terminal Software | SQCX (for free) |
| Display Screen | 3.5 inches TFT Capacitance Screen-touch Display |
| Language Built-in | English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify) |
| Power Supply | Built-in Rechargeable Battery, Power Adapter |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | White and Black Calibration Board, Customized Aperture, Power Adapter, USB Cable, PC Software SQCX, Bluetooth Adapter, Polarization Filter, Locating Plate, User Guide. |
| Optional Accessories | Mini Thermal Printer |
| Weight | 600g |
| Dimension | 184*77*105mm |
Packing List:
| No. | Name | Qty | Type |
| 1 | Spectrodensitometer | 1 | Standard Accessory |
| 2 | White and Black Calibration Board | 1 | Standard Accessory |
| 3 | Aperture | 1 | Standard Accessory |
| 4 | USB cable | 1 | Standard Accessory |
| 5 | Power Adapter | 1 | Standard Accessory |
| 6 | Li-ion battery | 1 | Standard Accessory |
| 7 | User Manual | 1 | Standard Accessory |
| 8 | Product certification and warranty card | 1 | Standard Accessory |
| 9 | PC software(download from the office website) | 1 | Standard Accessory |
| 10 | Protective Cover | 1 | Standard Accessory |
| 11 | Polarization filter box | 1 | Standard Accessory |
| 12 | Locating Plate | 1 | Standard Accessory |
3. Detailed Introduction to Instrument

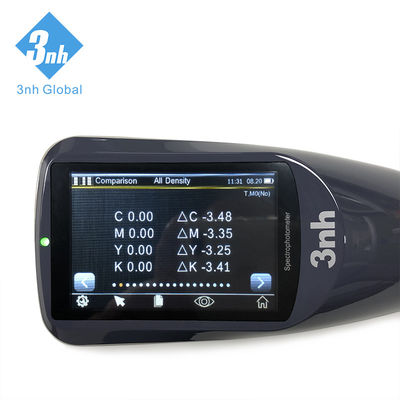

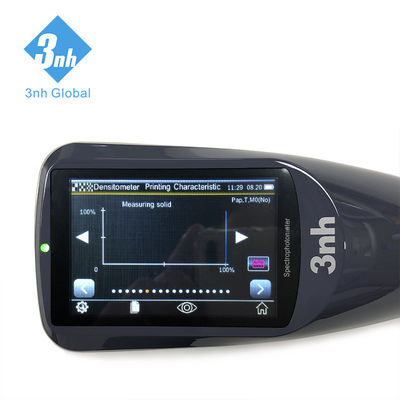

3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. All the parameters about printing: CMYK, Density, Dot Area, Dot Gain, etc. One instrument meets all requirements.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.
3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm, different choice according to different application situations.
3.10. Multiple kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet different requirements for color measurement and color analysis.
3.11. Include multiple kinds of light source types, can be applied to most of the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.15. USB data port, implement data transmission more convenient and prompt.
4. Company Profile
YD5010 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998. We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.
5. Frequently Asked Questions
1. Can the YD5010 spectro-densitometer be equivalent to any model of world famous brands?
Answer: Yes, our YD5010 is equivalent to the X-rite eXact Standard Spectro-densitometer.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
