3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor

  • 3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor
  • 3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor
  • 3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor
  • 3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor
  • 3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number ST70
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8° SCE/SCI SCE & SCI
UV Light Source Yes Repeatibility ΔE*≤0.02
Inter-instrument Agreement ΔE*≤0.15 Measuring Aperture 8mm & 4mm
High Light

3nh hand held spectrometer

,

SCI SCE hand held spectrometer

,

Photodiode Array 3nh spectrophotometer
Leave a Message
Product Description

3nh spectrophotometer ST70 colour spectrum meter colorimeter manufacturer from China

Product Overview
Handheld spectrophotometer 3nh ST70 color test colorimeter spectrophotometer with 5 apertures 8mm 4mm 1*3mm
Spectrophotometer ST70 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 32 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST70 spectrophotometer is easily controlled within 0.02, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 0
FEATURES AT A GLANCE
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 1
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 2

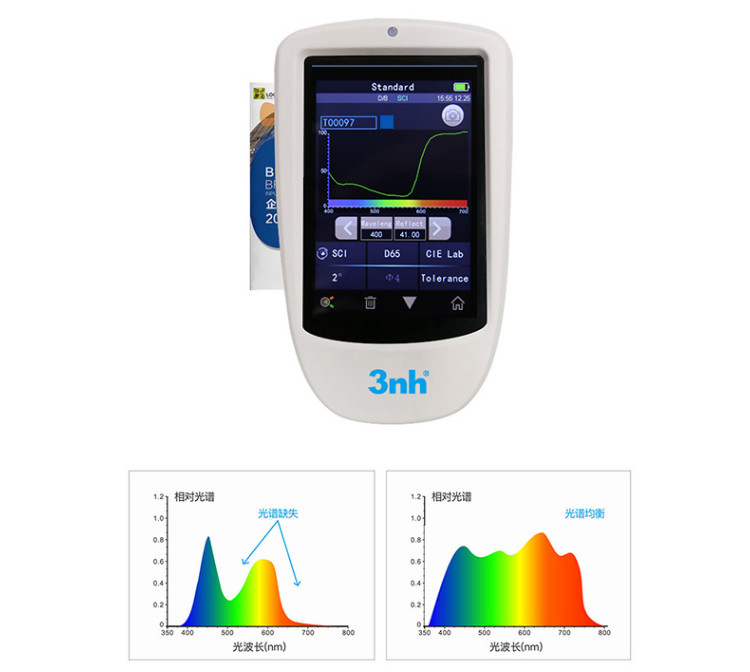

Reflectance curve
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 3
5 apertures
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 4
SQCX and APP software
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 5

Features:

1. Silicon photodiode array (double row 32 groups)
2. Adopt D/8 structure and SCI/SCE mode
3. Combination of full spectrum LED light source and UV light source
4. Equipped with five apertures
5. Camera positioning
6. Non-contact automatic calibration, professional imported white board, more wear-resistant, dirty, stable
7. Place the base safely to ensure that the whiteboard is not dirty.
8. Offer 10 kinds of color measurement space and 41 kinds of observation light source
9. Support Huawei Harmony OS, Android, IOS, Wechat applets, Windows programs

PRODUCT SPECIFICATIONS
Model
ST70 spectrophotometer
Optical Geometry
D/8 (diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic
Adopt 3nh TS series core technology, 5 measuring apertures for accurate color analysis and transmission in laboratory
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing
and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size
Φ40mm
Light Source
Combined full spectrum LED light source, UV light source
Spectrophotometric Mode
Flat Grating
Sensor
Silicon photodiode array (double row 32 groups)
Wavelength Range
360~780nm
Wavelength Interval
10nm
Measured Reflectance Range
0-200%
Measuring Aperture
5 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;LAV:1x3mm
Specular Component
SCI&SCE
Color Space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)
Color Difference Formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index
Spectral reflectance,WI(ASTM E313,CIE/ISO, AATCC, Hunter, TaubeBergerStensby),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,555 tone classification, blackness (My,dM), color density CMYK(A,T,E,M), Tint, Munsel chroma index (part of the
function is realized by PC software)
Observer Angle
2°/10°
Illuminant
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, able to customized light source
(total 41 kinds of light source, Partially realize through the PC software /APP software)
Displayed Data
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color simulation, Color Offset
Measuring Time
About 1.5s
Repeatability
Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after
white calibration)
Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Inter-instrument Error
MAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Display Resolution
0.01
Measurement Mode
Single Measurement, Average Measurement(2-99times)
Locating Method
Camera Locating,stabilizer cross position
Dimension
L*W*H=129X76X217mm
Weight
Approx 600g
Battery
Li-ion battery, 8800 measurements within 8 hours
Illuminant Life Span
10 years, more than 1.5 million times measurements
Displayed Data
3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port
USB, Bluetooth ® 5.0
Data Storage
Standard 1000 Pcs, Sample 30000 Pcs, APP/PC mass storage
Software Support
Andriod,IOS,Windows,Harmony OS,Wechat applets
Language
Simplified Chinese, English, traditional Chinese
Operating Environment
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment
-20~50℃, 0~85%RH (no condensing)
Standard Accessory
Power Adapter, USB cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective
Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture,1x3mm tip aperture
Optional Accessory
Micro Printer, Powder Test Box, Holding base
Notes
The specifications are subject to change without notice.
PRODUCT CONFIGURATION
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 6
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 7
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 8
About us
3nh is a large-scale manufacturer of color difference meter in China. Its main products series include: TS series grating
spectrophotometer, YS series grating spectrophotometer (portable / desktop), NS series handheld spectrophotometer, NH series portable colorimeter, NR series handheld colorimeter; Tilo brand light cabinets has a large R & D, production and sales base, and its production and sales is always in the leader for a long time; Sine Image is one brand of the company to offer image test chart, test software and solutions, including the independent R & D and production high-definition iso12233 resolution test chart and other full series of test chart, standard light sources, test software and test solutions etc. Sine Image has a professional image test laboratory. And 3nh also has many domestic innovative technologies for gloss meter, with high, medium and low gloss automatic switching function. It includes large screen economic HG series, large touch screen NHG series with glossy board calibrated function, economic digital YG series.
QUALITY POLICY
ISO9001, CE, TUV, ROHS, FCC, SCM etc.
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 9
Certifications
3nh ST70 Hand Held Spectrometer 5 apertures built in photodiode array sensor 10
FAQ
1. Which models are the equivalent models to YS3010?
Answer: KONICA MINOLTA CM-2300d and X-rite Ci64 are the equivalent models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and
gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
