3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard

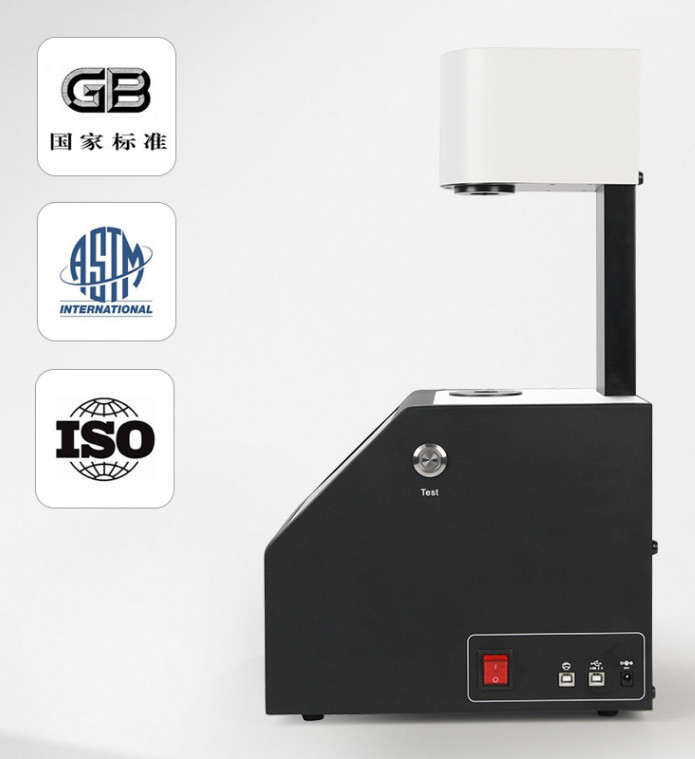

  • 3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard

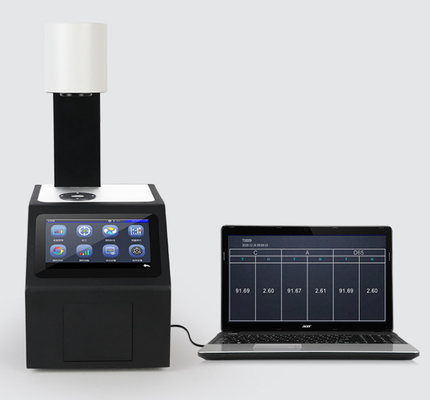

  • 3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard

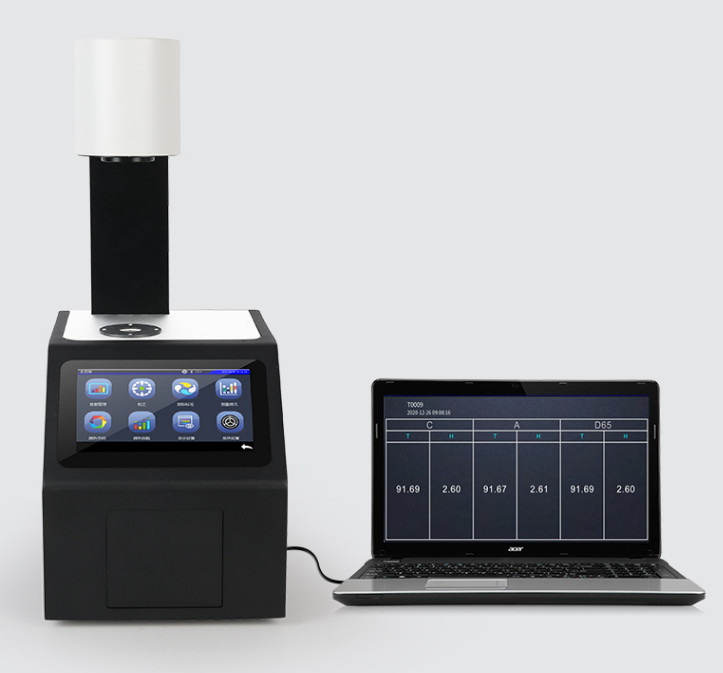

  • 3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard

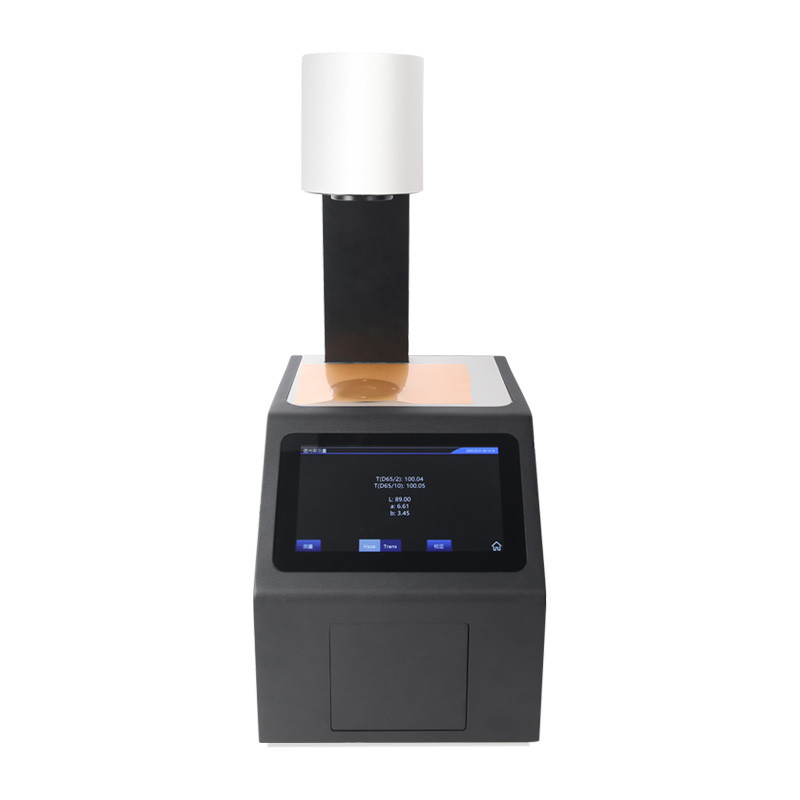

  • 3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard

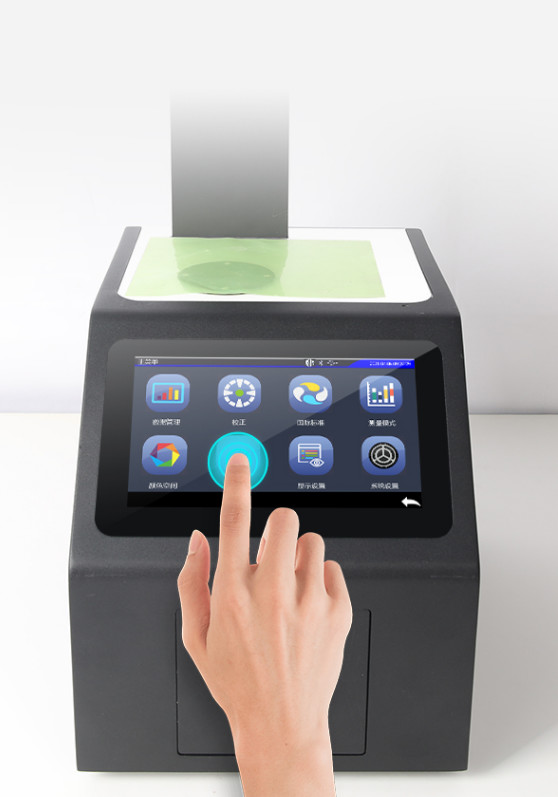

  • 3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YH1000
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 0/d SCE/SCI SCE & SCI
UV Light Source Yes Repeatibility ΔE*≤0.03
Inter-instrument Agreement ΔE*≤0.15 Measuring Aperture 8mm & 4mm
High Light

3NH light transmittance meter

,

FCC light transmittance meter

,

UV Light haze meter astm d1003
Leave a Message
Product Description

3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard

Specification
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 0

Haze Meter 3NH YH1000 Light Transmittance Instrument with ASTM D1003 Standard

YH1000 haze meter can easily achieve ASTM D1003 non-compensation method, full light transmittance, haze test. Open sample bin can
be vertically and horizontally tested to accommodate more samples to be tested.The YH1000 haze meter uses a PDF array detector to meet the CIE V(λ)2 degree visual response. The compensation method can be used to measure the light transmittance and haze with
high precision and repeatability.
Product Model
YH1000 Haze Meter
Optical Geometry
Transmittance:0/D(Parallel light illumination, diffuse viewing);Conform to the standards: ASTM D1003/1044,GB/T 2410,JJF
1303-2011,CIE 15.2,JIS K7105,JIS K7361,JIS K 7136
Characteristic
The instrument can easily achieve ASTM D1003 non-compensation method, full light transmittance, haze test. Open measuring area for
vertical and horizontal testing. In glass processing, plastic processing, film, screen processing, packaging and other industries
are widely used in transmittance,haze detection.
Integrating Sphere Size
Φ154mm
Light Source
400nm to 700nm, combined LED light
Spectrophotometric Mode
/
Sensor
The PD array detector, satisfies CIE V(λ)2 degree visual response
Wavelength Range
/
Wavelength Interval
/
Semiband Width
/
Measurement range
0~100%
Measuring Aperture
Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture)
Sample Size
Thickness<170mm
Color Space
/
Color Difference Formula
/
Other Colorimetric Index
Haze(ASTM D1003/1044),Transmittance T(ASTM)
Observer Angle
2°
Illuminant
D65,A,C
Displayed Data
PASS/FAIL Result
Measuring Time
About1.5s
Resolution
0.01unit
Repeatability
Φ20mm,within 0.15 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a
test haze of about 40 for 30 times were taken at intervals of 5s.)
Inter-instrument Error
Φ20mm,with 0.4 (After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the
reference value is tested at an interval of 5s.)
Dimension
L*W*H=290X211X511mm
Weight
About7.6kg
Power
AC 24V, 3A Power adapter power supply
Illuminant Life Span
5 years, more than 3 million times measurements
Display
7-inch TFT color LCD, Capacitive Touch Screen
Data Port
USB, Print serial port
Data Storage
Standard 1000 pcs,sample 10000 pcs
Language
Simplified Chinese,Traditional Chinese,English
Operating Environment
0~40℃(32~104°F)
Storage Environment
-20~50℃(-4~122°F)
Standard Accessory
Power Adapter, User Guide,Quality Management Software (download from the official website),USB cable,0% calibration box, measuring
aperture.
Optional Accessory
Micro-printer,Test fixture, standard haze sheet, foot switch
Note:
The specifications are subject to change without notice.
Product Description
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 1
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 2
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 3
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 4
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 5
Packing & Delivery
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 6
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 7
Standard Export Package
Company Profile
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 8
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 9
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 10
3nh is a large-scale manufacturer of color difference meter in China. Its main products series include: TS series grating
spectrophotometer, YS series grating spectrophotometer (portable / desktop), NS series handheld spectrophotometer, NH series portable colorimeter, NR series handheld colorimeter; Tilo brand light cabinets has a large R & D, production and sales base, and its production and sales is always in the leader for a long time; Sine Image is one brand of the company to offer image test chart, test software and solutions, including the independent R & D and production high-definition iso12233 resolution test chart and other full series of test chart, standard light sources, test software and test solutions etc. Sine Image has a professional image test laboratory. And 3nh also has many domestic innovative technologies for gloss meter, with high, medium and low gloss automatic switching function. It includes large screen economic HG series, large touch screen NHG series with glossy board calibrated function, economic digital YG series.
Certifications
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 11
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 12
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 13
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 14
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 15
3NH YH1000 Light Transmittance Meter Haze Meter ASTM D1003 Standard 16
FAQ
1. Which models are the equivalent models to YS3060?
Answer: KONICA MINOLTA CM-2600d, CM-700d and X-rite Ci64, Ci64UV are the equivalent models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and
gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
