400nm - 700nm Handheld Spectrophotometer Chromameter With PC Software ST50 Silk

Introduction

The twin sister ST series of Silk TS series is launched grandly, inherits the core technology of large-area array sensor and grating splitting in the field of color detection, and acutely analyzes the strong and weak light in 300-1100nm band. Our TS series has always been imitated, but never surpassed. TS series since its birth has been adhering to the quality first, with the purpose of quality, after years of continuous improvement, we can proudly say: ST series, let the color measurement is very accurate! In the future, Silk will continue to practice the mission of "specialized and innovation" enterprise and high-tech enterprise, overcome difficulties and continue to innovate on the road of testing instruments, so that our partners can have a wonderful high accuracy and quality measurement instrument.

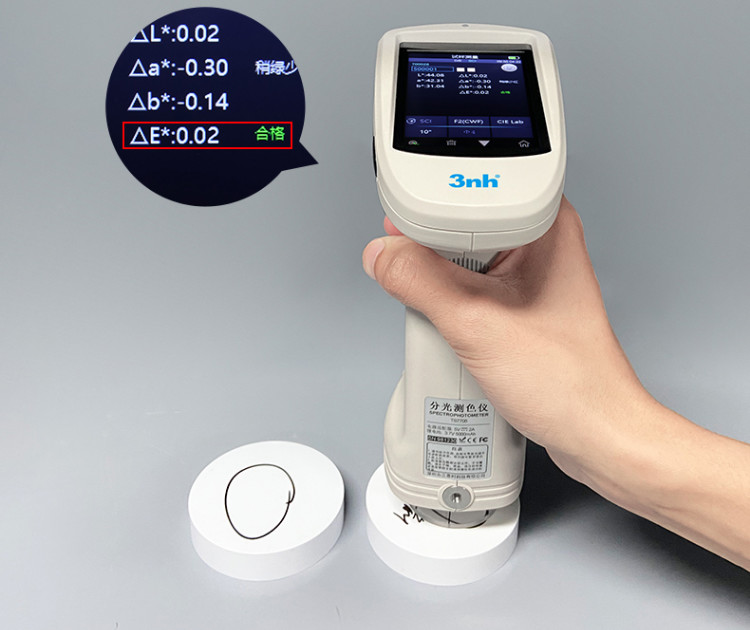

Spectrophotometer ST50 is a spectrophotometer developed by Silk TS series core technology, using built-in photodiode array (double 20 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST50 spectrophotometer is easily controlled within 0.03, and the Inter-instrument error delta E* AB is controlled within 0.2, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.

Features:

1. D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;

2. Adopt Combined full spectrum LED light source;

3. Customized One aperture: 8mm or 4mm optional;

4. Silicon photodiode array (double row 20 groups) Sensor;

5. Accurate spectrum and lab data, used for color matching and accurate color transmission;

6. High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen,;

7. USB interface,convenient for expansion of various functions;

8. Super dirt resistant and stable standard white calibration board;

9. Large capacity storage space;

10.2/10 standard observer's angle;

11. Camera locating position and Stabilizer cross measurement position;

12. PC software has powerful function expansion;

Application

Spectrophotometer ST50 is equipped with one customized measuring aperture, accurate color measurement and stable performance. It is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries, and can be used for fluorescent sample measurement.
