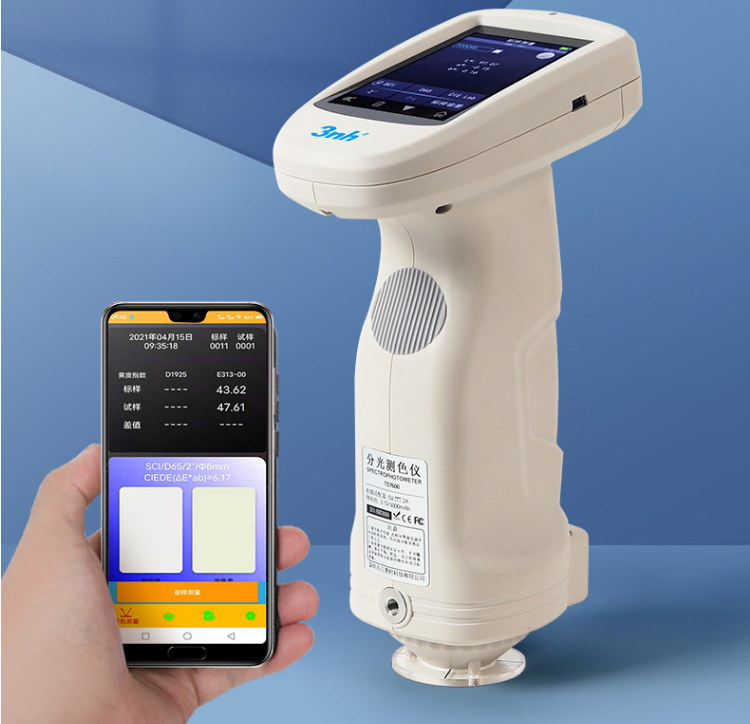

ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software

  • ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software
  • ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software
  • ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software
  • ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software
  • ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number ST50
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 37*17*31cm, 3KG, Carton Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8° Integrating Sphere Size 40mm
Sensor Silicon Photodiode Array Repeatibility ΔE*≤0.02
Inter-instrument Agreement ΔE*≤0.15 Specular Component SCI&SCE
High Light

Software 3nh Spectrophotometer

,

Chinese English 3nh Spectrophotometer

,

SCI SCE 3nh colorimeter
Leave a Message
Product Description

Cheap spectrophotometer price ST50 3nh d/8 colorimeter with software

Specification
Model
ST50 spectrophotometer
Optical Geometry
D/8 (diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ;excluded UV light source
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Characteristic
Adopt 3nh TS series core technology, customized measuring aperture
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing
and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size
Φ40mm
Light Source
Combined full spectrum LED light source
Spectrophotometric Mode
Flat Grating
Sensor
Silicon photodiode array (double row 20 groups)
Wavelength Range
400~700nm
Wavelength Interval
10nm
Measured Reflectance Range
0-200%
Measuring Aperture
One aperture: 8mm or 4mm optional
Specular Component
SCI&SCE
Color Space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other Colorimetric Index
Spectral reflectance,WI(ASTM E313,CIE/ISO, AATCC, Hunter, TaubeBergerStensby),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,555 tone classification, Carbon (My,dM), color density CMYK(A,T,E,M), Tint, Munsel chroma index (part of the
function is realized by PC software)
Observer Angle
2°/10°
Illuminant
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, able to customized light source
(total 41 kinds of light source, Partially realize through the PC software /APP software)
Displayed Data
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color simulation, Color Offset
Measuring Time
About 1.5s
Repeatability
Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after
white calibration)
Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)
Inter-instrument Error
MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Display Resolution
0.01
Measurement Mode
Single Measurement, Average Measurement(2-99times)
Locating Method
Camera Locating,stabilizer cross position
Dimension
L*W*H=129X76X217mm
Weight
Approx 600g
Battery
Li-ion battery, 8800 measurements within 8 hours
Illuminant Life Span
10 years, more than 1.5 million times measurements
Displayed Data
3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port
USB, blue-tooth ® 5.0
Data Storage
Standard 1000 Pcs, Sample 20000 Pcs, APP/PC mass storage
Software Support
Andriod,IOS,Windows,Harmony OS,Wechat applets
Language
Simplified Chinese, English, traditional Chinese
Operating Environment
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment
-20~50℃, 0~85%RH (no condensing)
Standard Accessory
Power Adapter, USB cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective
Cover, Wrist strap, Aperture (8mm or 4mm optional)
Optional Accessory
Micro Printer, Powder Test Box
Notes
The specifications are subject to change without notice.
ST50 spectrophotometer advantages
1. Large area photodiode array (dual 20 arrays) sensor
2. Adopt D/8 structure and SCI/SCE mode
3. Combination of 400-700nm full spectrum LED light source and UV light source
4. Camera positioning can clearly observe the measured area
5. Non-contact automatic white calibration,
ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software 0
ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software 1
ST50 spectrophotometer advantages
6. Place the base safely to ensure that the whiteboard is not dirty.
7. Offer 8 kinds of color measurement space and 41 kinds of observation light source
8. Many color indexes: WI (ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), Metamerism index of Mt, Staining Fastness, Color Fastness, Color Strength, Opacity, 8 degree gloss, 555 tone classification, blackness (My,dM), color density CMYK(A,T,E,M), Tint, Munsel chroma index (part of the function is realized by PC software)
ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software 2
Support Huawei Harmony OS, Android, IOS, Wechat applets, Windows programs
ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software 3
White and Black calibration
Product Description
ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software 4
The twin sister ST series of 3NH TS series is launched grandly, inherits the core technology of large-area array sensor and grating splitting in the field of color detection, and acutely analyzes the strong and weak light in 300-1100nm band. Our TS series has always been imitated, but never surpassed. TS series since its birth has been adhering to the quality first, with the purpose of quality, after years of continuous improvement, we can proudly say: ST series, let the color measurement is very accurate! In the future, 3nh will continue to practice the mission of "specialized and innovation" enterprise and high-tech enterprise, overcome difficulties and continue to innovate on the road of testing instruments, so that our partners can have a wonderful high accuracy and quality measurement instrument.

Spectrophotometer ST50 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 20 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST50 spectrophotometer is easily controlled within 0.03, and the Inter-instrument error delta E* AB is controlled within 0.2, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
Packing & Delivery
ST50 3nh Spectrophotometer D / 8 Colorimeter SCI SCE With Software 5
Size
37*17*31cm
Gross weight
3kg
Standard accessory
Power Adapter, USB cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective
Cover, Wrist strap, Aperture (8mm or 4mm optional)
Optional accessory
Micro Printer, Powder Test Box
