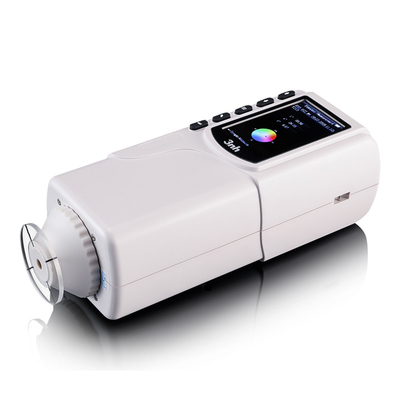

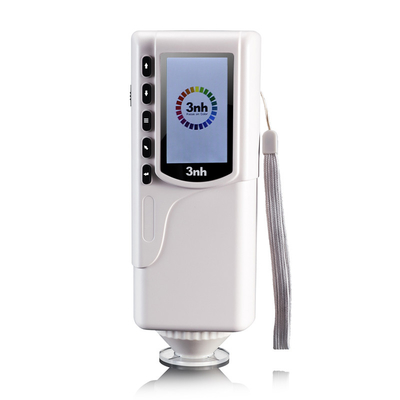

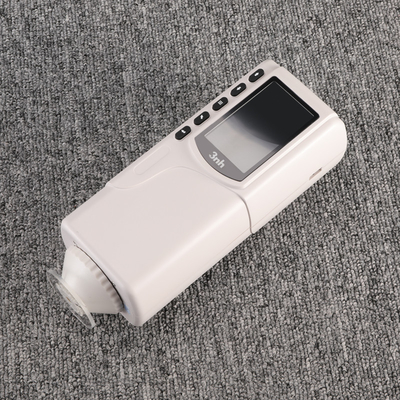

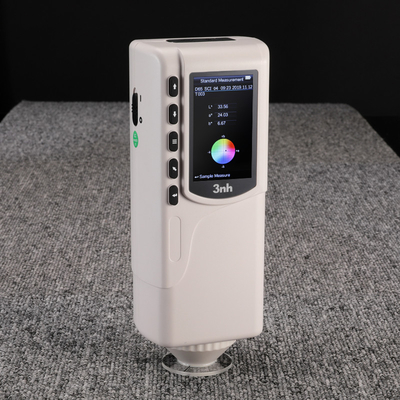

NR110 3nh Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer

  • NR110 3nh Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer
  • NR110 3nh Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer
  • NR110 3nh Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer
  • NR110 3nh Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer
Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number NR110
Minimum Order Quantity 1pcs
Packaging Details instrument box size of packaging 435 x 205 x 345mm
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Color Spectrophotometer,colorimeter Instrument Application Paint Used Spectrophotometer,Textile,spectrophotometer
Wavelength Range 400-700nm,360nm~780nm Observer 2°/10°
Sample Order Yes Delivery Day 1 Working Days After Payment
Power Electronic Wavelength Pitch 10nm
Illuminating/viewing Geometry 8/D
High Light

LED Light 3nh Colorimeter

,

Plastic Metal 3nh Colorimeter

,

10nm Color Spectrum Analyzer
Leave a Message
Product Description

NR110 Precision Colorimeter

New Functions

Double Locating: Illuminating locating and cross locating
Double Measurement End Face: Large area measurement and small area measurement
New Integrating Sphere Design: More stable measurement
Equipped with Rechargeable High-Capacity Li-ion Battery

NR110 3nh Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer 0
Product Advantages

a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
b. Double Locating: Illuminating locating and precise cross locating.
c. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
d. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
e. 4mm Measuring Aperture.
f. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
g. Configure CQCS3 software. Connect PC computer to realize more functions.
h. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
i. Hand-head structure: small and convenient; make the measurement easier.
j. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
k. Spending huge sums on high-end mold. Product consistency approaches 100%.
l. High cost performance: large output, good quality, cheap products.

NR110 3nh Colorimeter LED Light Portable Test Plastic Metal Color Spectrum Analyzer 1
Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110)




NR110 Technical Specifications

Illuminating/Viewing Geometry
8/d
Measuring Aperture
Φ4mm
Detector
Silicon photoelectric diode
Locating
Illuminating Locating/Cross Locating
Measurement End Face
Large stable end-face and small concave-convex end-face
Color Space
CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula
△E*ab △L*a*b* △E*C*h*
Light Source
D65
Light Source Device
LED blue light excitation
Errors Between Each Equipment
≤0.80ΔE*ab
Storage
100pcs standards 20000pcs samples
Repeatability
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Language
English/Chinese
Weight
450g
Dimension
205×67×80 mm
Power source
Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life
5 years, more than 1.6 million measurements
Charging Time
8 hours--100% electricity
PC Software
CQCS3 Software
Printer (optional)
Miniature thermal printer
