Portable Coffee Roast Color Analyzer 3nh Spectrophotometer With 8mm Aperture

Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number TS7010
Minimum Order Quantity 1pcs
Packaging Details instrument box size of packaging 435 x 205 x 345mm
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength Range 400-700nm,360nm~780nm Observer Angle 2°/10°
Wavelength Pitch 10nm Product Name Color Spectrophotometer,colorimeter Instrument
Power Electronic Measurement Range Color Test Machine
Application Paint Used Spectrophotometer,Textile,spectrophotometer,colorimeter Data Memory 30000 Sample,1000 Standards
High Light

3nh Coffee Roast Color Analyzer

,

coffee 3nh Spectrophotometer

,

roast 3nh Spectrophotometer

Leave a Message
Product Description

Introduction:

TS7010 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 24) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.1. The measurement speed and convenience of the operation makes it easy to use. TS7010 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 8 mm aperture, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

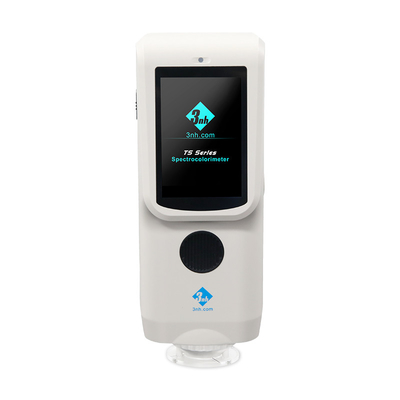

Portable Coffee Roast Color Analyzer 3nh Spectrophotometer With 8mm Aperture 0



Application

With 8mm aperture, TS7010 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

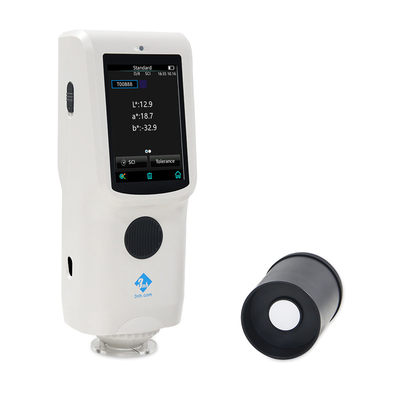

Portable Coffee Roast Color Analyzer 3nh Spectrophotometer With 8mm Aperture 1

Specification

Model TS7010
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI Mode
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source
Spectrophotometric Mode Flat Grating
Senso Silicon photodiode array (double row 24 groups)
Wavelength Range 400~700nm
Wavelength Interval /
Semiband Width 10nm
Measured Reflectance Range L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelength specified by the user (default: 550nm)
Measuring Aperture Φ8mm
Specular Component SCI
Color Space CIE LAB,XYZ,Yxy,LCh
Color Difference Formula ΔE*ab,ΔE*00
Other Colorimetric Index /
Observer Angle 10°
Illuminant D65,A,F2(CWF)
Displayed Data Reflectivity (the user specifies the reflectivity at 1 specific wavelength), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy 0.1
Measuring Time About 1.5s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Stabilizer cross position
Dimension L*W*H=81X71X214mm
Weight About 460g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB
Data Storage Standard 500 Pcs, Sample 10000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture
Optional Accessory USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of the product
