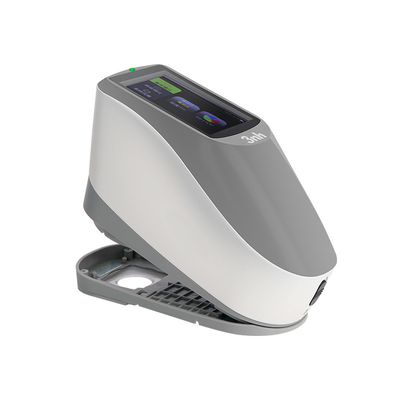

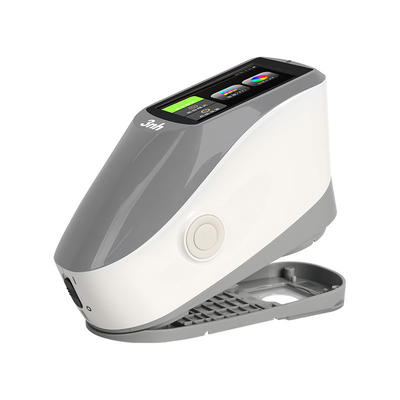

3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing

  • 3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing
  • 3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing
  • 3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing
  • 3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YD5010 PLUS
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Geometry 45/0(45 Ring-shaped Illumination, 0 Degree Viewing Angle) Repeatibility ΔE*≤0.04
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB Power Electronic
Wavelength Range 400~700nm Measuring Aperture 2MM
High Light

Concave Grating color spectrophotometer

,

Printing color spectrophotometer

,

45/0 Portable Density Meter
Leave a Message
Product Description
Product Description



Portable density meter 45/0 color spectrophotometer densitometer for printing 3nh YD5010 PLUS

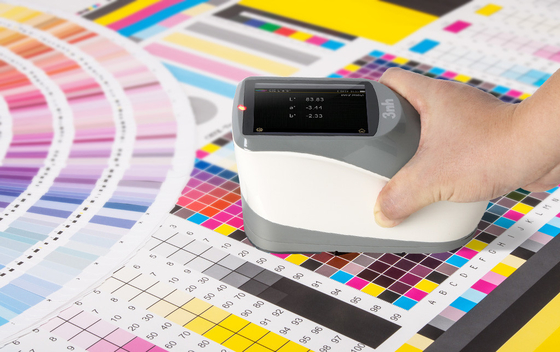

YD5010 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.
3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing 0
Model
YD5010 plus spectrodensitometer
Measurement Geometry
45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Features
Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics
and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of
optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source
Combined LED Light, UV Light
Spectral separation device
Concave Grating
Detector
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400~700nm
Wavelength Pitch
10nm
Half Bandwidth
10nm
Measurement Conditions
Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards
ISO Status A, E, I, T
Density index
Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error
and gray level
Measurement aperture
Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces
CIE LAB,XYZ,Yxy,LCh
Color Difference Formula
ΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index
/
Observer Angle
2°/10°
Illuminants
A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time
About 1.5s
Repeatability
Density: Within 0.01 D

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white
calibration) Except M3
Inter-instrument Error
Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode
Single Measurement, Average Measurement(2-99)
Size(L*W*H)
184*77*105mm
Weight
About 600g
Power source
Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span
5 years, more than 3 million times measurements
Display
3.5-inch TFT color LCD, Capacitive Touch Screen
Interface
USB,
Data memory
10000 pcs
Language

Simplified Chinese, English, Traditional Chinese
Working Environment
Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment
Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory
Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration
Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory
Micro Printer
Notes: The specifications are subject to change without notice.
Packing & Delivery
3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing 1
3nh YD5010 PLUS Color Spectrophotometer 45/0 Portable Density Meter For Printing 2

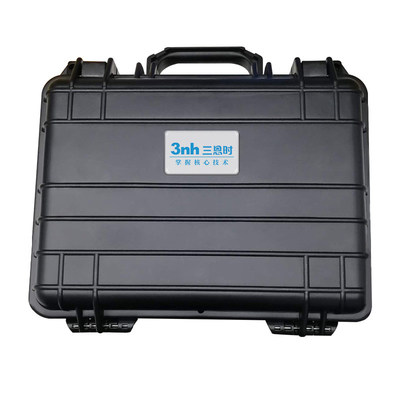

Standard Instrument packing
