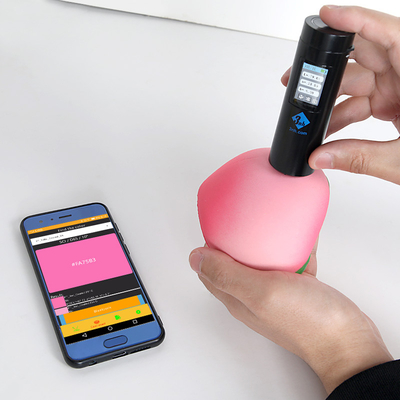

The CR4505 color reader is developed by combining advanced color sensors with rich APP applications. It adopts the 45/0 (45 ring-shaped illumination, vertical viewing) geometric optical structure in line with CIE No.15,and realizes the integration of the micro color difference meter and the mobile phone color reader. It is commonly used for color difference quality control in plastic electronics, paint coatings, textile and garment printing and dyeing, ceramics and other industries. You can identify and find color cards through mobile phone APP, and you can use it anytime and anywhere to capture color inspiration.

Technical Advantages:

1.Measurement precision Repeatability
With repeatability less than or equal to 0.1 display accuracy 0.1,just You can get accurate color measurements with one click.

2.Contact automatic calibration

Contact automatic whiteboard calibration is available, professional standard whiteboard reflectivity R%≥92%, good surface uniformity. It has high stability and can obtain repeated and accurate data.

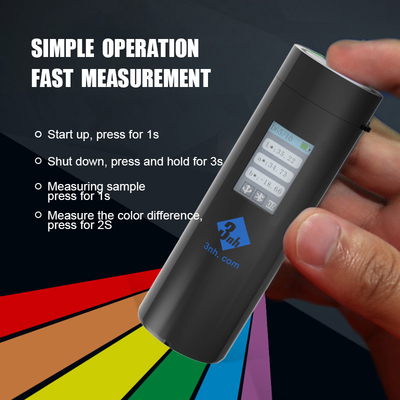

3.Multifunctional“Smart Button”

The built-in "smart button" of the instrument can independently complete the measurement function setting or test data review. It does not need to connect a mobile phone and a computer. A single machine can realize all the functions of the color difference meter; and at the same time, it can be connected to the mobile phone APP or computer software, taking into account the various functions of the color difference measurement and color management.

<img alt="Multifunctional“Smart Button" "="" data-cke-saved-src="/photo/Silkspectrophotometer/editor/20230321175849_70807.jpg" src="/photo/Silkspectrophotometer/editor/20230321175849_70807.jpg" style="margin: 0px auto; padding: 0px; border: 0px; font-style: inherit; font-family: inherit; vertical-align: middle; box-sizing: border-box; display: block; max-width: 100%; outline: 0px; text-size-adjust: none; -webkit-tap-highlight-color: rgba(0, 0, 0, 0);">

4.Professional integrating sphere dual optical path design

Professional advanced integrating sphere coating, dual optical path sensor and full-spectrum light source ensure the stability and accuracy of the measurement results.

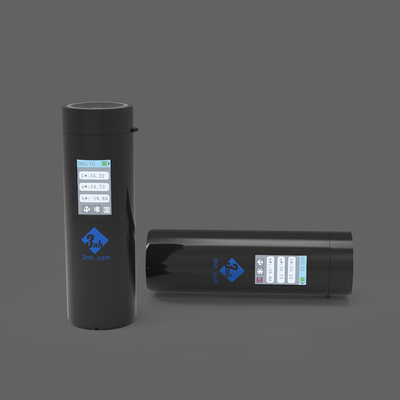

5. Lightweight and Portable

Easily put it in your pocket, carry it with you, worry-free measurement.

6.Rechargeable Lithium Battery
Type-c interface, can do tests continuously for 12,000 times in a single full charge.

7.Higher Quality

Using industrial-grade real-time processing MCU, Bluetooth interface 5.0 transmission is more stable and reliable.

8.Diversified Data Display Modes

The Color Reader CR4505 with APP can directly display the sample color value, color difference value, pass/fail result, color simulation, color deviation, reflectance and other data, which is convenient for viewing and greatly improves the user's work efficiency.

9,Carrying massive color databases

APP synchronizes mass storage, can quickly check color data, analyze and compare.

Use the App to build your private color database in the cloud, without having to carry heavy color cards, you can use CR4505 to find the closest color among multiple color cards anytime and anywhere.

Technical Specification
