45°/0° Geometry Paint Matching Spectrophotometer , Color Measuring Device Ns800
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | 45°/0 | Sphere Size | Φ58mm |
|---|---|---|---|
| Repeatibility | ΔE*≤0.04 | Inter-instrument Agreement | ΔE*≤0.2 |
| Wavelength Range | 400-700nm | Measuring Aperture | Φ8mm |
| High Light | handheld color meter,data colour spectrophotometer,Geometry Paint Matching Spectrophotometer |
||
Product Description

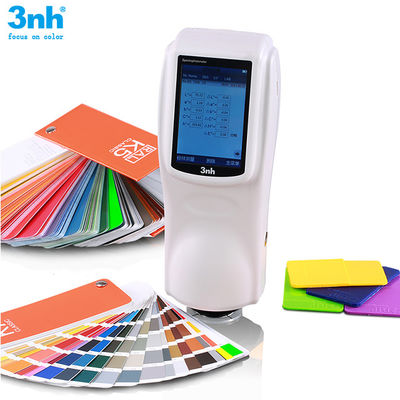

3nh color measuring spectrophotometer ns800 with 45°/0° Geometry
NS800 spectrophotometer features a 3.5" ultra-large display with touch-screen function which makes the operation quite simple, the interface quite friendly. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld spectrophotometer.
NS800 spectrophotometer adopts a 58mm ultra-large integrating sphere which can homogenize light better, and the 45°/0 optical geometry structure conforming to the standards CIE, ISO, ASTM, DIN, all of which make its accuracy incomparable.
Repetitive error is less than 0.04ΔE*ab, inter-instrument error is less than 0.2ΔE*ab, which make its stability and reliability of measurement very superior.
NS800 spectrophotometer is configured with 2 types of observer angles, multiple light source modes, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NS800 can excellently fulfill all kinds of requirements for color measurements in different industries.
Technical Specification
| Parameters | Spectrophotometer NS800 |
| Optical Geometry | 45°/0 |
| Inte-grating Sphere Size | Φ58mm |
| Measuring Aperture | Φ8mm |
| Repeatibility | ΔE*≤0.04 |
| Inter-instrument Agreement | ΔE*≤0.2 |
| Observer Angle | 2° & 10° |
| Wavelength Range | 400-700nm |
| Wavelength Pitch | 10nm |
| Reflectance Range | 0-200% |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v |
| Displayed Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Strength, Color Stain, Color Fastness |
| Illuminant | D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12 |
| Illuminant Device | Combined LED Light |
| Illuminant Lifespan | 5 years, More than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Data Storage | 1000 Standards, 15000 Samples |
| Data Port | USB |
| Display Size | TFT 3.5" |
| Touch-Screen | Yes |
| Working Temperature | 0~40℃(32~104℉) |
| Storage Temperature | -20~50℃(-4~122℉) |
| PC Software | SQC8 |
| Weight | 600g |
| Dimension | 90*77*230mm |
| Battery | 3200mAh Large Capacity Li-ion Battery |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap. |
| Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box |
Application Industry
Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.
Frequently Asked Questions
1. Which models are the equivalent models to NS800?
Answer: BYK 6801 Spectro is the equivalent models to 3nh NS800 (About color measurement function).
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
