D65 Illuminant Color Measurement Equipment Portable Structure Ergonomic Design
Product Details
| Measuring Aperture: | Φ8mm | PC Software: | CQCS3 Software |
|---|---|---|---|
| Illuminant: | D65 | Inter-instrument Agreement: | ΔE*≤0.4 |
| Illuminant Device: | Combined LED Light | Data Port: | USB |
| Highlight |
portable spectrophotometer colorimeter,colour measuring instruments,D65 Illuminant Color Measurement Equipment |
||
Product Description

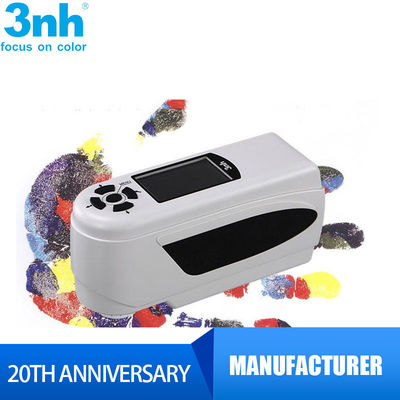

8mm Measurement Aperture Color Test Colorimeter Silk NH300 Colour Meter with PC Software
Silk NH300 colorimeter features the function of white and black calibration and also a simple interface, making it's very convenient to measure. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.
It's used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.
Portable Colorimeter Functional Features
| NH300 portable colorimeter | NH310 portable colorimeter | |
| Illuminating/Viewing Geometry | 8/d | 8/d |
| Measuring Aperture | Φ8mm | Φ8mm/Φ4mm |
| Detector | Silicon photoelectric diode | Silicon photoelectric diode |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness |
| Color Difference Formula | △E*ab △L*a*b △E*C*h | △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter |
| Light Source | D65 | D65 D50 A |
| Light Source Device | LED blue light excitation | LED blue light excitation |
| Errors Between Each Equipment | ≤0.40ΔE*ab | ≤0.40ΔE*ab |
| Storage | 100pcs standards 20000pcs samples | 100pcs standards 20000pcs samples |
| Repeatability |
Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate |
Standard deviation within ΔE*ab 0.06 Average of 30 measurements of standard white plate |
| Weight | 500g | 500g |
| Dimension | 205×70×100 mm | 205×70×100 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements | 5 years, more than 1.6 million measurements |
| Charging Time | 2 hours (first time 8 hours--100% electricity) | 2 hours (first time 8 hours--100% electricity) |
| Measurement Times Before Recharging | More than 3000 times | More than 3000 times |
| Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation | -10~40℃, relative humidity 0~85% with no condensation |
| Data Interface | USB | USB |
| Extended Aperture (optional) | - | Φ8mm extended aperture, available for measuring concave surface |
| Printer (optional) | Miniature thermal printer | Miniature thermal printer |
Application Industry
Silk colorimeter is able to be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
