Small Aperture Micro Tri Gloss Meter Continuous Mode For Hardware Industries
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 60° | Measuring Area(mm) | 1.5*2mm |
|---|---|---|---|
| Measuring Range | 1000 GU | Measuring Time | 0.5S |
| Software | GQC6 | Division Value | 0.1GU |
| High Light | paint gloss meter,60 degree gloss meter,Small Aperture Micro Tri Gloss Meter |
||
Product Description

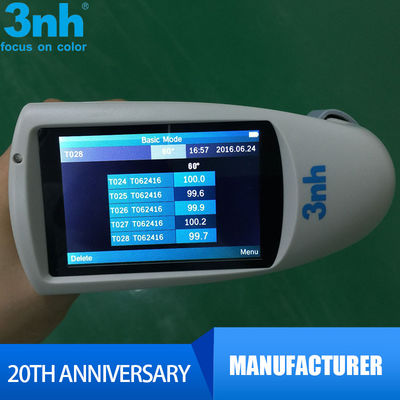

3nh NHG60M micro aperture gloss meter with small aperture 1.5*2mm
NHG60M micro aperture gloss meter adopts small aperture 1.5*2mm, with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTMD2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.NHG60M gloss meter can test material with gloss (0-100Gu)and universally apply to paint,ink,stoving and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurementan d gloss data transmission.
Features:
1. Small aperture: 1.5*2mm
2. Display 5 sets of measurement data, good for comparison
3. Continuous mode to check uniformity over large areas
4. Connect to PC, more extend functions
5. Input gloss value manually
6. Large touch screen operation, easy to use
7. Built-in lithium ion rechargeable battery.
Warranty:
3nh offer one year product warranty from the purchased date and lifetime maintenance (except consumables), in the absence of man-made damage and cases of force majeure.
Software:
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
Specifications:
| NHG60M Micro Aperture Gloss Meter | |
| Model : | NHG60M |
| Measure Angle | 60° Comply with standard ISO 2813,GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 1.5*2 |
| Measurement Range | 0~1000GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5 , ± 1.5% |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery, >10000 times(within 8 hours) |
| Viewing Screen | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/RS-232 |
| Data Storage |
Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000 |
| Operation Temperature | 0~40 deg. |
| Storage Temperature | -20~50 deg. |
| Humidity | <85% relative humidity, no condensation |
| Optional Accessories | Miniature Printer |
Standard Accessories
| Standard Accessories | |
| 1 | Power Adapter |
| 2 | USB Cable |
| 3 | User Manual |
| 4 | CD (Including QC Software) |
| 5 | Calibration Plate |
