Touch Screen Gloss Measurement Units , Stone Gloss Meter Data Transmission
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 20/60/85 Degree | Measuring Size | 20°:10x10 60°:9x15 85°:5x36 |
|---|---|---|---|
| Standard | ASTM D 523 And ASTM D 2457 | Range | 2000gu |
| Tolerance | ±1.2, ±1.2% | Language | Chinese, English |
| High Light | 60 degree gloss meter,portable gloss meter,Touch Screen Gloss Measurement Units |
||
Product Description

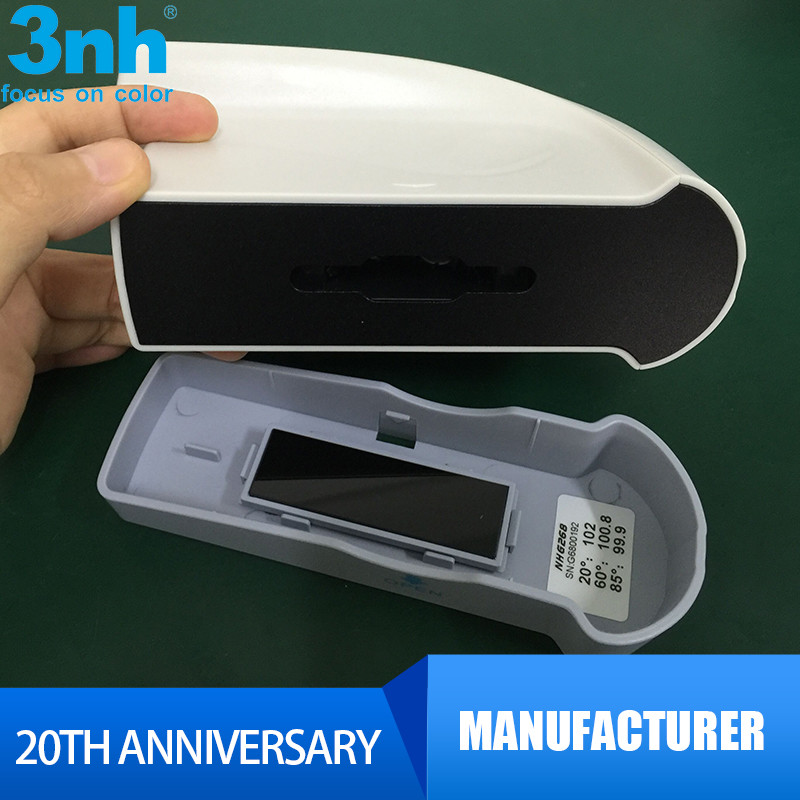

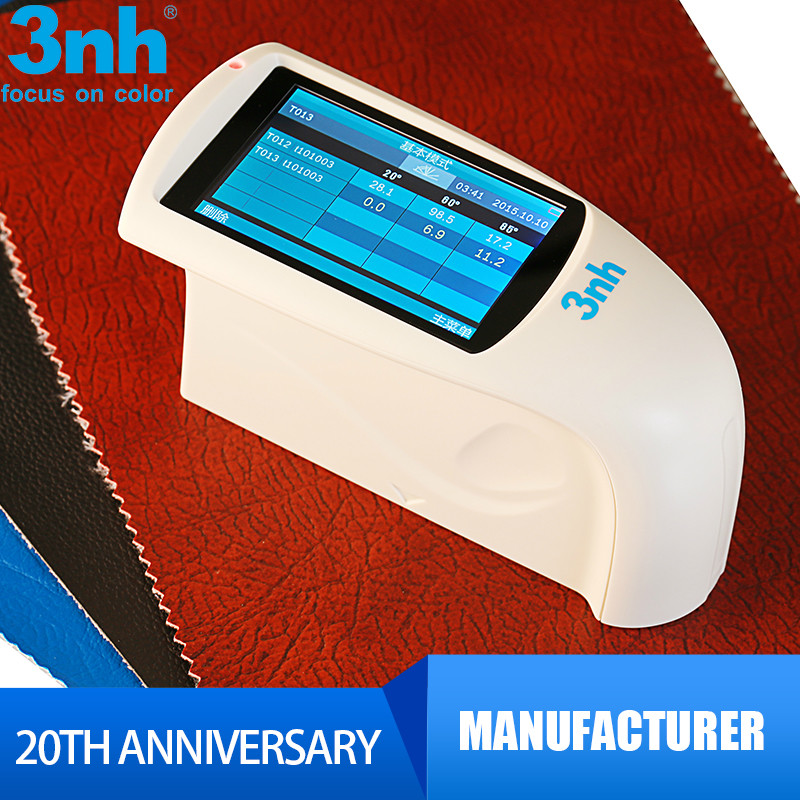

3NH NHG268 2000GU Touch Screen Gloss Meter with 20/60/85 degree
Features
1. 20, 60 and 85° in one: from high to low gloss
2. One button for all angles measurement at the same location
3. Display 5 sets of measurement data, good for comparison
4. Continuous mode to check uniformity over large areas
5. Connect to PC, more extend functions
6. Input gloss value manually
7. Large touch screen operation, easy to use
Brief Introduction
NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Technical Specification
| Model | NHG268 gloss meter |
| Measuring Area | 20°: 10x10mm 60°: 9x15mm 85°: 5x36mm |
| Measuring Range | 20°:0~2000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measuring Mode&Storage | Basic Mode: 1000 Statistical Mode: 5000 Continuous Mode: 5000 |
Standard Accessories
| Standard Accessories | |
| 1 | Power Adapter |
| 2 | USB Cable |
| 3 | User Manual |
| 4 | CD (Including QC Software) |
| 5 | Calibration Plate |
