60 Degree Digital Gloss Meter Concise Appearance For PVC Window Profile
Product Details
| Dimension: | L*W*H : 160mm*75mm*90mm | Measure Angle: | 60° |
|---|---|---|---|
| Measuring Range(GU): | 1000Gu | Measuring Area (mm): | 9X15 |
| Errors: | ±1.2 ,±1.2% | Interface: | USB/RS-232 |
| Highlight |
paint gloss meter,60 degree gloss meter,Digital Gloss Meter Concise Appearance |
||
Product Description

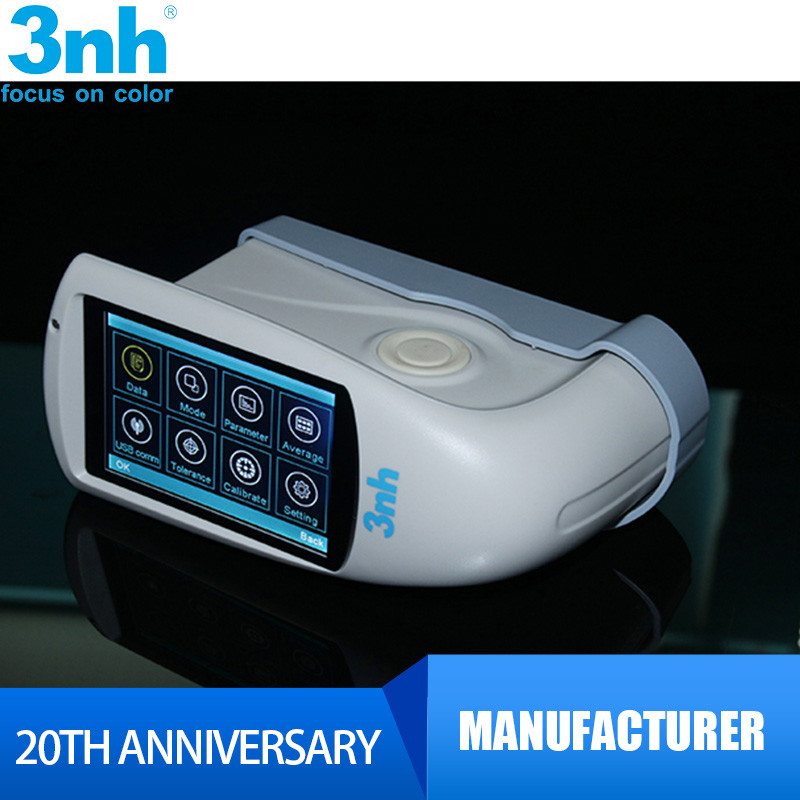

Silk NHG60 1000 gu Touch screen 60 degree single angle glossmeter for PVC window profile
Silk NHG60 1000 gu Touch screen 60 degree single angle glossmeter for PVC window profile features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. Silk NHG60 1000 gu Touch screen 60 degree single angle glossmeter for PVC window profile conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
Silk NHG60 1000 gu Touch screen 60 degree single angle glossmeter for PVC window profile can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Main Features
1. 60° angle for semi gloss
2. Concise appearance, feel good
3. Display 5 sets of measurement data, good for comparison
4. Built-in lithium ion rechargeable battery
5. Basic model measurement can meet basic glossiness testing requirements
6. One button for all angles measurement at the same location
7. Comply with international standards
8. Stable performance, easy to read data
Calibration Board
Name: Calibration Board
Brand: Silk
Original: China
used for glossmeter calibration
Specification
| Parameters | Gloss Meter NHG60 |
| Measuring Angle |
20° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measurement Standard | Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 60°: 9x15mm |
| Measuring Range | 60°:0~1000GU |
| Division Value | 0.1GU |
| Measuring Mode&Storage | Basic Mode: 1000 |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±1.2, ±1.2% |
| Measuring Time |
0.1s |
How many different angles shall we have for gloss meter?
High Gloss - 20 or micro-gloss 20
A smooth and highly polished surfaces reflect images distinctly. The incident light is directly reflected on the surface, i.e. only in the main direction of reflection. The angle of incidence is equal to the angle of reflection.
Semi Gloss - 60 or micro-gloss 60
On rough surfaces the light is diffusely scattered in all directions. The image forming qualities are diminished: A reflected object does no longer appear brilliant, but blurred.
The more uniform the light is scattered, the less intense is the reflection in the main direction and the duller the surface will appear. We have several models with 60 degree, such as NHG60, HG60, etc.
High and Semi Gloss - 60/20
One Gloss meter does double work.
Low Gloss or Mat - 85 or micro-gloss 85
On very rough surfaces the light is diffusely scattered in all directions. The image forming qualities are much diminished: A reflected object no longer appears brilliant, but almost non-existent.
Measure all three modes - TRI-gloss (20/60/85)
When one requires measuring all three types of surfaces described above, we have two gloss meters that simultaneously measures all three geometries. They are NHG268 and HG268 with 20/60/85.
