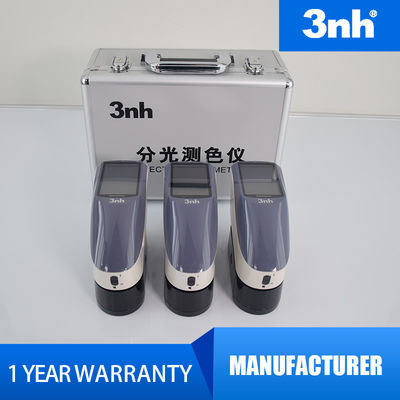

High Precision Handheld Color Spectrophotometer 4mm 1* 3mm Small Aperture
Product Details
| Model: | YS3020 | Illumination: | D/8 |
|---|---|---|---|
| Wavelength Range: | 400-700nm | Wavelength Pitch: | 10nm |
| Repeatability: | Chromaticity Value:Standard Deviation Within DeltaEab:0.04 | Size: | 184*77*105mm(L*W*H) |
| Lamp Life: | 5 Years, More Than 1.6 Million Measurements | Storage: | Standard: 1000, Sample: 28000 |
| Highlight |
paint matching spectrophotometer,handheld color meter,Small Aperture Handheld Color Spectrophotometer |
||
Product Description
YS3020 4mm 1*3mm small aperture precision handheld spectrophotometer 400-700nm
Brief Introduction:
YS3020 spectrophotometer comply with CIE No.15,GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7. YS3020 spectrophotometer also with SCI & SCE double measuring data, which also with optional samll apeture 4mm and 1*3mm aperture,we also welcome customized aperture to meet customers needs. YS3020 spectrophotometer also with extended PC software which will enable it be a good partner for colorist and color QC management.(Notes: the software is free)
Specification:
| Illumination/ obsevation System | Reflect: di:8-degress |
| Integrating Sphere Size | Ø48mm |
| Light Source | Combined Led Source |
| Wavelength Range | 400-700nm |
| Spectral Mode | Concave-Grating |
| Measuring Aperture | Customizable: Ø4mm / Ø8mm / Ø1*3mm |
| Light-included Mode | Both SCI & SCE Modes |
| Color Space | CIE LAB, XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| Other Colorimetric Data |
WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12,CWF,U30,TL83,TL84,U35 |
| Observer | 2-degree / 10-degree |
| Inter-instrument agreement | Within deltaE*ab 0.2 |
| Measuring Mode | Single Measurement, Average Measurements(2-99 times) |
| Locate Mode | Camera Mode |
| Size | 184*77*105mm(L*W*H) |
| Weight | about 600g |
| Battery Performanca | Li-ion Battery.5000 measurements within 8 hours |
| Screen | 3.5 inch TFT color LCD, Capacitive Touch Screen |
| Interface | USD/RS-232,Bluetooth 4.0 dual mode |
| Storage | Standard:1000,Sample:20000(SCI&SCE can be included in one data) |
| Language | Chinese, English |
| Standard Accessories | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover |
| Optional Accessories | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
Features:
1. d/8 geometrical optics, confims with CIE No.15, GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil;
2.Comined long life LED light source;
3. Swichable Ø8/4mm 1*3mm aperture,adapt to more samples;
4. USB, dual modes, widly useful;
5.Support both SCI & SCE;
6. Super stain-resistant and stable white calibration plate;
7. With full illuminants and many color indexes for color measurement;
8. PC software has a powful function extension.
