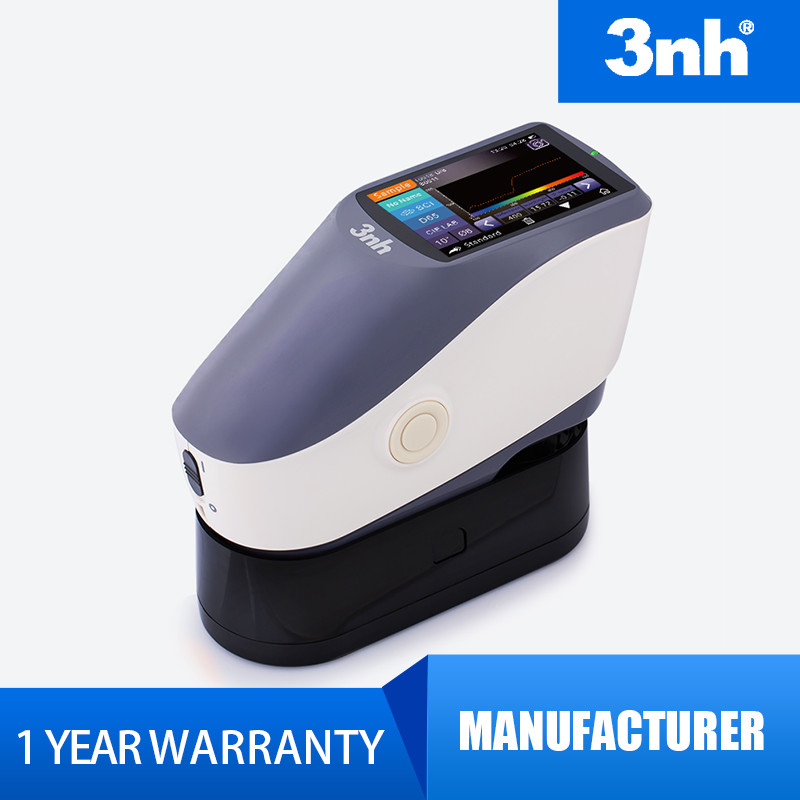

Portable Colour Matching Spectrophotometer , Colour Measurement Device High Precision

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number YS3010
Minimum Order Quantity 1pc
Packaging Details Standard Instrument Package
Delivery Time 2 woks days
Payment Terms T/T, Paypal.etc
Supply Ability 1000pcs/Month
Product Details
Model YS3010 Light Source Combined LED Sources
Sensor 256 Image Element Double Arrays CMOS Image Sensor Wavelength Range 400-700nm
Measuring Aperture 8mm Color Spaces CIE LAB,XYZ.Yxy,LCh,CIE LUV,Hunter LAB
Other Chrometric Data YI,WI,TI,MI,Strength,Staining Fatness,Cover Ratio Wholesale Welcome
High Light

hunter lab spectrophotometer

,

color measurement instruments

,

Portable Colour Matching Spectrophotometer High Precision

Leave a Message
Product Description

YS3010 Cheap Accuracy Portable Photometer Color Difference Spectrometer

Perfect Partner for color management

YS30 Series Spectrophotometer : Concave-Grating Spectral; USB/Bluetooth dual modes;Swichable Ø8/Ø4 mm Aperture.



YS3010, YS3020,YS3060 grating spectrophotometer are developed by 3nh independently, features with stable performance, precise measurement and powerful functions in leading position of some industry.



YS3060 UV Grating Spectrophotometer:

Full Illuminants +UV, 8mm & 4mm Apertures, SCI & SCE, Bluetooth Comm, High Precision.



YS3020 Grating Spectrophotometer:

Multi-illuminants,Customizable Aperture, SCI& SCE, Bluetooth Comm, High Precision.



YS3010 Grating Spectrophotometer:

4 Illuminants, 8mm Aperture,SCI&SCE, Bluetooth Comm,High Precision.

Quick Details Checking:



Illumination/ obsevation System D/8
Model Name YS3010(Basic Mode)
Color White+blue+black(Elegant Design)
Wavelength Range  400-700nm
Sensor 256 image Element Double Arrays CMOS Image Sensor
Measuring Aperture 8mm
Light-included Mode Both SCI & SCE Modes
Color Space

CIE LAB, XYZ,Yxy,LCh,CIE LUV,HunterLAB

Other Colorimetric Data

WI(ASTM E313, CIE/ISO, AATCC, Hunter),

YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity

Repeatability

Spectral reflectance: MAV/SCI, Standard devition within 0.1%(400-700nm:within 0.2%)

Chromaticity Value: Standard deviation within delta E*ab 0.05

Observer 2-degree / 10-degree
Inter-instrument agreement  Within deltaE*ab 0.2
Measuring Mode Single Measurement, Average Measurements(2-99 times)
Locate Mode  Camera Mode
Size 184*77*105mm(L*W*H)
Weight about 600g
Battery Performanca  Li-ion Battery.5000 measurements within 8 hours
Screen 3.5 inch TFT color LCD, Capacitive Touch Screen
Interface USD/RS-232,Bluetooth 4.0 dual mode
Storage Standard:1000,Sample:20000(SCI&SCE can be included in one data)
Language  Chinese, English
Standard Accessories Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessories Micro Printer, Powder Test Box
Notes The specifications are subject to change without notice.



Portable Colour Matching Spectrophotometer , Colour Measurement Device High Precision  0



Application Industry:



Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
