Accurate Handheld Color Spectrophotometer 4mm Small Aperture With PC Software
Product Details
| Illumination/Observation System: | D/8 Structure | Wavelength Range: | 400-700nm |
|---|---|---|---|
| Test Aperture: | 4nm | Reflectance Range: | 0-200% |
| Chromaticity Data: | WI,YI,Mt,color Strength,color Stain,color Fastness,opacity | Srorage: | 1000 Standards, 15000 Samples |
| Erros Between Each Instrument: | Within Delta E*ab 0.2 | Illuminant: | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Highlight |
handheld color meter,data colour spectrophotometer,4mm Small Aperture Handheld Color Spectrophotometer |
||
Product Description

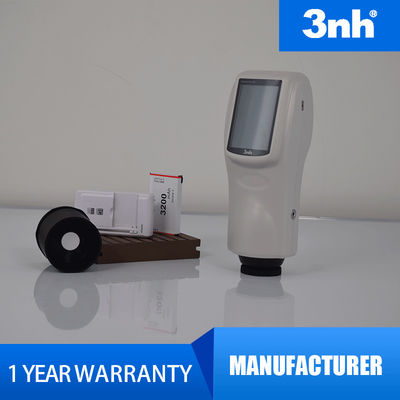

NS820 4mm small aperture accurate color spectrophotometer with PC software
Brief Introduction:
NS820 spectrophotometer is developed by Silk with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.
NS820 spectrophotometer dispaly complete relectance rate and input LABvalue manually； D/8 structure(diffuse illuminatio,8-degree viewing)； 3.5 inch large capacitive touch screen, fully functional touch control; The repeatability delta E*ab is within 0.04, errors is less than 0.2； Large capacity storage, more than 15000 data; PC software with powerful extension function;. 15 degree oblique angle screen, in line with the human eye observation; Oversized integarting sphere, more effective homogenization ray of lights; High hardware configuration with a number of innovative technology.
Applications:
NS820 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Specification:
| Model | NS820 |
| Illumination/observation system | d/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978. |
| Integrating sphere Size | Φ58mm |
| Light Source | Combined LED sources |
| Sensor | Silicon photodiode array |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Reflectance range | 0~200% |
| Measuring Aperture | Φ4mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV,LAB&WI&YI |
| Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h) |
| Other Chromaticity Data |
WI(ASTM E313,CIE/ISO,AATCC, Hunter), YI(ASTM D1925,ASTM 313), Metamerism Index (Mt), Color Strength Color Stain, Color Fastness |
| Observer | 2°/10° |
| Illuminant | D65,D50,A,C,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Display Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting |
| Measurement Time | 1.5s |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=90*77*230mm |
| Weight | 600g |
| Battery | Li-ion battery. 2800 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | 1000 Standards, 15000 Samples |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
| Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
