xProduct Details
| Model | NHG60 | Measuring Angle | 60 |
|---|---|---|---|
| Measuring Area | 9*15 | Measuring Range | 0-1000GU |
| Mode | Basic Mode; Statistic Mode; Continuous Mode | Dimesion | 160*75*90mm(L*W*H) |
| Interface | USD-RS-232 | Software | GQC6 QCsoftware |
| Highlight | 60 degree gloss meter,portable gloss meter |
||
Product Description

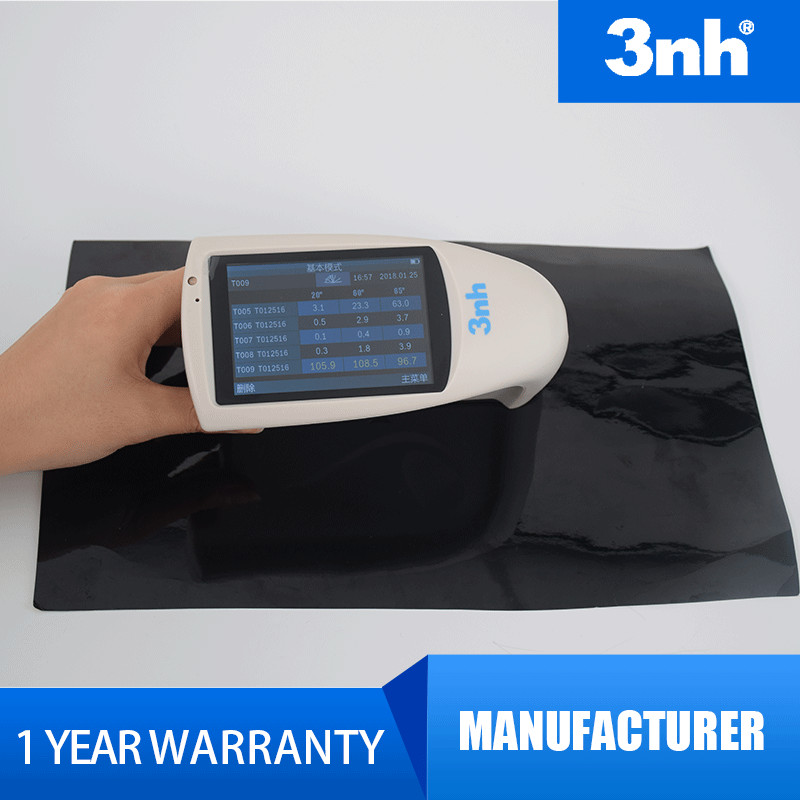

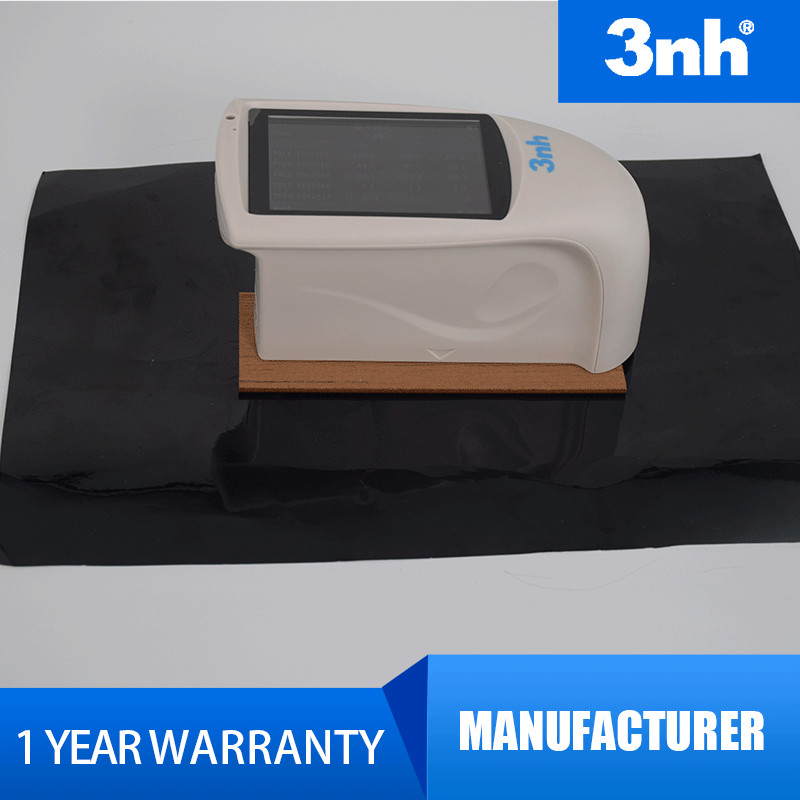

NHG60 60 degree universal application paint ceramic plastic gloss meter
Brief Introduction:
NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Features:
- 60° angle for semi gloss
- Display 5 sets of measurement data, good for comparison
- Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
- Continuous mode to check uniformity over large areas
- Connect to PC, more extend functions
- Input gloss value manually
- Large touch screen operation, easy to use
- Beauty appearance, good man-machine communication interface
- Powerful functions to meet many different requirements
- Large storage to save over 5000 data
- Built-in lithium ion rechargeable battery.
Specifications:
| NHG60 60° Precise Gloss Meter | |
| Model | NHG60 |
| Measure Angle | 60° Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457 |
| Measuring Area (mm) | 9X15 |
| Measurement Range | 0~1000GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.2 , ± 1.2% |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery, >10000 times(within 8 hours) |
| Viewing Screen | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/RS-232 |
| Data Save | Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
