Single Angle Smart Digital Gloss Meter 60 Degree With Continous Mode
|Place of Origin:||Shenzhen China|
|Certification:||CE, TUV, FCC, RoHs|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Unit|
|Price:||Please send inquiry|
|Packaging Details:||30*20*10cm, 1kg, with a carrying bag|
|Delivery Time:||1-5 Days|
|Supply Ability:||1000 Units per Month|
|Display:||TFT 3.5" Touch Screen||Measuring Area(mm):||60°:9x15|
|Measuring Range(GU):||60°:0~1000||Standard:||Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457|
|Tolerance:||±1.2, ±1.2%||Data Port:||USB|
60 degree gloss meter,
portable gloss meter

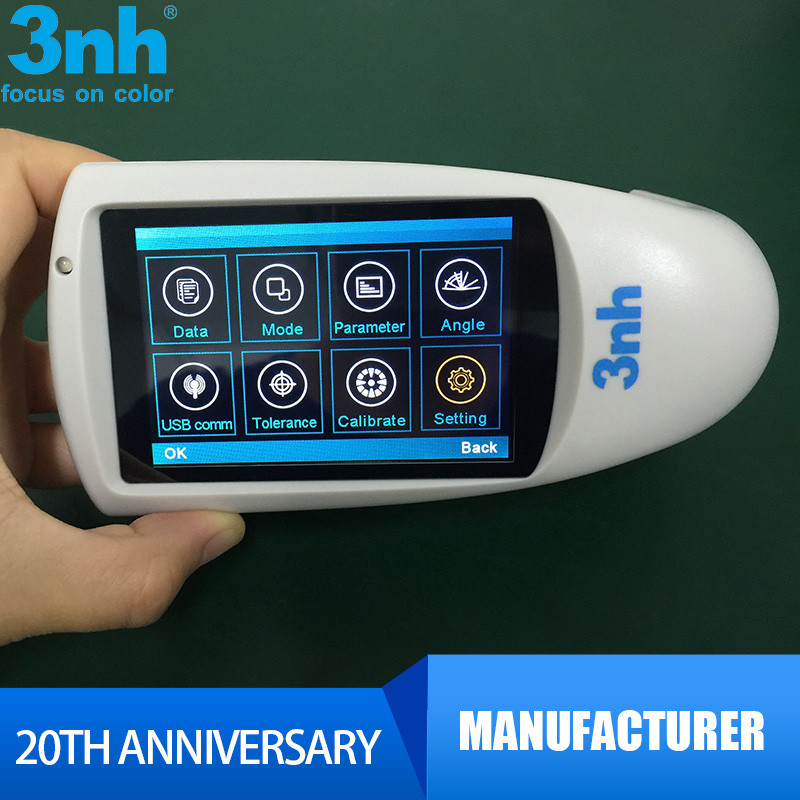

NHG60 Single Angle Precise Smart Gloss Meter with 60 Degree 1000 gu
NHG60 single angle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
As the whole world's first model of glossmeter which is fully screen-touch operational and with a ultra-large display, NHG60 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can also be manually input.
NHG60 gloss meter has three measuring modes: Basic Mode, the simplest sample measurement mode; Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the settings.
Now NHG60 gloss meter has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.
NHG60 Single Angle Precise Smart Gloss Meter
NHG60 gloss meter
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measurement Range Repeatability
0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Conform to the Working Requirements for JJG696 First Class Glossmeter
Corresponding with CIE 1931(2°) under CIE C Light Source
Yes, Capacitive Touch Screen
USB & RS232
3200mAh Li-ion Battery , >10000 times(within 8 hours)
Basic Mode: 1000; Statistical Mode: 5000; Continuous Mode: 5000
GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions.
<85% Relative Humidity, No Condensation
Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
