Paper Printing Data Colour Spectrophotometer Handheld Elegant Appearance
Product Details
| Optical Geometry: | 45°/0 | Color Space: | CIE LAB, XYZ, Yxy, LCh, CIE LUV |
|---|---|---|---|
| Repeatibility: | ΔE*≤0.04 | Inter-instrument Agreement: | ΔE*≤0.2 |
| Wavelength Range: | 400-700nm | Measuring Aperture: | Φ8mm |
| Highlight |
paint matching spectrophotometer,handheld color meter |
||
Product Description

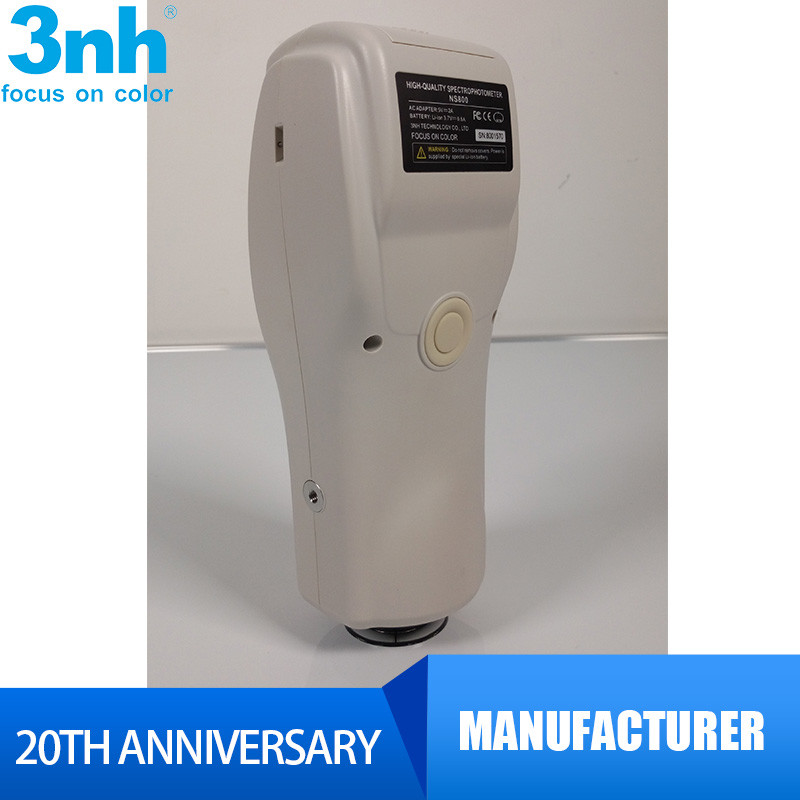

45°/0 Paper Printing Handheld Spectrophotometer with Color Managerment Software SCQ8 NS800
NS800 spectrophotometer has 45°/0 optical geometry structure conforming to the standards CIE, ISO, ASTM, DIN, all of which make its accuracy incomparable. It is compatible to get a very good test result with BYK 6801 spectrophotometer.

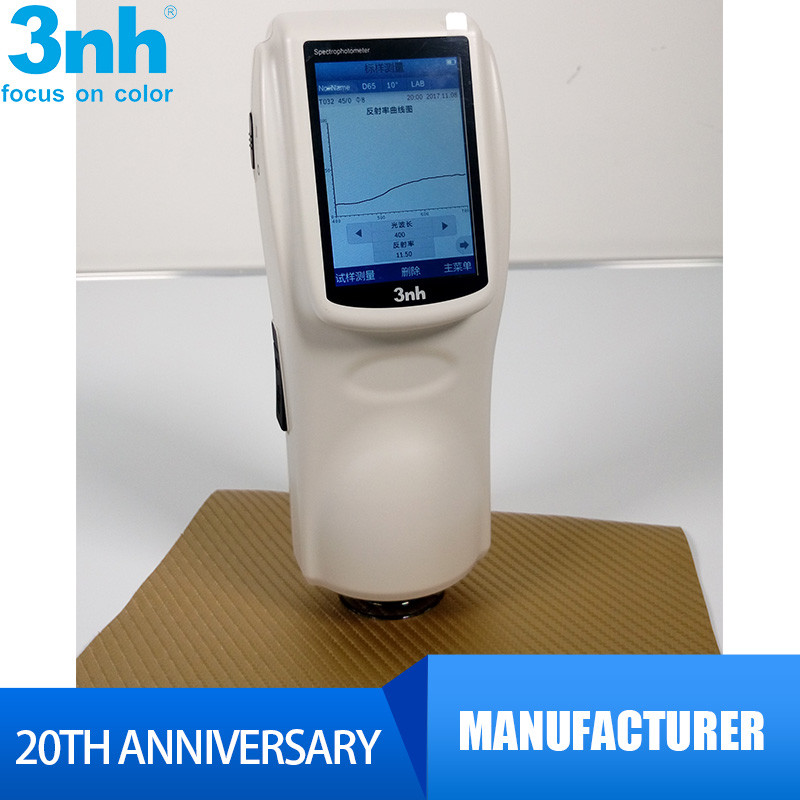

The 3.5" ultra-large display with touch-screen function makes the operation of NS800 quite simple, the interface quite friendly. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld spectrophotometer.
NS800 spectrophotometer adopts a 58mm ultra-large integrating sphere which can homogenize light better, and configured with 2 types of observer angles, 2° and 10°, multiple light source types, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NS800 can excellently fulfill all kinds of requirements for color measurements in different industries.
With a powerful PC software SQC8 which includes more extended functions, customers would do much easier measurement on software just with a mouse and a beautiful report will let it more professional.
Technical Specification
| Parameters | Spectrophotometer NS800 |
| Optical Geometry | 45°/0 |
| Inte-grating Sphere Size | Φ58mm |
| Measuring Aperture | Φ8mm |
| Repeatibility | ΔE*≤0.04 |
| Inter-instrument Agreement | ΔE*≤0.2 |
| Observer Angle | 2° & 10° |
| Wavelength Range | 400-700nm |
| Wavelength Pitch | 10nm |
| Reflectance Range | 0-200% |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v |
| Displayed Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Strength, Color Stain, Color Fastness |
| Illuminant | D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12 |
| Illuminant Device | Combined LED Light |
| Illuminant Lifespan | 5 years, More than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Data Storage | 1000 Standards, 15000 Samples |
| Data Port | USB |
| Display Size | TFT 3.5" |
| Touch-Screen | Yes |
| Working Temperature | 0~40℃(32~104℉) |
| Storage Temperature | -20~50℃(-4~122℉) |
| PC Software | SQC8 |
| Weight | 600g |
| Dimension | 90*77*230mm |
| Battery | 3200mAh Large Capacity Li-ion Battery |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap. |
| Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box |
