Food / Painting Colour Measuring Instruments CIE LAB Color Space USB Data Port
|Place of Origin:||Shenzhen, China|
|Certification:||CE, TUV, FCC, ISO9001, RohS|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Unit|
|Price:||Please send inquiry|
|Packaging Details:||46*25*38cm, 4.5kg, Alluminum Box|
|Delivery Time:||2-5 work days|
|Supply Ability:||500 Units per Month|
|Optical Geometry:||8°/d||Measuring Aperture:||Φ8mm & Φ4mm|
|Data Port:||USB||Storage Capacity:||100 Standards & 2000 Samples|
portable spectrophotometer colorimeter,
colour measuring instruments

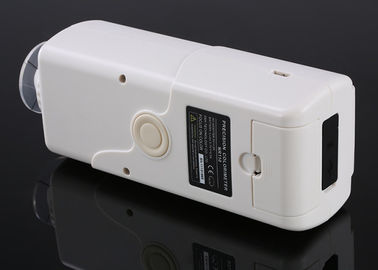

3nh Reliable Portable Colorimeter NR60CP Precise Color Reader with Two Apertures
|Measuring Aperture||Φ8mm & Φ4mm|
|Measurement Range||L: 0-100|
|Observer Angle||CIE 10°|
|Color Space||CIE LAB, CIE XYZ, CIE RGB, CIE LCh, CIE L*u*v|
|Color Difference Formula||ΔE*ab, ΔE*Ch, ΔE*CIE94, ΔE*Lab, ΔE*Hunter|
|Displayed Data||Colorimetric Value, PASS/FAIL Result, Color Offset|
|Other Chromaticity Data||
|Illuminant||D65, D50, A, C, F2, F6, F7, F8, F10, F11, F12|
|Illuminant Device||Combined LED Light|
|Illuminant Lifespan||5 years, More than 1.6 million measurements|
|Sensor||Silicon Photoelectric Diode Array|
|Data Storage||100 Standards, 2000 Samples|
|Display Size||TFT 2.7"|
|Battery||3200mAh Large Capacity Li-ion Battery|
|Standard Accessory||Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover.|
|Optional Accessory||Universal Test Components, Micro Printer, Powder Test Box|

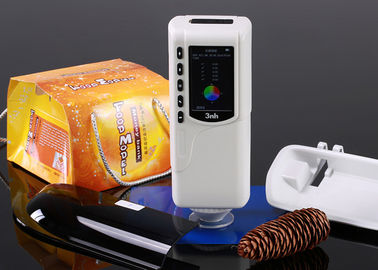

1. NR60CP colorimeter features a 2.7" TFT screen with four buttons beside which makes the operation quite simple, the interface quite friendly. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.
3. Repetitive error is less than 0.03ΔE*Lab, inter-instrument error is less than 0.2ΔE*Lab, which make its stability and reliability of measurement very good.
4. NR60CP colorimeter is widely applied to color control in different industries, such as plastics, painting and coating, textiles, leather, food, furniture.
5. NR60CP colorimeter also goes with a powerful PC software CQCS3 which includes more extended functions that can enormously facilitate your work.
6. With the configuration of powder test box, measurements of powder and particle can be implemented without hesitation.
Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring
struments to teach and study.
Frequently Asked Questions
1. Does NR60CP colorimeter have any equivalent instruments in market?
Answer: Yes, NR60CP is equivalent to CR-10Plus of KONICA MINOLTA. They almost can achieve the same color difference values between any two targets.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
