Accurate Portable Sphere Spectrophotometer , Integrating Sphere Spectrophotometer
Product Details
| Optical Geometry: | D/8° | SCE/SCI: | SPIN/SPEX, |
|---|---|---|---|
| UV Light Source: | Yes | Repeatibility: | 0.05 ΔE*ab On White Ceramic |
| Inter-instrument Agreement: | ΔE*≤0.15 | Measuring Aperture: | 20mm Or 14mm Or 6.5mm |
| Highlight |
colour measurement equipment,multi angle spectrophotometer |
||
Product Description

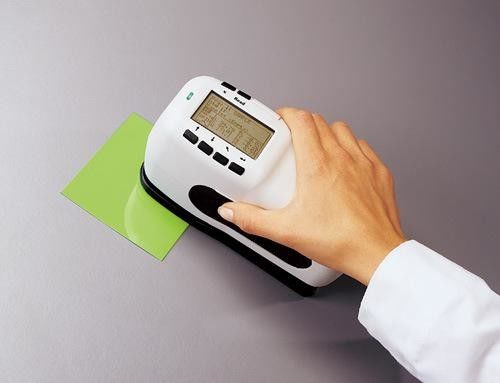

X-rite SP62 Portable Sphere Spectrophotometer replaced by CI62 spectrophotometer
The full line of SP Portable Sphere Spectrophotometers offers convenient, cost-efficient solutions designed to provide fast, precise color measurement information on a wide range of materials, such as paper, paint, plastics, and textiles. Depending on which SP Sphere Spectrophotometer Model you choose, absolute and difference measurements are displayed for a large number of colorimetric systems.
Differences:
SP60 is an affordable spectrophotometer; short-term repeatability: 0.10ΔCIE LAB on white ceramic (Standard deviation)
SP62 is a versatile spectrophotometer; short-term repeatability: 0.05ΔCIE LAB on white ceramic (Standard deviation)
SP64 is an ultimate spectrophotometer; short-term repeatability: 0.05ΔCIE LAB on white ceramic (Standard deviation)
This product has been discontinued. Talk to a color expert today about the Ci62 to upgrade your color management solution!
Benefits:
- Accurately measure reflective or uneven surfaces on a wide variety of products and packaging types.
- Ensure a color quality audit trail across multiple devices and locations to ensure consistent color and brand integrity in a supply chain.
- Access up to 4,000 reference samples stored in the device for fast access to existing data.
- Increase instrument up-time with optional dual-bay charging to use the Ci62 while charging the second battery.
- Remotely ascertain and optimize. With NetProfiler, users can apply corrections to improve measurement performance, with or without a PC connection.
The X-Rite Ci62 sphere spectrophotometer is the ideal mid-range solution for organizations with color-critical needs. With its embedded X-Rite NetProfiler, the Ci62 provides a complete track and trace process for consistent measurement across multiple devices and locations, with a 0.20 average delta E inter-instrument agreement.
Specifications
| Short Term Repeatability - White | .05 ΔE*ab on white ceramic |
|---|---|
| Measurement Geometry | d/8° |
| Inter-Instrument Agreement | 0.20 ΔE*ab avg. |
| Illumination Spot Size | 20mm or 14mm or 6.5mm |
| Lamp Life | Approx. 500,000 measurements |
| Light Source | Gas-filled tungsten lamp |
| Measurement Cycle Time | ≈ 2 seconds |
| Measurement Spot | 14mm or 8mm or 4mm |
| Measurement Time | ≈ 2 seconds |
| Photometric Range | 0 to 200% |
| Photometric Resolution | 0.01% |
| Spectral Analyzer | Blue-enhanced silicon photodiodes |
| Spectral Interval | 10nm |
| Spectral Range | 400nm-700nm |
| Spectral Reporting | 10nm |
| Color Differences | [√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference |
| Color Spaces | Lab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v* |
| Illuminants | A, C, D50, D65, F2, F7, F11 & F12 |
| Observers | 2° & 10° |
| Standard Indices | [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort |
| Reflectance Aperture(s) | 1 |
| Humidity | 5% to 85%, non-condensing |
| Operating Temperature Range | 50° to 104°F (10° to 40°C) |
| Storage Temperature Range | '-4° to 122°F (-20° to 50°C) |
| Dimensions (length, width, height) | 21.3 cm 9.1 cm 10.9 cm |
| Weight | 1.06 kg |
| Package Dimensions (length, width, height) | 51cm, 20cm, 41cm |
| Shipped Weight | '7kg |
| Communication Interface | USB 2.0, Bluetooth* |
| Import/Export Format | CSV |
| Instrument Display | Backlit Color Graphic LCD |
| Languages Supported | English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese |
| Software Development Kit | XDS4 |
| Battery | Li-ion |
| Voltage |
100-240VAC 50/60Hz,
12VDC @ 2.5A
|
| Sample/Measurement | 4000 |
| Standards | 1000 |
| Calibration | White and Zero |
| Embedded NetProfiler Support | Yes |
| NetProfiler Support | Embedded |
| PantoneLIVE Support | Via software |
| Pass / Fail | Yes |
| Sample Preview | Targeting window |
| Transform Support | Embedded |
| Warranty | 12 months |
| What's Included? | Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable, carry case |
