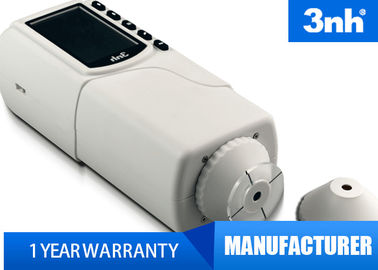

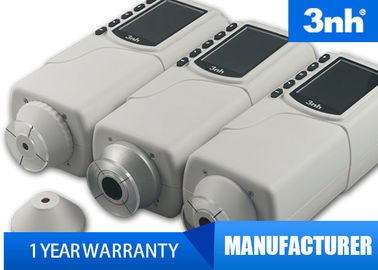

Handheld Color Difference Meter Small Aperture Integrating Sphere Design
Product Details
| Model: | NR110 | Illuminating/Viewing Geometry: | 8/d |
|---|---|---|---|
| Measuring Aperture: | 4mm | Color Space: | CIE L*a*b*c*h,CIEL*a*b, CIEXYZ |
| Errors Between Each Equipment: | ≤0.80ΔE*ab | PC Software: | CQCS3 |
| Highlight |
colour difference meter,paint color analyzer |
||
Product Description
Universal Application Handheld Color Reader Color Difference Meter with 4mm Aperture
Brief Introduction:
High cost-effective precise colorimeter features with powerful functions and excellent innovation technology.Double Locating: Illuminating locating and cross locating; Double Measurement End Face: Large area measurement and small area measurement; New Integrating Sphere Design: More stable measurement; Equipped with Rechargeable High-Capacity Li-ion Battery.
Applicable Industries:
NR110 colorimeter can be wildly used in the field of Plastics, Paints,Printing, Automobile, Textile, Medicine, food etc .
Specifications:
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ4mm |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Measurement End Face | Large stable end face and small concave-convex end face |
| Color Space |
CIEL*a*b*C*h* CIEL*a*b* CIEXYZ |
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80ΔE*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability |
Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
| Language | English/Chinese |
| Weight | 450g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 8 hours--100% electricity |
| PC Software | CQCS3 Software |
| Printer (optional) | Miniature thermal printer |
