Data Management Digital Gloss Meter For Marble / Ceramics High Performance
Product Details
| Model: | HG60 | Measuring Angle: | 60 |
|---|---|---|---|
| Measuring Area: | 9*15 | Division Range: | 0-300GU |
| Repeatability: | ±1.5 , ± 1.5% | Weight: | 350g |
| Display: | TFT 3.5 Inch | Wholesale: | Yes |
| Highlight |
60 degree gloss meter,portable gloss meter |
||
Product Description
Metal Ceramic Marble Plastic leather Glossiness Meter 0-300GU
Brief Introduction:
HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
GQC6 Software Introduction:
GQC6 software is used with Silk gloss meter for PC connection, measurement, data management, data export, print reports, etc.
Specifications:
| HG60 Economic Gloss Meter | |
| Model: | HG60 |
| Measuring Angle | 60° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 9x15 |
| Measuring Range | 0~300GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-300GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5 , ± 1.5% |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery , >10000 times(within 8 hours) |
| Display | TFT 3.5 inch |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Humidity | <85% relative humidity, no condensation |

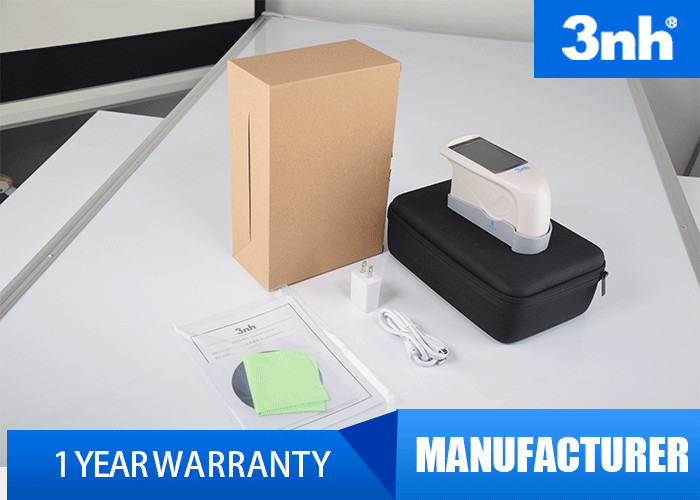

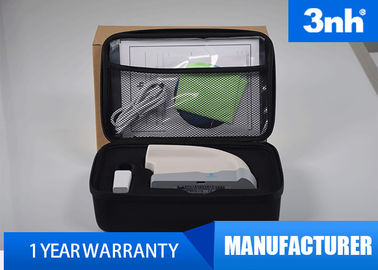

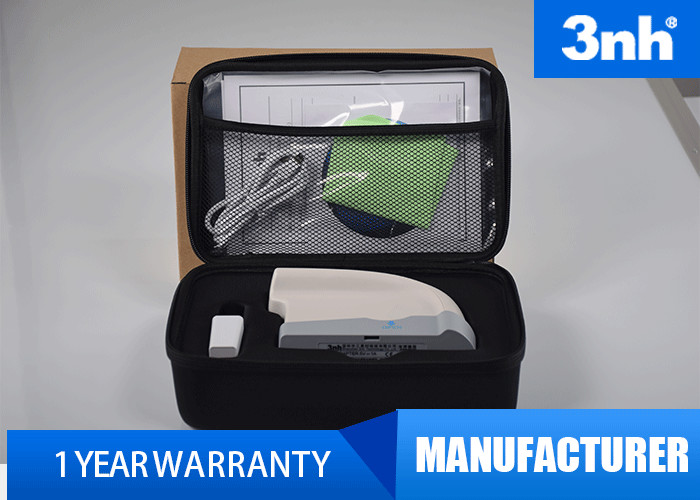

| Standard Accessories | Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
