YG60 60° Precise Gloss Level Measurement For Paint / Ink , CE TUV Standard
Product Details
| Measuring Angle: | 60 Degree | Measuring Area(mm): | 60°:9X15 |
|---|---|---|---|
| Measuring Range(GU): | 1000gu | Division Value: | 0.1GU |
| Tolerance: | ±0.2GU , ±0.2%GU | Data Port: | USB |
| Highlight |
60 degree gloss meter,portable gloss meter |
||
Product Description

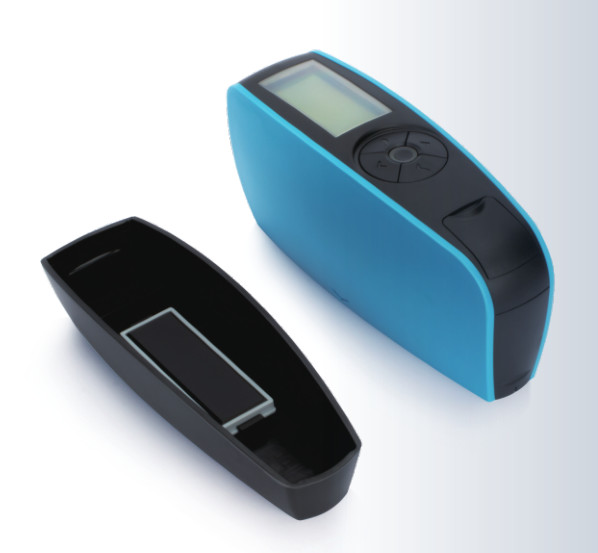

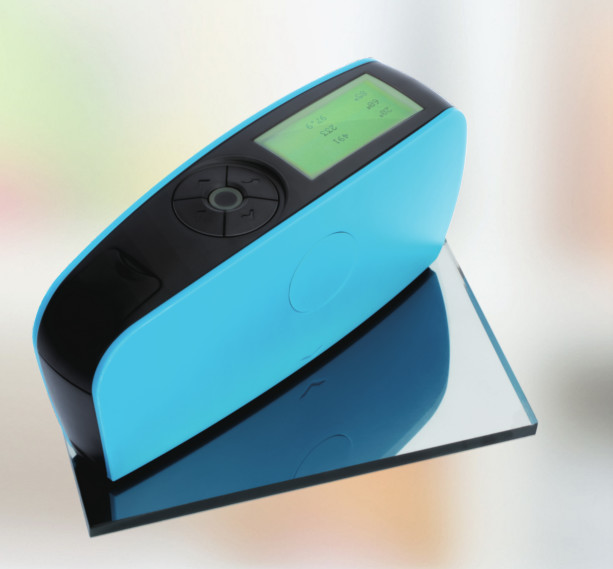

YG60 60° Precise Gloss Meter
YG series gloss meter is independently developed by Silk with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG60 60° Precise Gloss Meter test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
| YG Series Specification Parameter | |||
| Model | YG60S 60°Economic Gloss Meter | YG60 60°Accurate Gloss Meter | YG268 Tri-angle Gloss Meter |
| Measuring Angle | 60° | 60° | 20° 60°85° |
| Measuring Area | 60°: 0-200GU | 60°: 0-1000GU | 20°: 0-2000GU |
| 60°: 0-1000GU | |||
| 85°: 0-160GU | |||
| Division Value | 1GU | 0.1GU | |
| Measuring Modes | Basic mode | Basic mode; Statistic mode; Continuous mode; QC mode | |
| Measuring Time | 0.5S | ||
| Repeatability | 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
| Accurate | Conform with JJG696 second grade requirements of gloss meter | Conform with JJG696 first grade requirements of gloss meter | |
| Auto Power-off Time | 30s | Within 30s-120s | |
| Long-time Calibration | / | Automatically check and made the calibration | |
| Language | Chinese & English | ||
| Storage | / | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) | |
| Display | 2.3 inch white and black screen | ||
| Size | 160*52*84mm | ||
| Weight | About 300g | ||
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | ||
| Interface | USB | USB & Bluetooth 2.1 version | |
| PC Software | / | GQC6 QC software can printing testing report and with more extended functions | |
| Operation Temperature Range | 0-40℃(32-104° F) | ||
| Storage Temperature Range | -20-50℃(-4-122° F) | ||
| Humidity Range | < 85% RH, without condensation | ||
| Standard Accessories | User manual, calibration plate | USB cable, user manual, calibration plate, QC software | |
| Optional Accessories | Miniature printer | ||
| Notification: the technical parameter is only for reference | |||
