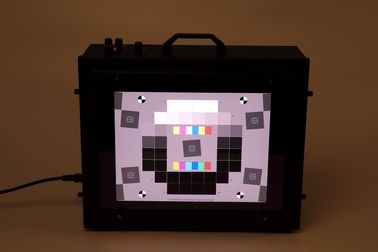

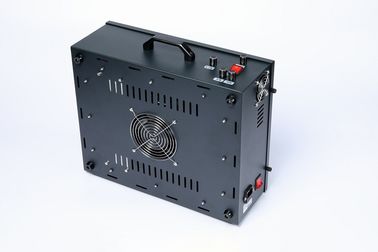

High Illumination Resolution Test Chart Led Light Box With Adjustable Color Temperature 2300k-9000k
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color Temperature | Adjustable From 2300K - 9000K | Illuminance | 0 - 120000LUX Adjustable |
|---|---|---|---|
| Life Span | More Than 10000 Hours | Light Panel Size | 29*22cm |
| CRI | ＞95% | Illuminance Evenness | ＞90% |
| Volume | 41*33*14.5cm | Power | AC100-240V, 50/60Hz |
| Light Device | LED Lamps Array | ||
| High Light | camera resolution chart,camera lens test chart |
||
Product Description
New product high illumination led light box with adjustable color temperature 2300k-9000k T259000 3nh
Product Overviews
3nh T259000 high illumination/adjustable color temperature transmission light box adopts development LED light and high illumination & adjustable color temperature to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.
Product Description
3nh T259000 high illumination/adjustable color temperature transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions.
T259000 adopts 3nh independent research and development LED light, and it has high illumination and adjustable color temperature for many camera industries use. Transmission light box offers a special light source to check the quality of camera.
Application
Transmission light box is widely used for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.
Performance Highlights
l Illumination uniformity >90%
l Color temperature range: 2300k-9000k
l LED illumination adjutable range 0-120000lux ( Illumination adjustable button includes high and low illumination. Among low illumination, there are two dimming knobs of coarse and thin to make dimming more accurate.)
l Stable light , no flicker, over 10000 hours lifespan
General information
l Power supply:AC110-240V, 2.2A, 50/60HZ. The maximum power consumption is 240W
l Environment required,Temperature 0-28℃,<RH85%
l Size:410L*145W*330Hmm
l Projection area:290L*220Hcm
l Test Chart Slot Size:360L*8W*285Hmm
l Net weight: 7.2kg
Detailed Images
Warranty
3nh T259000 high illumination/adjustable color temperature transmission light box has one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
| Parameters | T259000 |
| Color Temperature | 2300K ~ 9000K adjustable |
| Illuminance | 0 - 120000LUX adjustable |
| Lifespan | More than 10000 hours |
| Light Device | LED Lamp Array |
| Light Panel Size | 29*22cm |
| Color Rendition Index | ＞95% |
| Illuminance Evenness | ＞90% |
| Size | 41*33*14.5cm |
| Power Supply | AC100-240V, 50/60Hz |
| Apply Industry | Camera Imaging Performance Tests |
Frequently Asked Questions
1. Which models are the equivalent models to HC5100?
Answer: T259000 is equivalent to EQP-ITLB LED Transmissive Light Box.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
7. Do you supply the corresponding transmissive camera test charts?
Answer: Yes, of course we supply the transmissive camera test charts. We are also now the best manufacturer of camera test charts in China.
