Auto Testing 60 Degree Gloss Meter , Gloss Measurement Units 0 ~300Gu Reading Range
Product Details
| Measuring Angle: | 60° | Measuring Area(mm): | 60°:9x15mm |
|---|---|---|---|
| Measuring Range(GU): | 60°:0~1000 | Division Value: | 0.1GU |
| Tolerance: | ±0.2, ±0.2% | Data Port: | USB |
| Highlight |
paint gloss meter,portable gloss meter |
||
Product Description

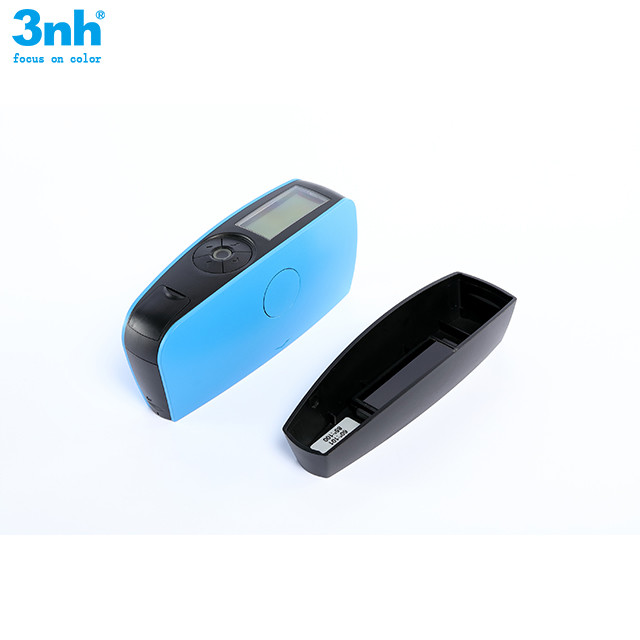

Auto Testing Machine Usage and 0 ~300Gu Reading Range ( gloss units ) 60 degree gloss meter YG60 Silk
YG series gloss meter is independently developed by Silk with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG60 60° Precise Gloss Meter test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Technical Specification
| Parameters | Single-angle Gloss Meter YG60 |
| Measuring Angle |
60° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 60°: 9x15mm |
| Measuring Range | 60°:0~1000GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability | 0-100GU 100-1000GU ± 0.2GU ± 0.2%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±0.2, ±0.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 2.3" |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 1pcs of No.5 dry cell battery more than 10000 times (within 8 hours) |
| Dimension | 160*52*84mm |
| Weight | 350g |
| Measuring Mode&Storage |
Basic Mode and Continuous Mode: 15000 Statistical Mode: 10000 QA Mode: 10000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |

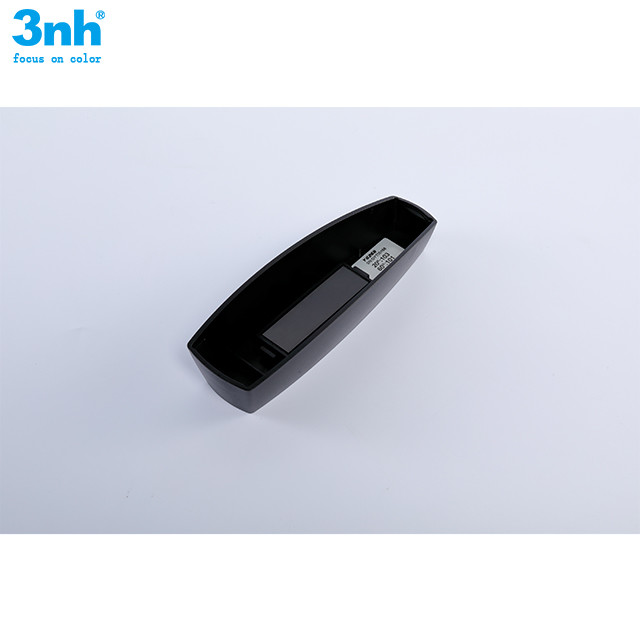

| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
Frequently Asked Questions
1. Which models are the equivalent models to YG60 Gloss Meter?
Answer: Our YG60 gloss meter is equivalent to BYK4561 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
