High Dynamic Range HDR Digital Camera Resolution Chart 36 Level Test Card YE0269
Product Details
| Brand: | Silk/Sineimage | Category: | Transparent |
|---|---|---|---|
| Ratio: | 16:9 | Size: | Custom Designs |
| Name: | Camera Resolution Test Chart | Feature: | High Accuracy |
| Highlight |
camera resolution chart,camera lens test chart |
||
Product Description
Silk High Dynamic Range (HDR) 36 Level Test Card Transparent Test Chart YE0269
| Model | YE0269 |
| Type | Transparent |
| Format | Custom Designs |
| Ratio | 16:9 |

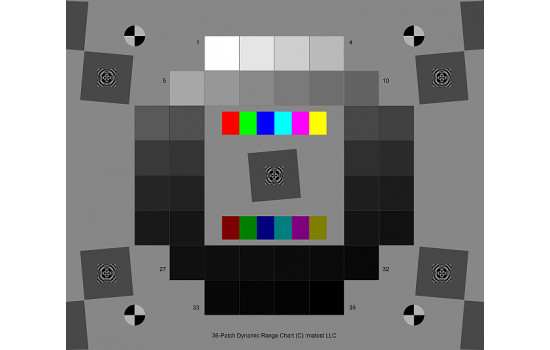

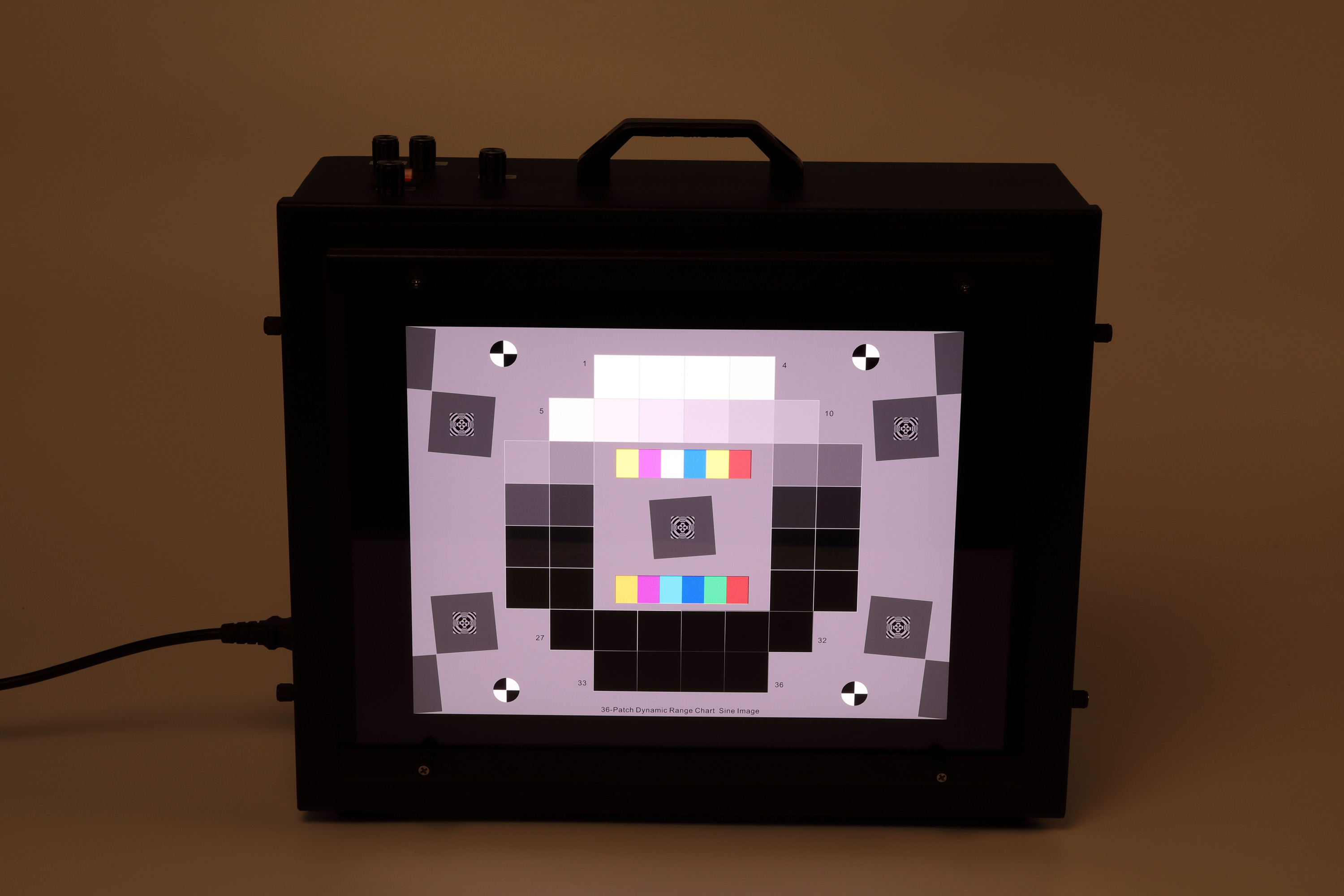

This Sineimage 36-Patch Dynamic Range Test Chart YE0269 Transparent has 36 low-noise density patches with density steps of approximately 0.1, for a density range of at least 3.2 (density from base to base + 3.1 minimum). A nearly circular patch arrangement ensures that vignetting has minimal effect on results. A CSV reference file with actual densities will be supplied. The chart has an active area of 197x235 mm (7.75x9.25 inches) on 203x254 mm (8x10 inch) film.
It also contains slanted edges in the center and corners with 4:1 contrast for measuring MTF. The edges have an MTF50 >= 16 cycles/mm, which is about 3 times better than the best inkjet charts. Registration marks make the regions easy to select. A neutral gray background helps ensure that the chart will be well-exposed in auto exposure cameras (compared to charts with black backgrounds, which are sometimes strongly overexposed).
It is supported by Stepchart, Multicharts, Multitest and can be used with the Dynamic Range postprocessor if several manual exposures are available. Dmax >= 3.4 is sufficient for camera phones and digital cameras with small pixel sizes, but high-end DSLRs generally have higher dynamic ranges (and also manual exposure), which makes them well suited for Dynamic Range.
This chart is produced with a high-precision LVT film recording process for the best possible density range, low noise, and fine detail.
Specifications
| Parameters | ISO12233 Enchanced Camera Resolution Test Chart |
| Size | Size customisable |
| Format | 16:9 / 4:3 |
| Type | Reflective/Transmissive |
| Material | Photographic Paper(Reflective), Film(Transmissive) |
Common Standard ISO 12233 Test Chart Size
| Model | Multiple | Size(cm) |
| NE-10-50A | 0.5X | 10×17.8cm |
| NE-10-100A | 1X | 20×36.6cm |
| NE-10-200A | 2X | 40×71.2cm |
| NE-10-400A | 4X | 80×142.4cm |
| NE-10-800A | 8X | 160×284.8cm |
Brief Introduction
1. We, Silk-Silk, now is the biggest and best manufacturer of Camera Test Charts in China.
2. We can make all kinds of test charts, such as ISO12233 Resolution Charts, Distortion Charts, Greyscale Charts, 18% Netral Grey Cards, SFR Charts, Dynamic Range Charts, and so on.
3. Both transmissive and reflective are OK.
4. Any customised charts are no problem, either.
5. Our test charts definitely can match with the charts of ESSER(IE) and Imatest, no matter in accuracy or in quality.
6. Compared with ESSER(IE) and Imatest, our advantages exist on not only the much better prices but also much better delivery time.
7. More and more world famous companies have already trusted us as their long-term supplier for camera test charts.
8. These companies include HUAWEI, Apple, OPPO, vivo, O-film, DJI, GoPro, Lenovo, Samsung, LG, Suny Optics, ZTE.
9. We can make some small samples for you to check and confirm first.
Pictures
Frequently Asked Questions
1. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments, gloss meters and camera test charts. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 3-7 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
