SineImage Standard E-SFR Resolution Test Chart Reflective Category High Accuracy

SineImage Standard ISO 12233:2014 E-SFR test chart compliant with the ISO standard

All SineImage ISO 12233:2014 E-SFR charts are fully compliant with the ISO standard. The Imatest eSFR ISO moduleprovides highly automated support for the new charts.


SineImage ISO 12233:2014 E-SFR charts are implementations of the Low Contrast Edge SFR (E-SFR) test chart illustrated in Section 6.1 and Annex Cof the ISO Standard Document. The charts come in three versions:

Standard: basic, no extra measurement features
Enhanced: extra squares, wedges, and color patterns when printed with technologies that allow color
Extended: similar to Enhanced, but with a 16:9 aspect ratio, suitable for HDTV and cinema

We currently offer these charts in inkjet format, with Enhanced versionsavailable as photographic prints. All SineImage ISO 12233:2014 E-SFR charts are fully compliant with the ISO standard. The Imatest eSFR ISO moduleprovides highly automated support for the new charts.

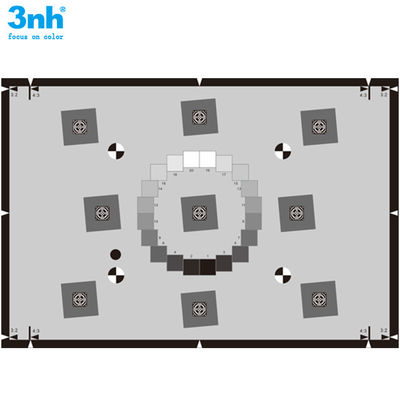

This chart, which has a 3:2 aspect ratio, is a "no-frills" implementation of the standard. For most work we recommend the Enhanced or Extended charts, which have additional edges for measuring performance near the image boundaries, as well as hyperbolic wedges and color patches (where the technology allows). These chartsmaintain full compliance with the standard.

The Imatest Standard ISO 12233:2014 E-SFR chart closely resembles the Low contrast E-SFR test chart illustrated in section 6.1 and Annex C of the ISO standard document, with a few differences, all of which are fully compliant with the ISO standard.

• A 20 patch OECF grayscale pattern* is used instead of the 16 patch version.
• The Focus Patterns in the centers of the squares are rectangular (to increase the MTF measurement area) and are designed to reduce interference with automatic edge detection.
• There are four registration marks instead of three to facilitate automated region detection. (Four features are required for a projective transform.)
• An additional mark above the lower-left registration mark is used for detecting chart orientation.
•

Remark: We support Any customized test charts only if you have high resolution image and size.

Specifications

Common Standard Size

Brief Introduction

1. We, Silk-Silk, now is the biggest and best manufacturer of Camera Test Charts in China.

2. We can make all kinds of test charts, such as ISO12233 Resolution Charts, Distortion Charts, Greyscale Charts, 18% Netral Grey Cards, SFR Charts, Dynamic Range Charts, and so on.

3. Both transmissive and reflective are OK.

4. Any customised charts are no problem, either.

5. Our test charts definitely can match with the charts of ESSER(IE) and Imatest, no matter in accuracy or in quality.
6. Compared with ESSER(IE) and Imatest, our advantages exist on not only the much better prices but also much better delivery time.

7. More and more world famous companies have already trusted us as their long-term supplier for camera test charts.
8. These companies include HUAWEI, Apple, OPPO, vivo, O-film, DJI, GoPro, Lenovo, Samsung, LG, Suny Optics, ZTE.

9. We can make some small samples for you to check and confirm first.

Pictures

Frequently Asked Questions

1. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments, gloss meters and camera test charts. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 3-7 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
