45/0 Optical Structure NS800 Handheld Paint Matching Spectrophotometer 45°/0 Optical Geometry
Product Details
| Optical Geometry: | 45°/0 | Sphere Size: | Φ58mm |
|---|---|---|---|
| Repeatibility: | ΔE*≤0.04 | Inter-instrument Agreement: | ΔE*≤0.2 |
| Wavelength Range: | 400-700nm | Measuring Aperture: | Φ8mm |
| Highlight |
paint matching spectrophotometer,handheld color meter |
||
Product Description

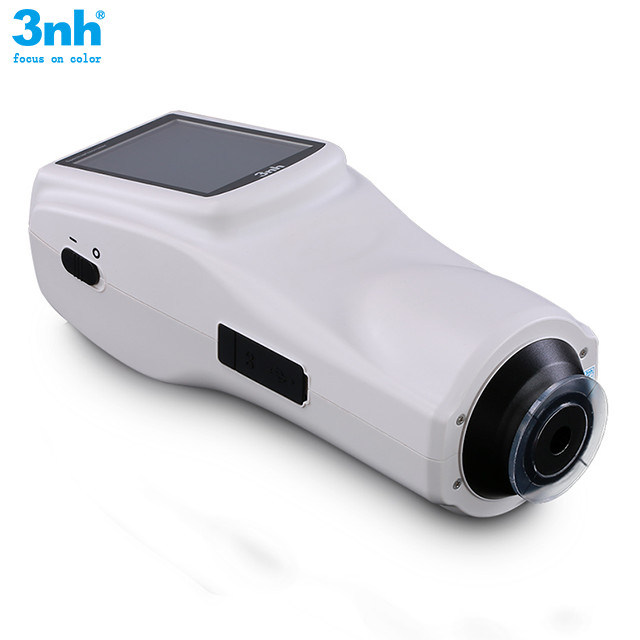

45/0 optical structure NS800 handheld spectrophotometer to replace byk color spectrophotometer 6801
Brief Introduction
Certificates: ISO9001:2008; CE; FCC; ROHS; TUV.
NS800 spectrophotometer is developed by Silk with independent intellectual property rights. It uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis.
NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.
Technical Specification
| Parameters | Spectrophotometer NS800 |
| Optical Geometry | 45°/0 |
| Inte-grating Sphere Size | Φ58mm |
| Measuring Aperture | Φ8mm |
| Repeatibility | ΔE*≤0.04 |
| Inter-instrument Agreement | ΔE*≤0.2 |
| Observer Angle | 2° & 10° |
| Wavelength Range | 400-700nm |
| Wavelength Pitch | 10nm |
| Reflectance Range | 0-200% |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v |
| Displayed Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Strength, Color Stain, Color Fastness |
| Illuminant | D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12 |
| Illuminant Device | Combined LED Light |
| Illuminant Lifespan | 5 years, More than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Data Storage | 1000 Standards, 15000 Samples |
| Data Port | USB |
| Display Size | TFT 3.5" |
| Touch-Screen | Yes |
| Working Temperature | 0~40℃(32~104℉) |
| Storage Temperature | -20~50℃(-4~122℉) |
| PC Software | SQC8 |
| Weight | 600g |
| Dimension | 90*77*230mm |
| Battery | 3200mAh Large Capacity Li-ion Battery |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap. |
| Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box |
Application Industry
Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.
Frequently Asked Questions

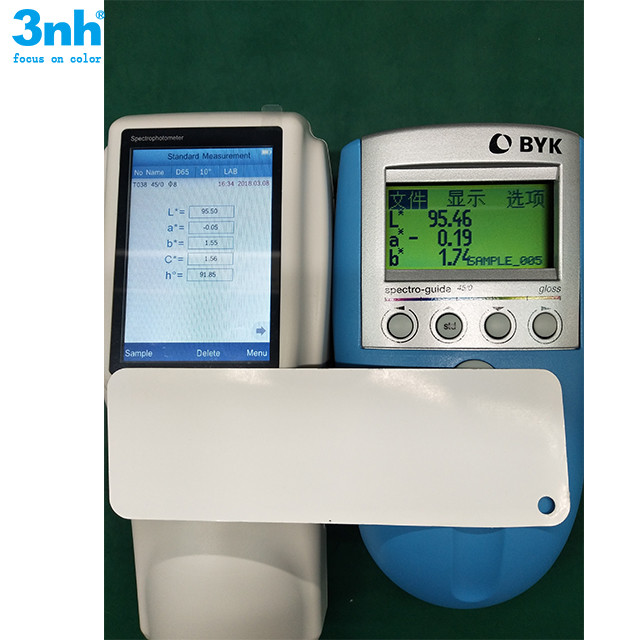

1. Which models are the equivalent models to NS800?
Answer: BYK 6801 Spectro is the equivalent models to Silk NS800 (About color measurement function).
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
